32056L Rev. 2 12/4/01 105SL Maintenance Manual Page 4-11
PREVENTIVE AND CORRECTIVE MAINTENANCE SECTION 4

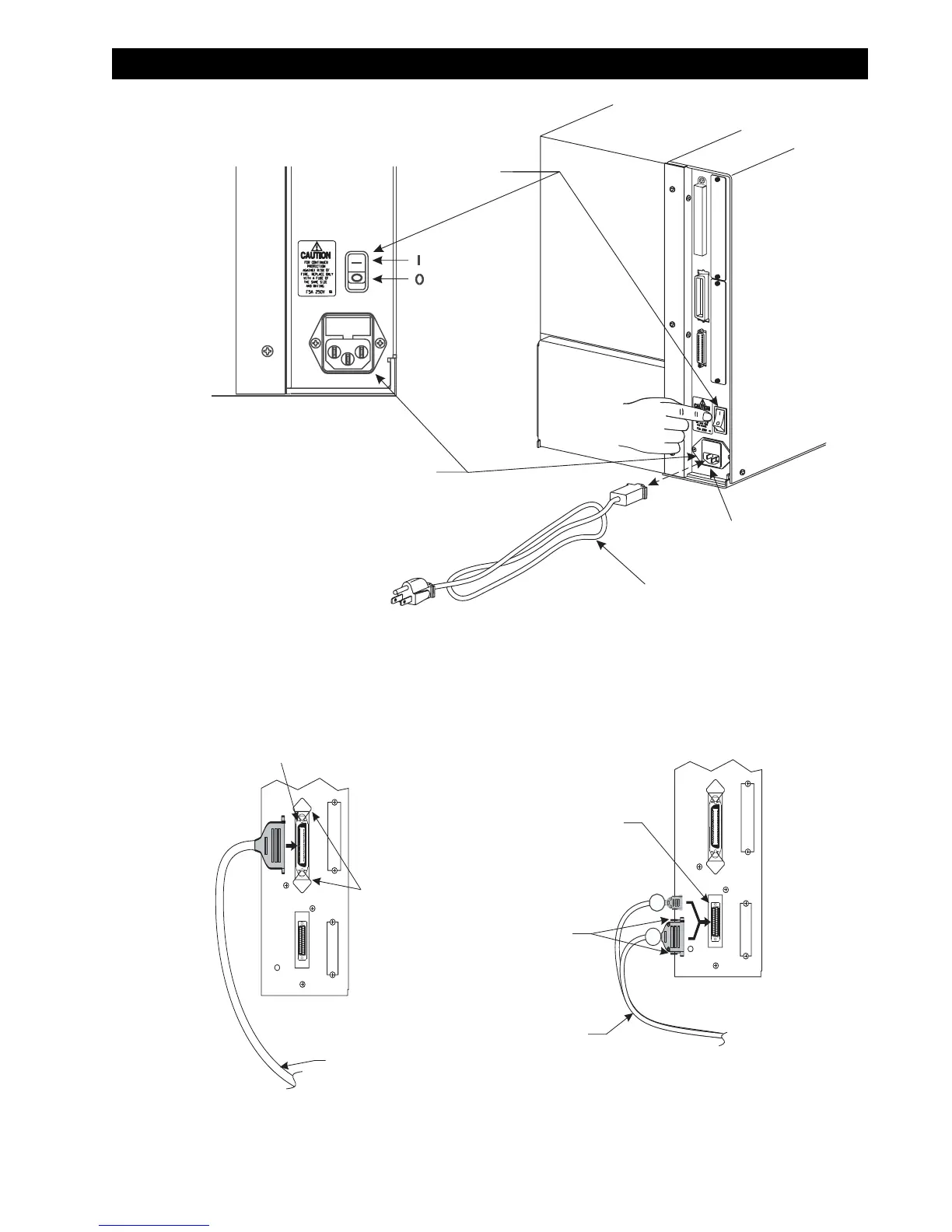

Figure 4-6. Power Switch and Power Cord Removal and Installation
Figure 4-7. Removing and Installing Data Cables
AC Power
Switch
=On
=Off
AC Power
Cord Connection
(See Note)
Note:
Depending on Configuration, the power entry module
may not have a user-replaceable fuse.
AC Power Cord
Power Socket
FUSE
Printer
Printer
Parallel Data
Port
Wire
Retainers
Parallel Data
Cable
36-pin
male
Serial Data
Port
(9-Pin or 25-Pin)
Serial Data
Cable
9
Screw
Fasteners
25
