RW Series Quick Start Guide
Connect The Printer With a Cable
You can connect your printer to a terminal or a PC us-
ing either RS232C or USB protocols. Refer to the Label
Vista™ application available on the RW product CD or at
www.zebra.com/software for help on setting up communi-
cations with your printer.
Connect the Printer by Infrared (IR) or Radio
If your RW series printer has the optional IR module, you can make
wireless line-of-sight connections to other IR equipped devices us-
ing the standard IrDA protocol.
If your RW series printer has a radio option, you can connect wire-
lessly to either a terminal or a wireless network (WLAN.) Refer to
the Mobile Printer Wireless Configuration Guide available on the
product CD or at
www.zebra.com/utilities for help on setting up
wireless communications with your printer.

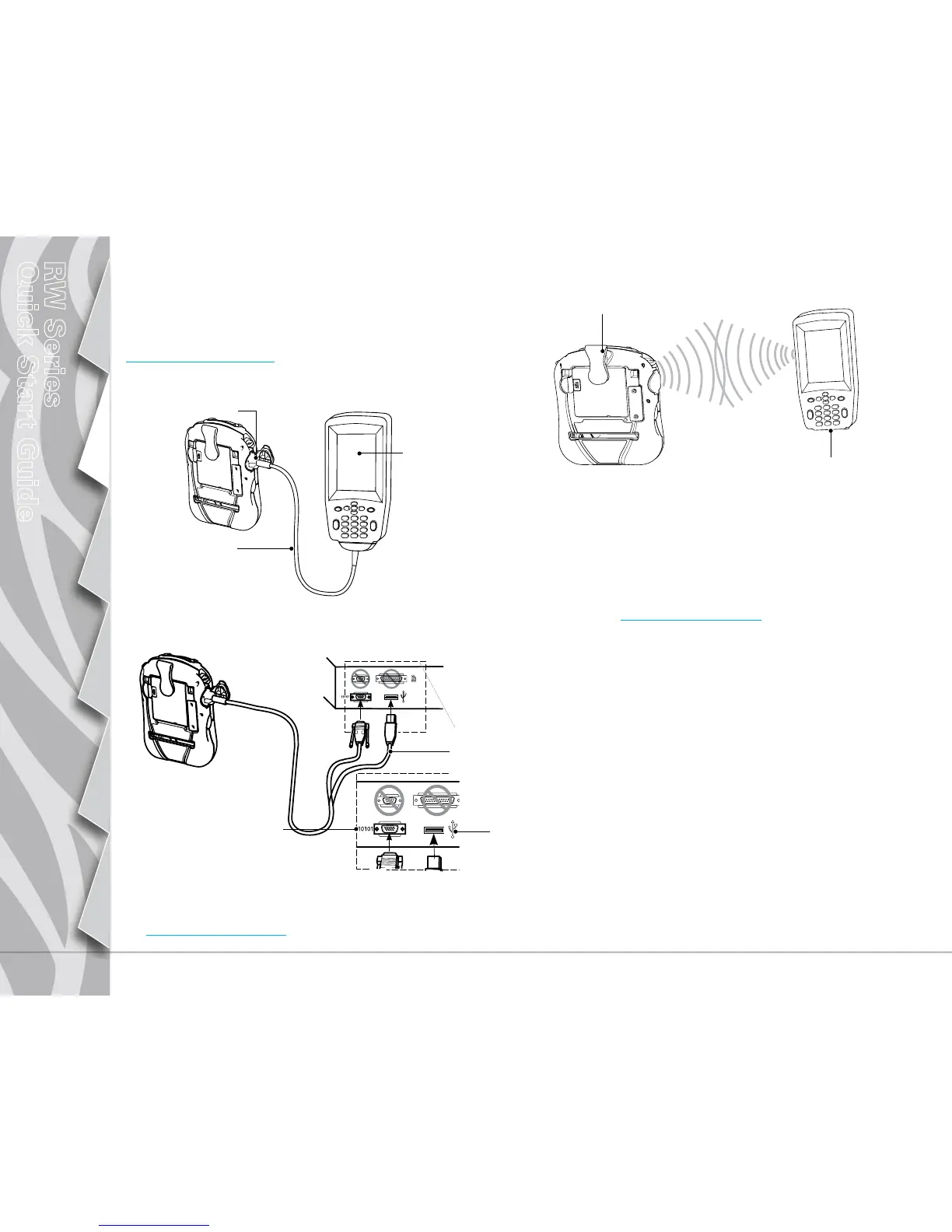

Cable Communications with a Terminal.
Cable Communications with a P.C.
If you are using a USB cable to connect to a PC you
may need to install the Zebra Universal Driver available
at:
www.zebra.com/drivers.
Connect the Printer
Communications
Cable to Terminal
Communications
Port
Terminal
RW Series Printer with
wireless option
Terminal with wireless
communications ability
RS-232C or USB Communications
Cable to Computer
Refer to Appendix A in the User Guide
for part numbers.
USB
Connector
RS232
Connector

Zebra RW 420 Specifications

General

Type	Battery
Product color	Blue
Battery voltage	- V
Battery capacity	- mAh
Number of battery cells	4

Weight and Dimensions

Weight	- g
