RW Series User Guide
Card Reader Options
The RW series can be equipped with optional Magnetic
Stripe and Smart Card readers. The magnetic stripe card
reader allows the user to swipe magnetic stripe cards such
as credit cards through a slot in the printer and then read and
process the data contained in the card.
In a similar manner the Smart Card reader can read the in-
formation written in the microchip embedded in Smart Cards,
and process the information in the chip in a variety of ways
depending on the printer’s application.
Magnetic Stripe Reader
The status of the Magnetic Stripe Reader (MSR) is indicated
in three possible ways:
• Reader status is displayed on the Main Menu LCD as
shown in Figure 16.
• The LCD backlight flashes to indicate status (3 flashes =
enabled, 2 flashes = disabled).
• Chimes indicates the reader status (3 chimes = enabled,
2 chimes = disabled).
Zebra RW 420
Signal:0%
Battery (ok)
Latch: ok Rdr
MENU
Zebra RW 420
Signal:0%
Battery (ok)
Latch: ok Rdr
MENU

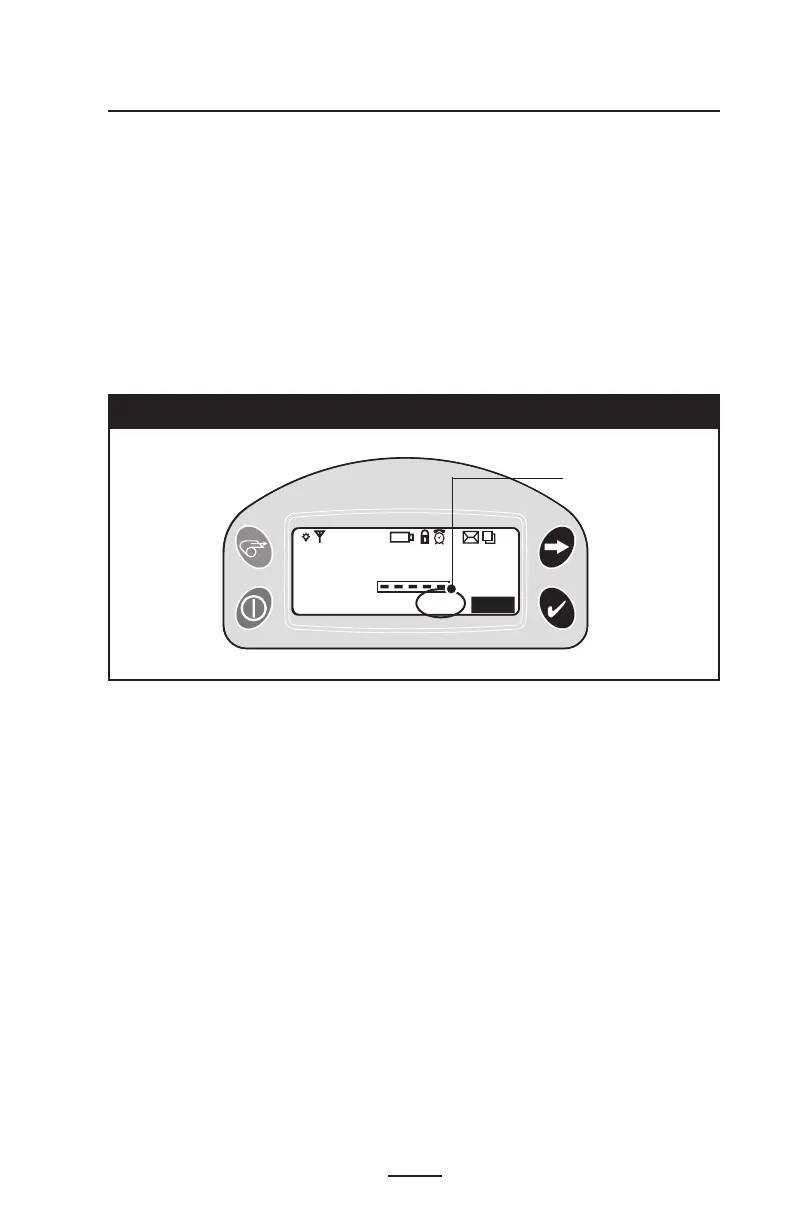

Figure 16: Magnetic Stripe Reader Status Indicator
continued
“Rdr” indicates
MSR is enabled.
