Printing in Peel-Mode
The optional dispenser allows
you to print in “peel-mode”
where the label backing follows
a different path and the labels
are presented one at a time for
subsequent placement.

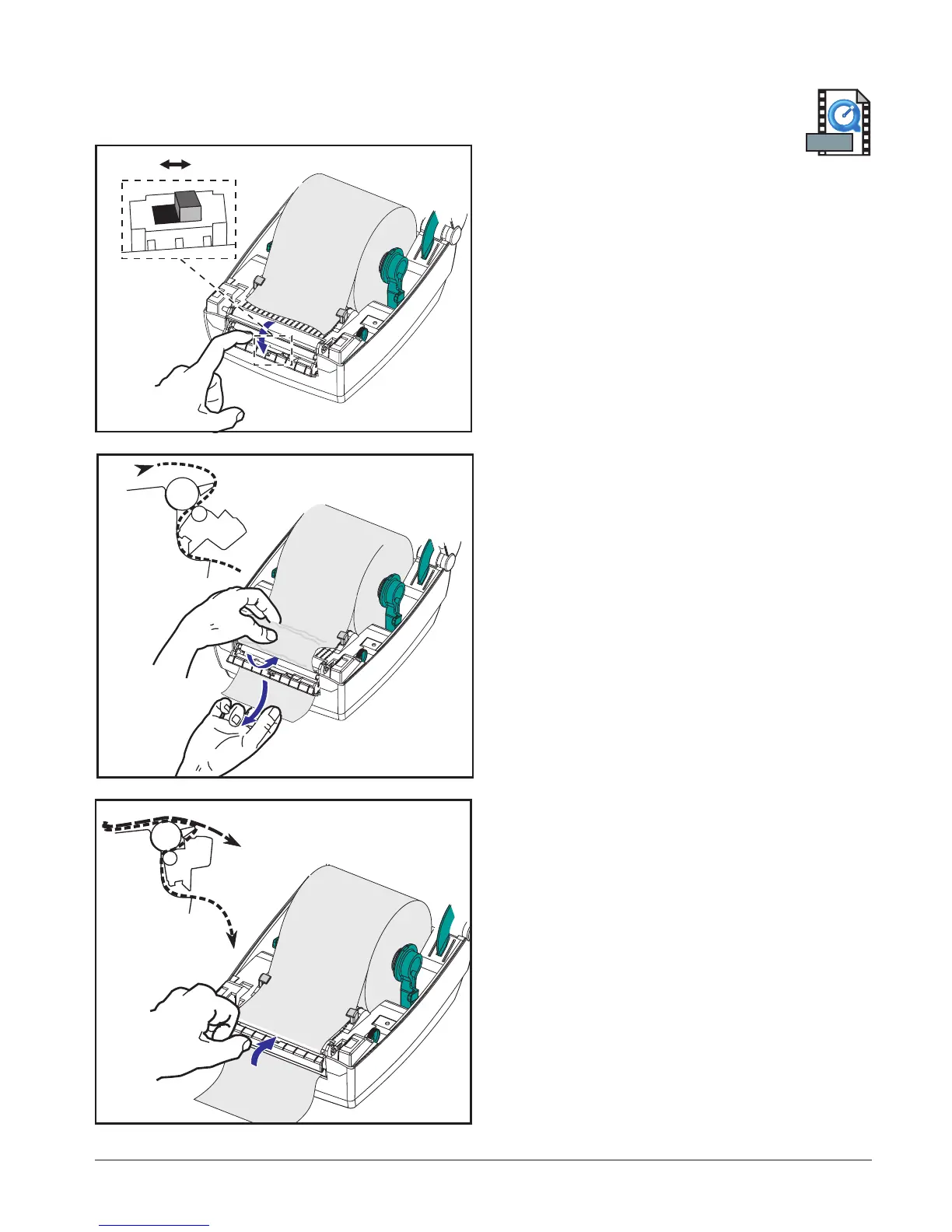

1. Remove several labels from the
backing material.
2. Open the top cover.
3. Open the dispenser door.
4. Switch on the label-taken sensor.
5. Insert the backing in front of the peel
bar and behind the peel roller.
6. Close the dispenser door.
7. Close the top cover.
8. Press the Feed button to advance the
label.
During the print job, the printer will peel
off the backing and present a single label.
Take the label from the printer so it will
print the next label.
980487-001A 23
