Replacing the Platen
Removal

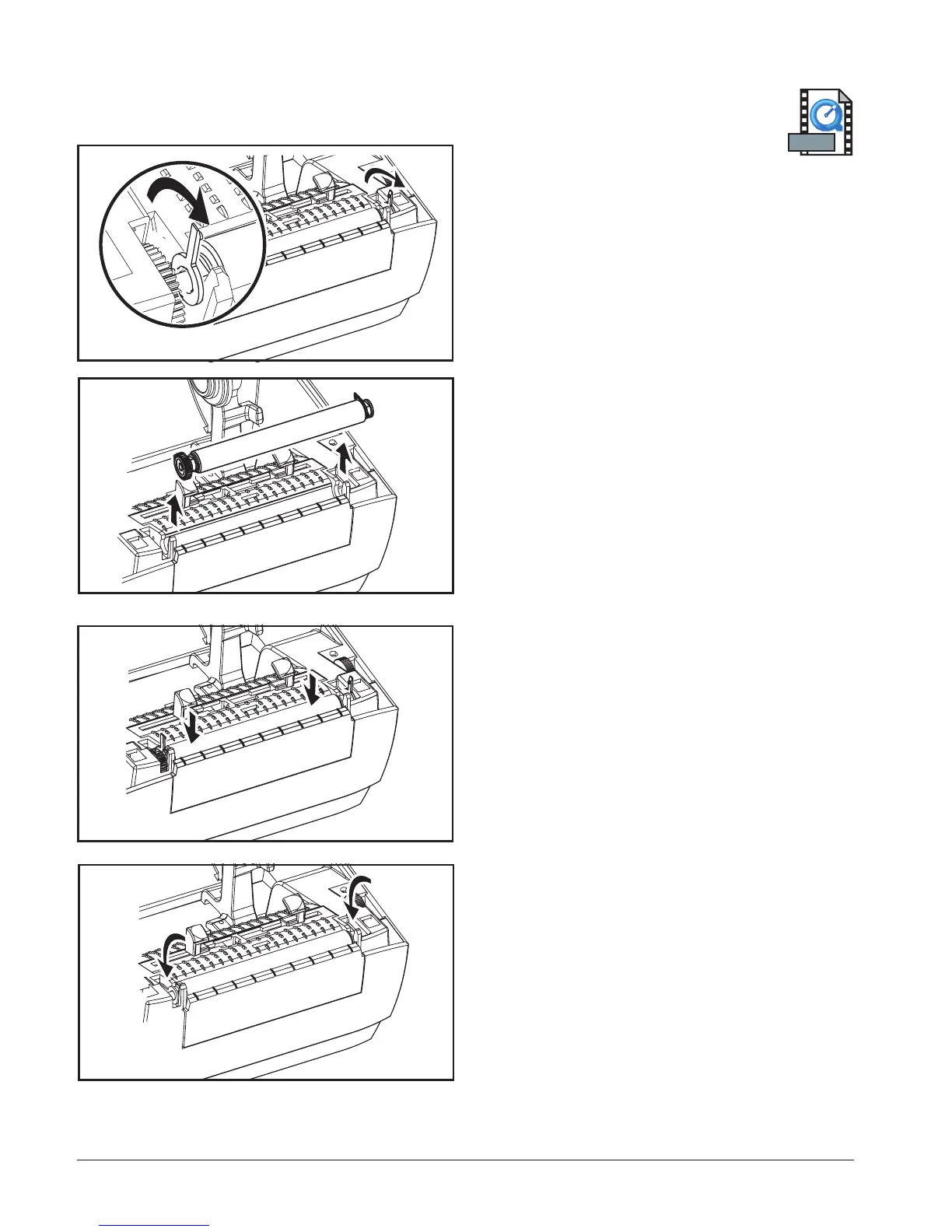

Open the printer and remove any media.
1. Using a pointed stylus (such as
tweezers, small slot-head screwdriver,
or razor-knife), unhook the tabs on the
right and left sides. Then rotate them
forward.
2. Lift the platen out of the printer’s
bottom frame.
Assembly
Make sure the right bearing is on the shaft
of the platen.
1. Align the platen with the gear to the
left and lower it into the printer’s
bottom frame.
2. Rotate the tabs back and snap them
into place.
