Mag Card Reader
The ZQ500 Series printers can be equipped with optional
Magnetic Stripe reader (p/n P1063406-036). The magnetic stripe
card reader allows the user to swipe magnetic stripe cards such
as credit cards through a slot in the printer and then read and pro-
cess the data contained in the card. The Mag Card reader is ca-
pable of reading all three (3) tracks simultaneously, but can be
configured to read two (2) tracks if desired. The reader also fea-
tures an audio indicator to alert users of a successful card swipe.
The Mag Card reader can be encrypted by working with Zebra’s
Professional Services team and getting a key loaded.
The Mag Card reader is installed by removing the existing front
bumper of the printer and replacing it with the Mag Card reader
(as illustrated in Fig. 19 below).

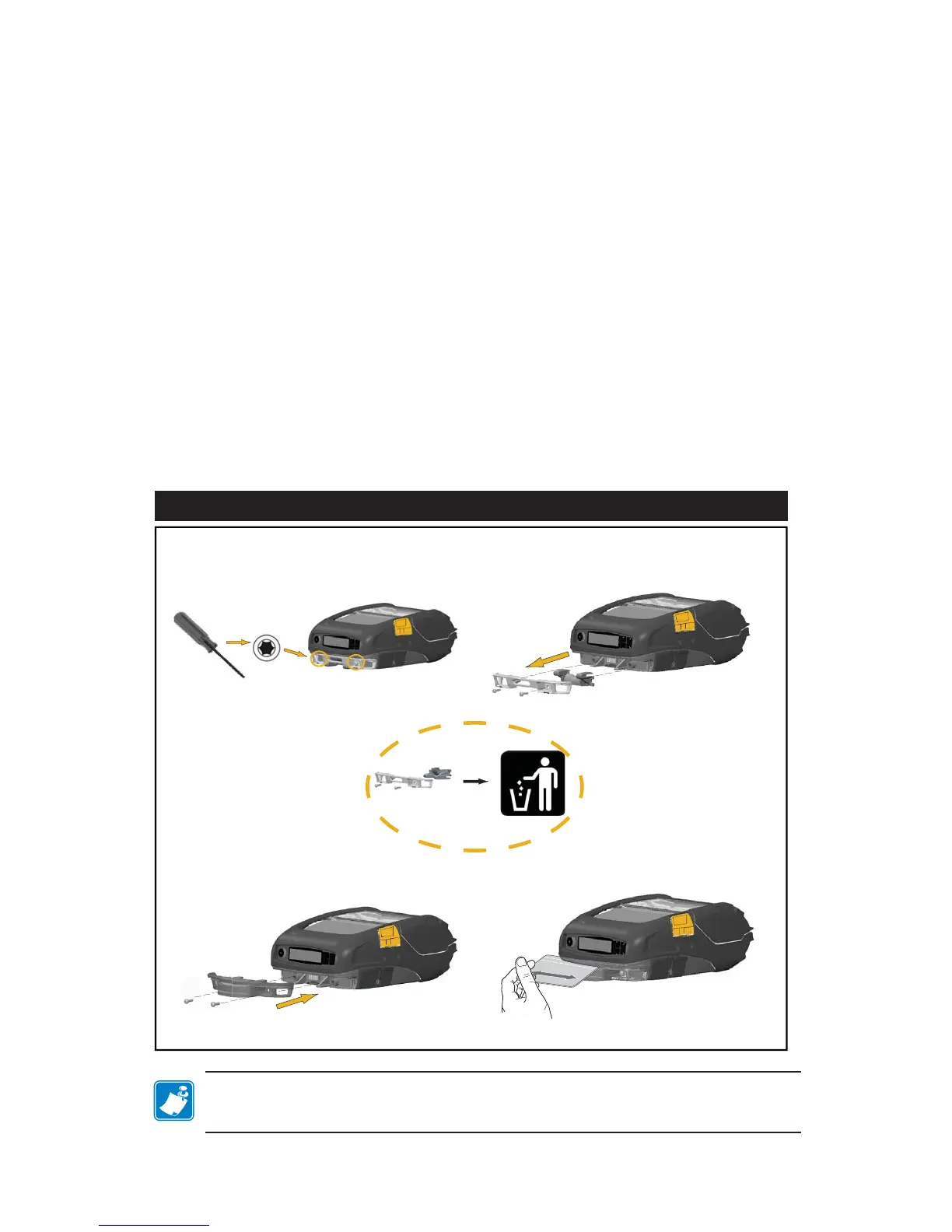

Figure 19: Installing the Mag Card Reader
1. 2.
3. 4.
Bi-directional
swiping capability
T4.7 +/- 1 in. lb.
Note • For a complete list of accessories, see ZQ500 Series Accessories
on Page 59.
