Introduction
Printer Components
Printer Components

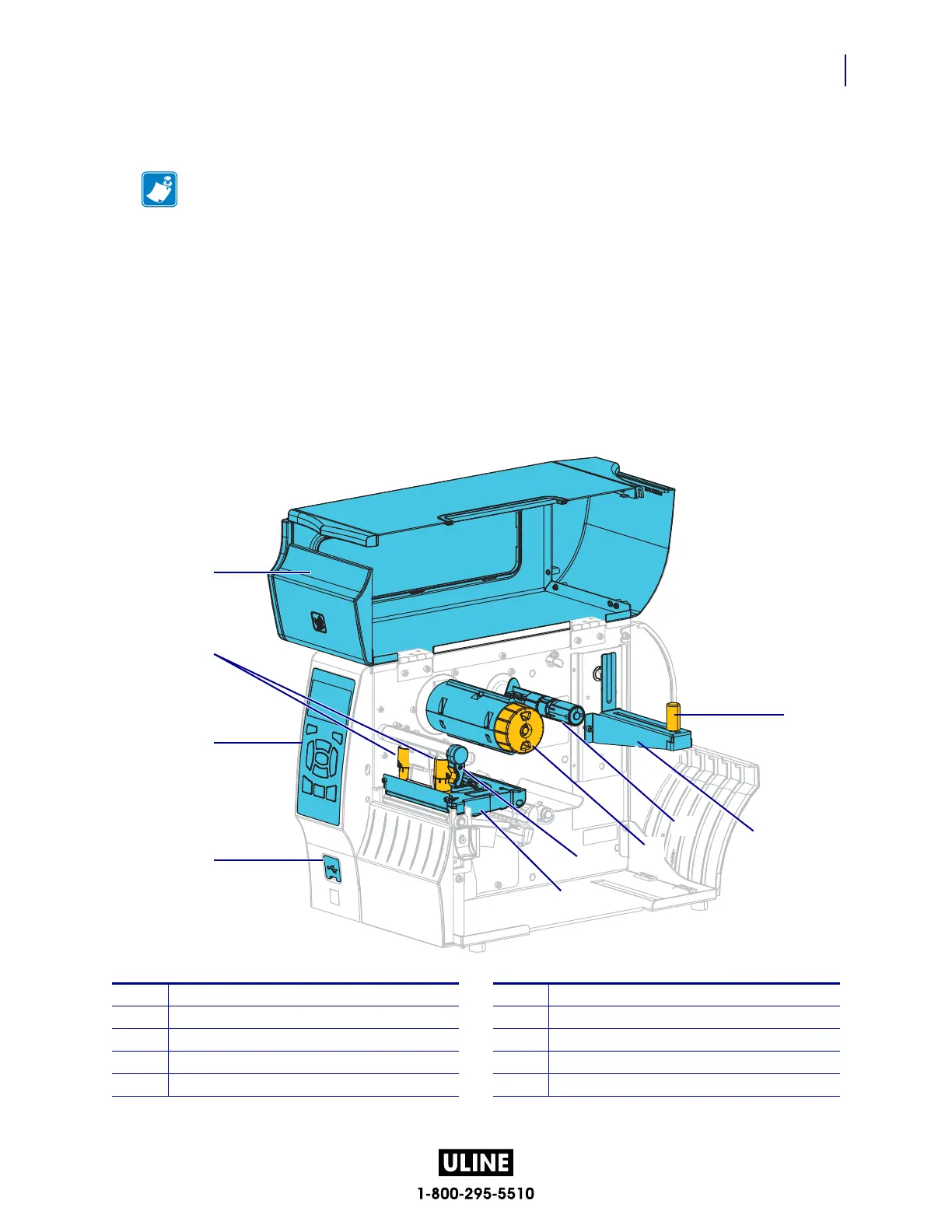

Figure 3 shows the components inside the media compartment of a standard printer.
Depending on the printer model and the installed options, your printer may look slightly
different. The components that are labeled are mentioned in procedures throughout this
manual.
Figure 3 • Printer Components
Note • The components inside your printer are color-coded.
• The touch points that you will need to handle are colored gold inside the printers and are
highlighted in gold in the illustrations in this manual.
• The components associated with the ribbon system are made of black plastic, while the
components associated with media are made of gray plastic. Those components and
others are highlighted in light blue in the illustrations in this manual as needed.
1
Media door
6
Printhead-open lever
2
Printhead pressure adjustment toggles
7
Ribbon take-up spindle*
3
Control panel
8
Ribbon supply spindle*
4
USB host port
9
Media supply hanger
5
Printhead assembly
10
Media supply guide
* This component appears only in printers that have the Thermal Transfer option installed.
1
3
4
2
10
9
8
7
6
5

Zebra ZT400 Series Specifications

General

Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 85% non-condensing
Print Width	4.09 in (104 mm)
Print Resolution	203 dpi
Max Print Speed	14 ips (356 mm/s)
Media Sensors	Transmissive and reflective
Connectivity	USB 2.0, Serial RS-232, 10/100 Ethernet, Bluetooth 4.1
Memory	256 MB RAM, 512 MB Flash
Media Width	4.5 in./114 mm
Media Length	39 in (991 mm)
Ribbon Length	450 m
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 104°F (5°C to 40°C)
Power Requirements	100-240 VAC, 47-63 Hz
Dimensions	19.50 x 10.75 inches (495 x 274 mm)
