Zebra ZT400 Series User Manual

1019 I H- 5120VN D
Introduction
Control Panel
16
Control Panel
The control panel indicates the printer’s current status and allows the user to control basic
printer operation.
6
13
12
9
8
11
10
1 2 3 4 5
14 15 16

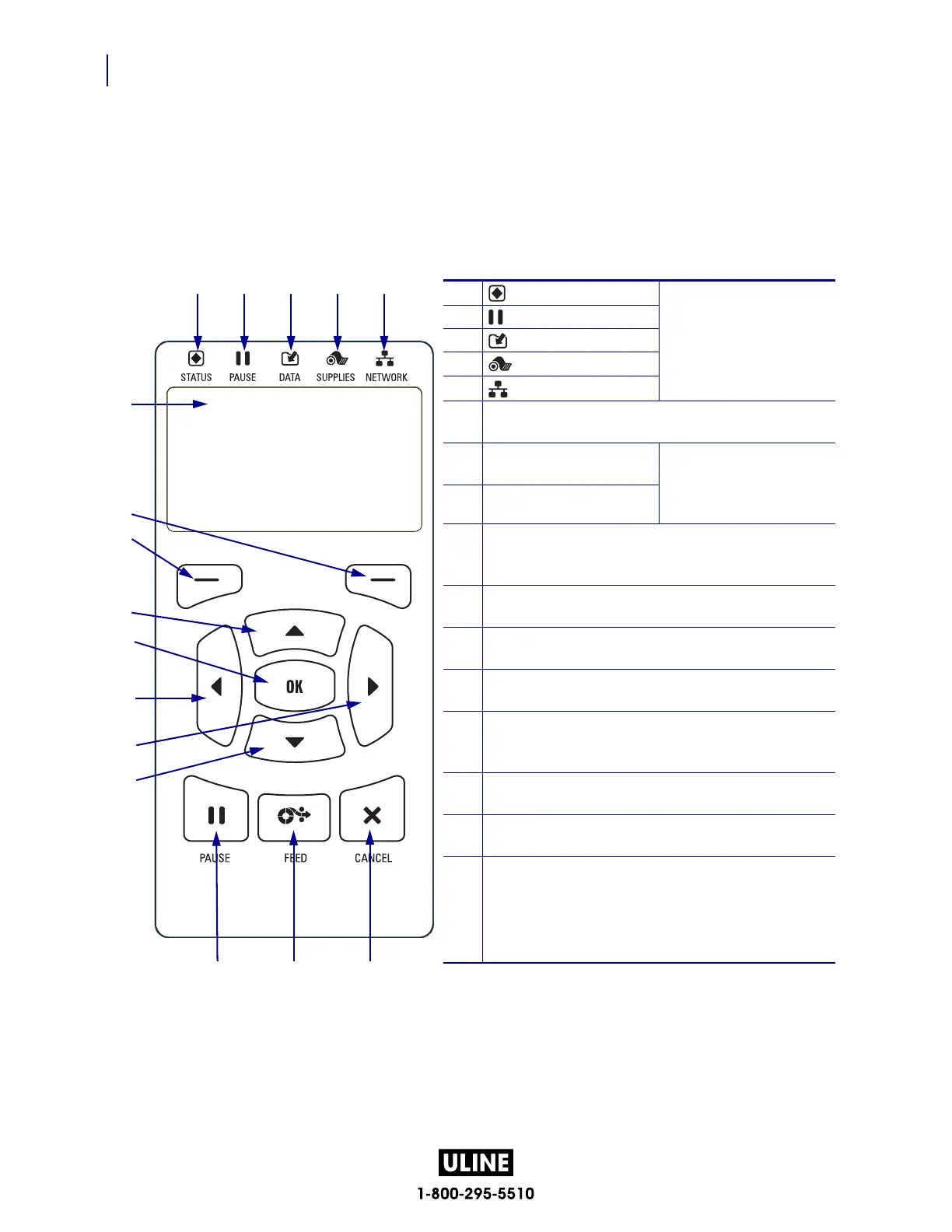

Figure 4 • Control Panel
7
1
STATUS light These indicator lights
show the current status
of the printer. For more
information, see
Table 15 on page 172.
2
PAUSE light
3
DATA light
4
SUPPLIES light
5
NETWORK light
6
The display shows the printer’s current status and
allows the user to navigate the menu system.
7
RIGHT SELECT
button
These buttons execute
the commands shown
directly above them in
the display.
8
LEFT SELECT button
9
The UP ARROW button changes the parameter
values. Common uses are to increase a value or to
scroll through choices.
10
The OK button selects or confirms what is shown
on the display.
11
The LEFT ARROW button, which is active only
in the menu system, navigates to the left.
12
The RIGHT ARROW button, which is active only
in the menu system, navigates to the right.
13
The DOWN ARROW button changes the
parameter values. Common uses are to decrease a
value or to scroll through choices.
14
The PAUSE button starts or stops printer operation
when pressed.
15
The FEED button forces the printer to feed one
blank label each time the button is pressed.
16
The CANCEL button cancels label formats when
the printer is paused.
• Press once to cancel the next label format.
• Press and hold for 2 seconds to cancel all label
formats.

Zebra ZT400 Series Specifications

General

Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 85% non-condensing
Print Width	4.09 in (104 mm)
Print Resolution	203 dpi
Max Print Speed	14 ips (356 mm/s)
Media Sensors	Transmissive and reflective
Connectivity	USB 2.0, Serial RS-232, 10/100 Ethernet, Bluetooth 4.1
Memory	256 MB RAM, 512 MB Flash
Media Width	4.5 in./114 mm
Media Length	39 in (991 mm)
Ribbon Length	450 m
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 104°F (5°C to 40°C)
Power Requirements	100-240 VAC, 47-63 Hz
Dimensions	19.50 x 10.75 inches (495 x 274 mm)
