Zebra ZT400 User Manual

5
Preparing the Printer for Use
4/8/14 ZT400™ Series Quick Reference Guide P1060608-003

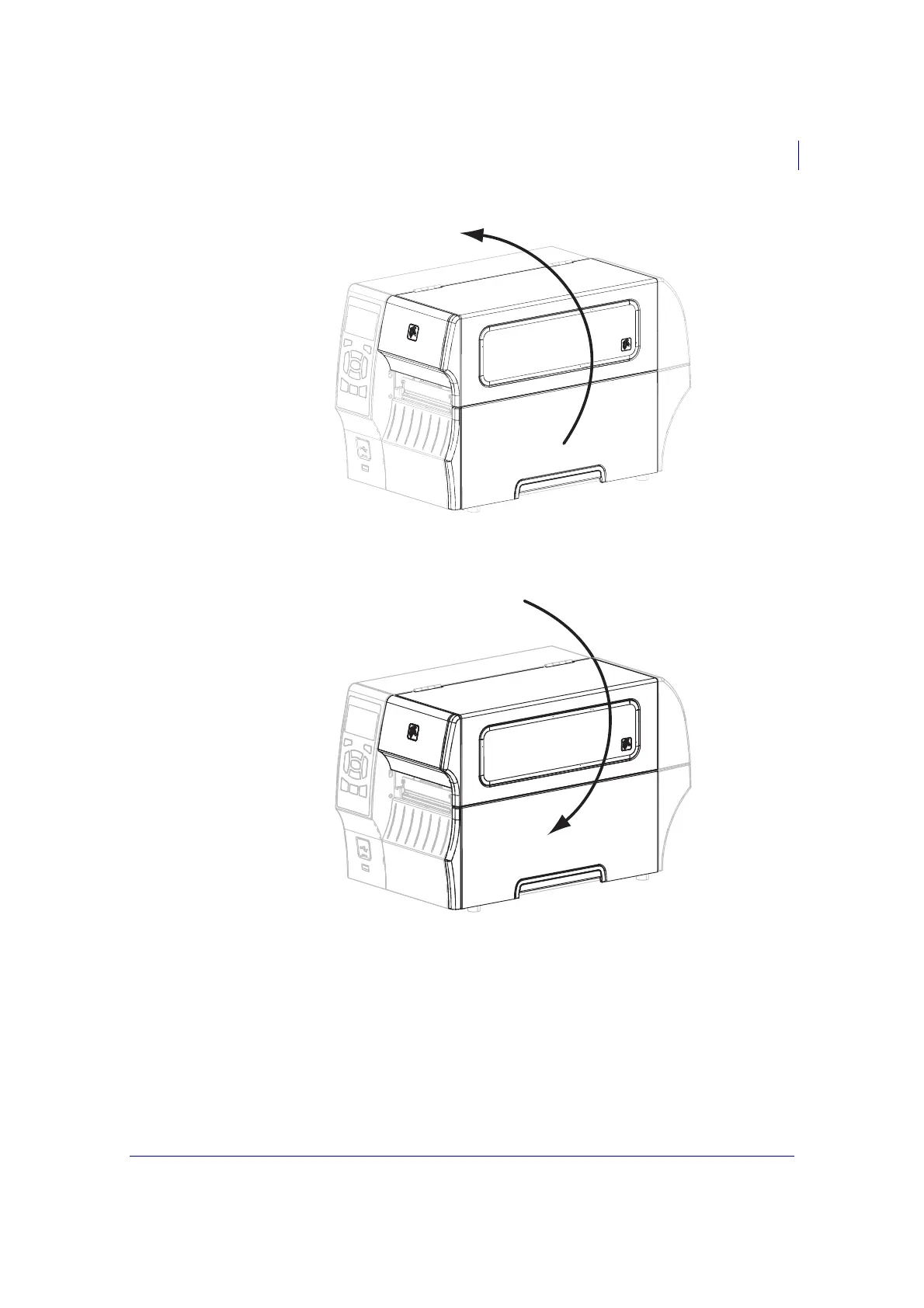

7. Raise the media door.
8. Load ribbon (if using Thermal Transfer mode) and media into the printer (see Load Media
and Ribbon on page 8).
9. Close the media door.

Zebra ZT400 Specifications

General

Print Method	Thermal Transfer and Direct Thermal
Supported Media Types	Continuous, Die-cut, Notch, Black-mark
Print Width	104 mm (4.09 in)
Print Resolution	203 dpi/8 dots per mm, 300 dpi/12 dots per mm optional
Max Print Speed	356 mm per second (14 ips)
Memory	512 MB Flash
Connectivity	USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth
Media Sensors	Reflective, Transmissive
Operating Temperature	0° to 40° C (32° to 104° F)
Media Width	19.4 mm to 114 mm (0.75 in to 4.5 in)
Media Length	991 mm (39 in)
Ribbon Length	450 m
Storage Temperature	-40º F to 140º F/-40º C to 60º C
Weight	16.33 kg (36 lbs)
Power Requirements	100-240 VAC, 50/60 Hz
Ribbon Width	51 mm to 110 mm (2.00 in to 4.33 in)
