Zebra ZXP 7 series User Manual

2: Installation and Setup
Loading Cards
P1036101-001 Zebra ZXP Series 7 Card Printer User’s Manual 11

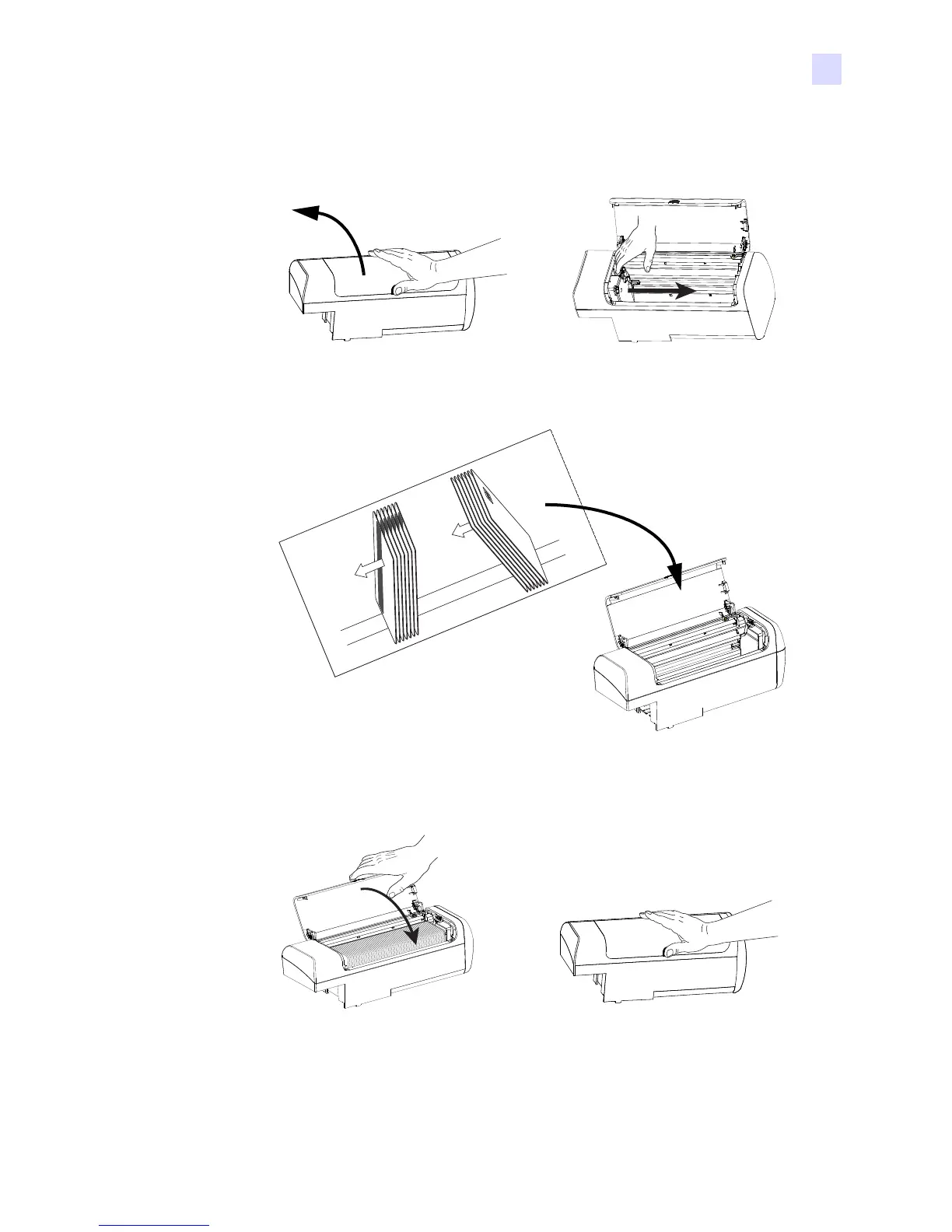

Step 5. Open the Feeder Cartridge Door, and slide the Card Stack Pusher all the way to the
right, until it locks in place.
Step 6. Place the card stack in the Feeder Cartridge in the correct orientation shown below.
Step 7. For optimum performance, ensure that the cards are fully seated; then close the
Feeder Cartridge Door.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
