Zebra ZXP 7 series User Manual

2: Installation and Setup
Loading the Laminate
P1036101-001 Zebra ZXP Series 7 Card Printer User’s Manual 21

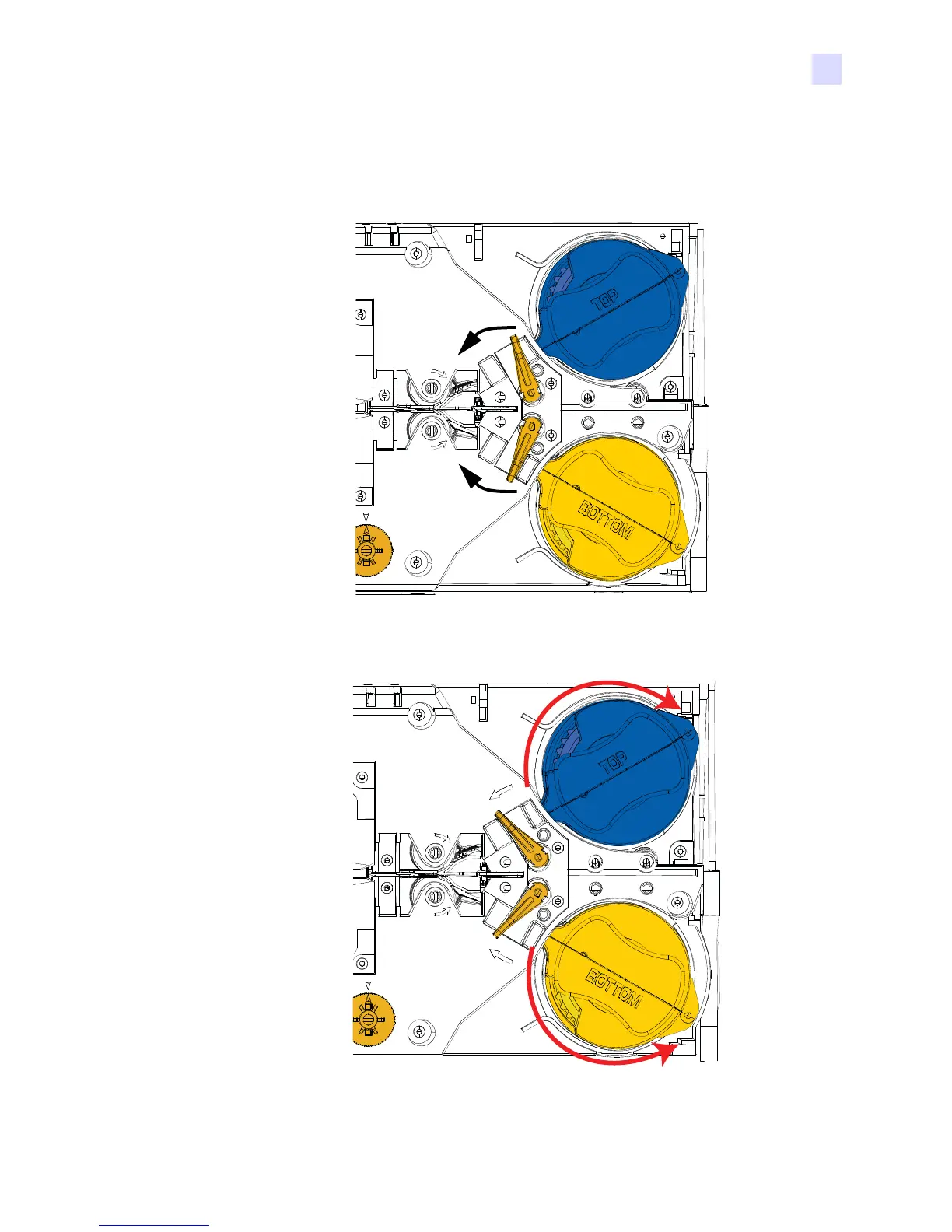

Removing the Laminate Cassette(s)
Step 1. Rotate the locking lever maximum in the direction indicated in the figure below.
Step 2. Rotate the cassette to the mechanical stop in the direction indicated below.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
