Zenith A20A22D - Connect Antenna Only to TV

Locate the Antenna/Cable jack on
the back of your Entertainment
Machine.
Connect the cable that runs from
the wall directly to this jack,
according to the diagram to the
right.
Remove the back of the remote
and put in two AAA batteries.
Plug in your TV. Do not plug it
into a switched outlet. Your
Entertainment Machine is
designed to operate on household
current, 120-volt 60 Hertz AC. Do
not attempt to operate it on DC
Current.
Go to page 8 to Auto Program
your Entertainment Machine.
206-3371-A
INSTALLATION STANDARDPAGE 4
Connect
off-air
antenna your
Entertainment
Machine

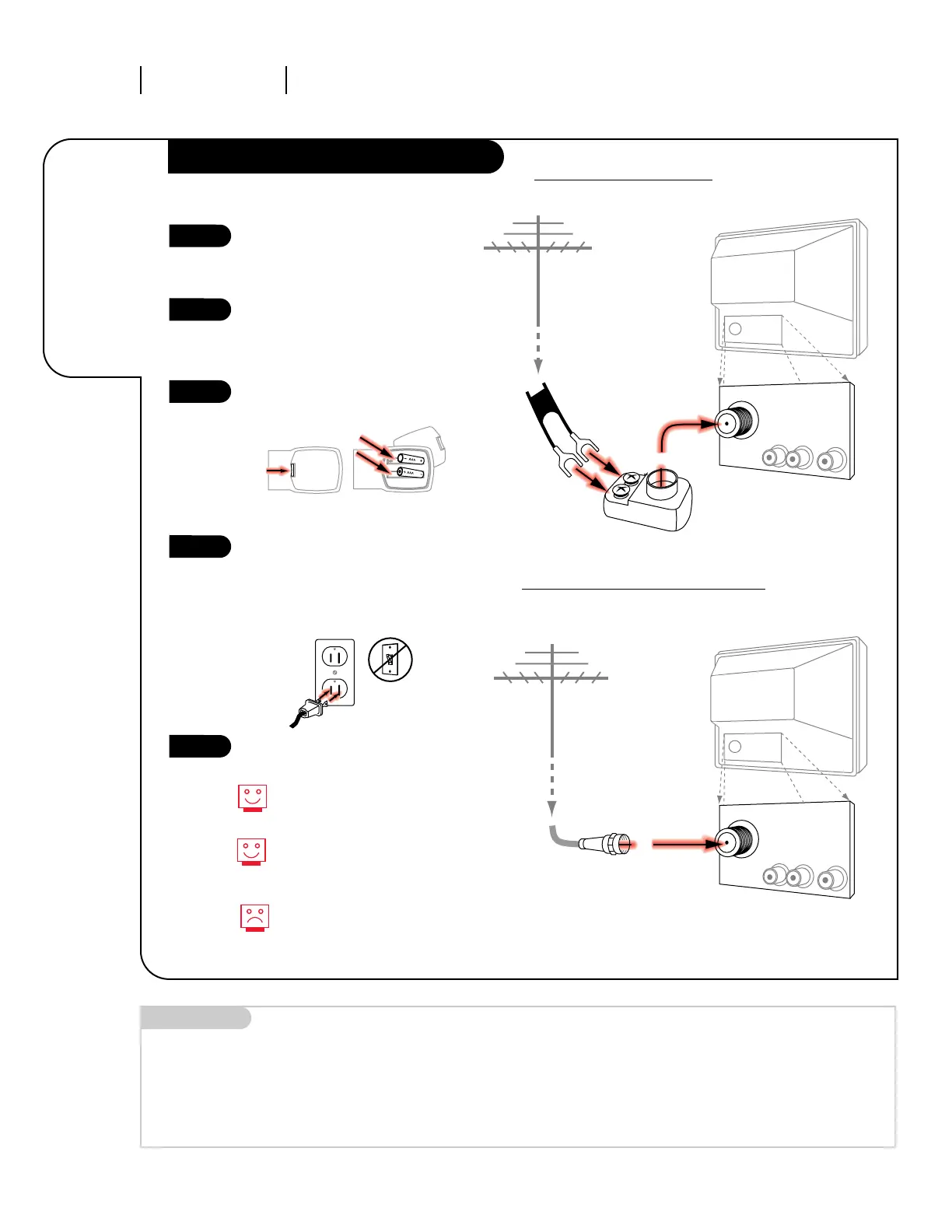

Hook Up Your Antenna to the TV
RF coaxial wire
(75ohm)
Antenna
TV back
TV back panel
(expanded view)
Antenna
Cable
TV back
Flat wire
(300 ohm)
Antenna
300/75 ohm
Adapter
TV back panel
(expanded view)
Antenna
Cable
Audio In
Video
Audio In
Video
If you have a 75 ohm RF cable,
then you don’t need any adapters!
Remember, when screwing RF
cables onto jacks, clockwise tight-
ens, and counterclockwise loosens.
A 300 to 75 ohm adapter
is not included with your Zenith
Entertainment Machine.
back of
remote
1
2
3
4
300 TO 75 OHM
ADAPTER
Mini glossary
75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire
sticking through the middle, and it screws onto the threaded jack on the back of your TV.
A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long with two
screws on one end and a round opening with a wire sticking out on the other end.
5
Flat wir
e antenna to TV
Antenna to TV with coaxial wire
