Zenith B25A76R - B25 A76 R;B27 A76 R

CM151 5-12 CA - EXPLODED VIEWS

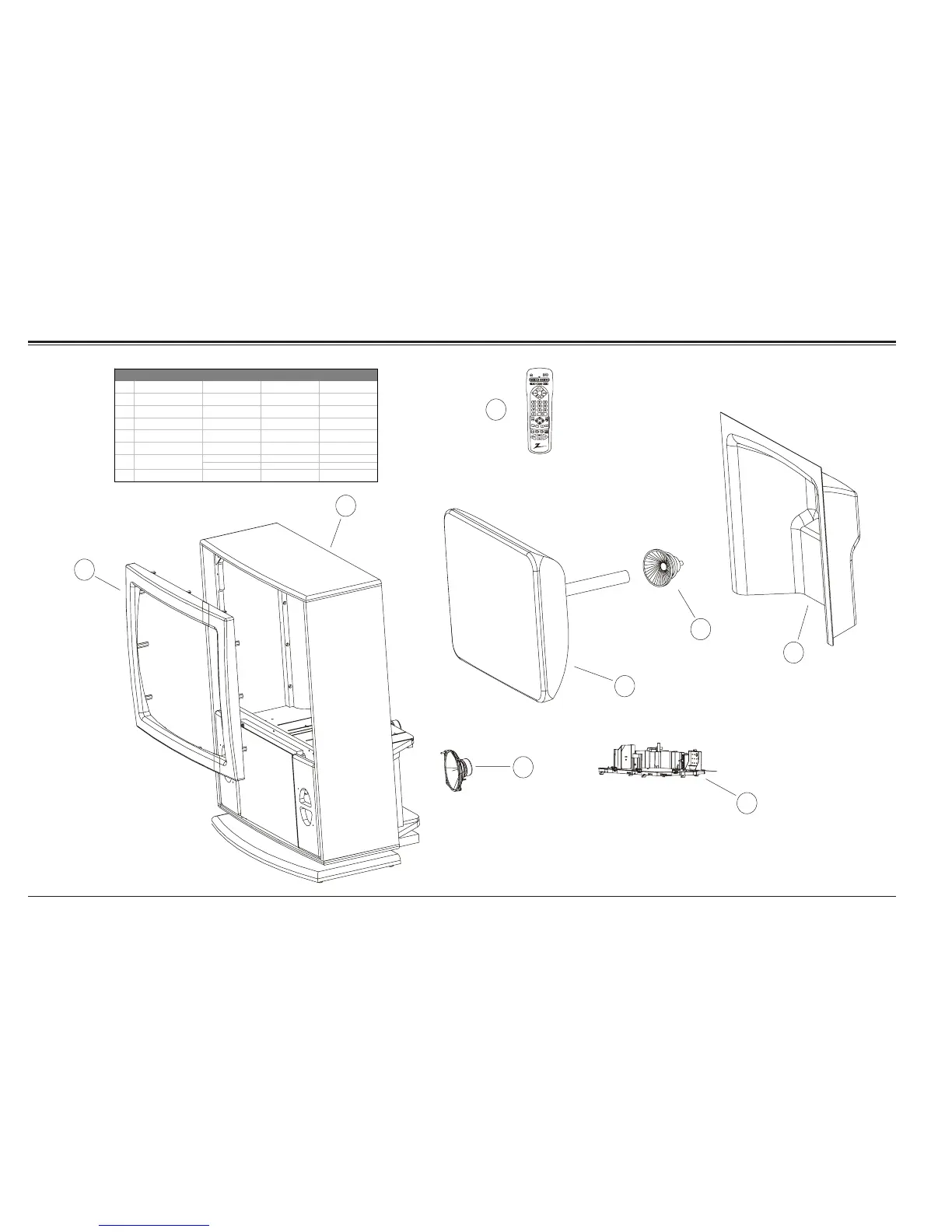

25/27V Console Set Exploded View
1
2
8
5
4
6
7
3
MBR3447Z
124-00233
REF DESCRIPTION B25A76R B27A76R B27A76R5
1 ESCUTCHEON 057-09067-08 057-09055-42 057-09055-42
2 MAIN CABINET 014-12333 014-12327 014-12327
3 SPEAKER 049-01302-03 049-01334-02 049-01334-02
4 CRT ASSEMBLY A63AGDO1X A63AGDO1X A63AGDO1X
5 YOKE 095-04456-05 095-03797-05 095-03797-05
6 BACK COVER 014-11639-19 014-11639-20 014-11639-20
COMPONENT COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR
8 REMOTE CONTROL 124-00233 124-00233 124-00233
7 MAIN MODULE
