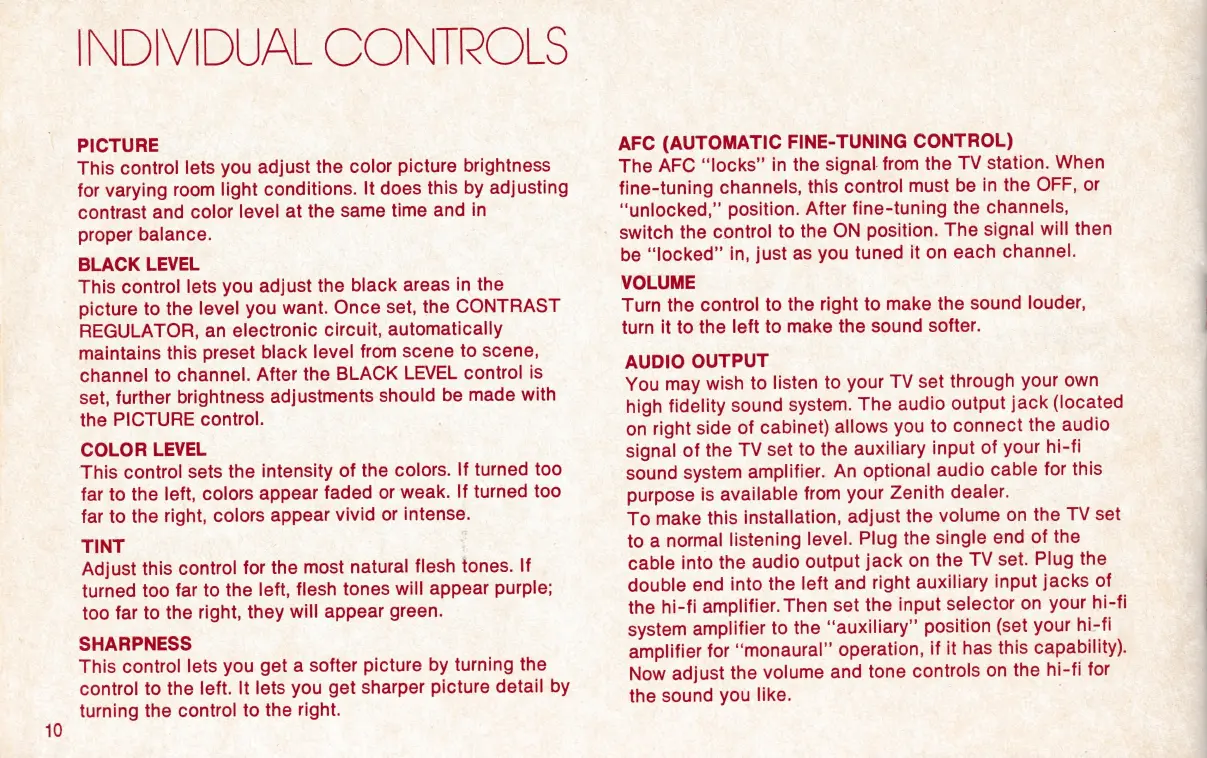

INDIVIDUAL CONTROLS
This control lets you adjust the color picture brightness
for varying room light conditions. It does this by adjusting
contrast and color level at the same time and in
proper balance.
BLACK LEVEL
This control lets you adjust the black areas in the
picture to the level you want. Once set, the CONTRAST
REGULATOR, an electronic circuit, automatically
maintains this preset black level from scene to scene,
channel to channel. After the BLACK LEVEL control is
set, further brightness adjustments should be made with
the PICTURE control.
COLOR LEVEL
This control sets the intensity of the colors. If turned too
far to the left, colors appear faded or weak. If turned too
far to the right, colors appear vivid or intense.
TINT
Adjust this control for the most natural flesh tones. If
turned too far to the left, flesh tones will appear purple;
too far to the right, they will appear green.
SHARPNESS
This control lets you get a softer picture by turning the
control to the left. It lets you get sharper picture detail by
turning the control to the right.
AFC (AUTOMATIC FINE-TUNING CONTROL)
The
AFC
“locks”
in
the
signal
from
the
TV
station.
When
fine-tuning
channels,
this
control
must
be
in
the
OFF,
or
“unlocked,”
position.
After
fine-tuning
the
channels,
switch
the
control
to
the
ON
position.
The
signal
will
then
be
“locked”
in,
just
as
you
tuned
it
on
each
channel.
VOLUME
Turn the control to the right to make the sound louder,
turn it to the left to make the sound softer.
AUDIO OUTPUT
You
may
wish
to
listen
to
your
TV
set
through
your
own
high
fidelity
sound
system.
The
audio
output
jack
(located
on
right
side
of
cabinet)
allows
you
to
connect
the
audio
signal
of
the
TV
set
to
the
auxiliary
input
of
your
hi-fi
sound
system
amplifier.
An
optional
audio
cable
for
this
purpose
is
available
from
your
Zenith
dealer.
To
make
this
installation,
adjust
the
volume
on
the
TV
set
to
a
normal
listening
level.
Plug
the
single
end
of
the
cable
into
the
audio
output
jack
on
the
TV
set.
Plug
the
double
end
into
the
left
and
right
auxiliary
input
jacks
of
the
hi-fi
amplifier.
Then
set
the
input
selector
on
your
hi-fi
system
amplifier
to
the
‘‘auxiliary”
position
(set
your
hi-fi
amplifier
for
“monaural”
operation,
if
it
has
this
capability).
Now
adjust
the
volume
and
tone
controls
on
the
hi-fi
for
the
sound
you
like.
:
