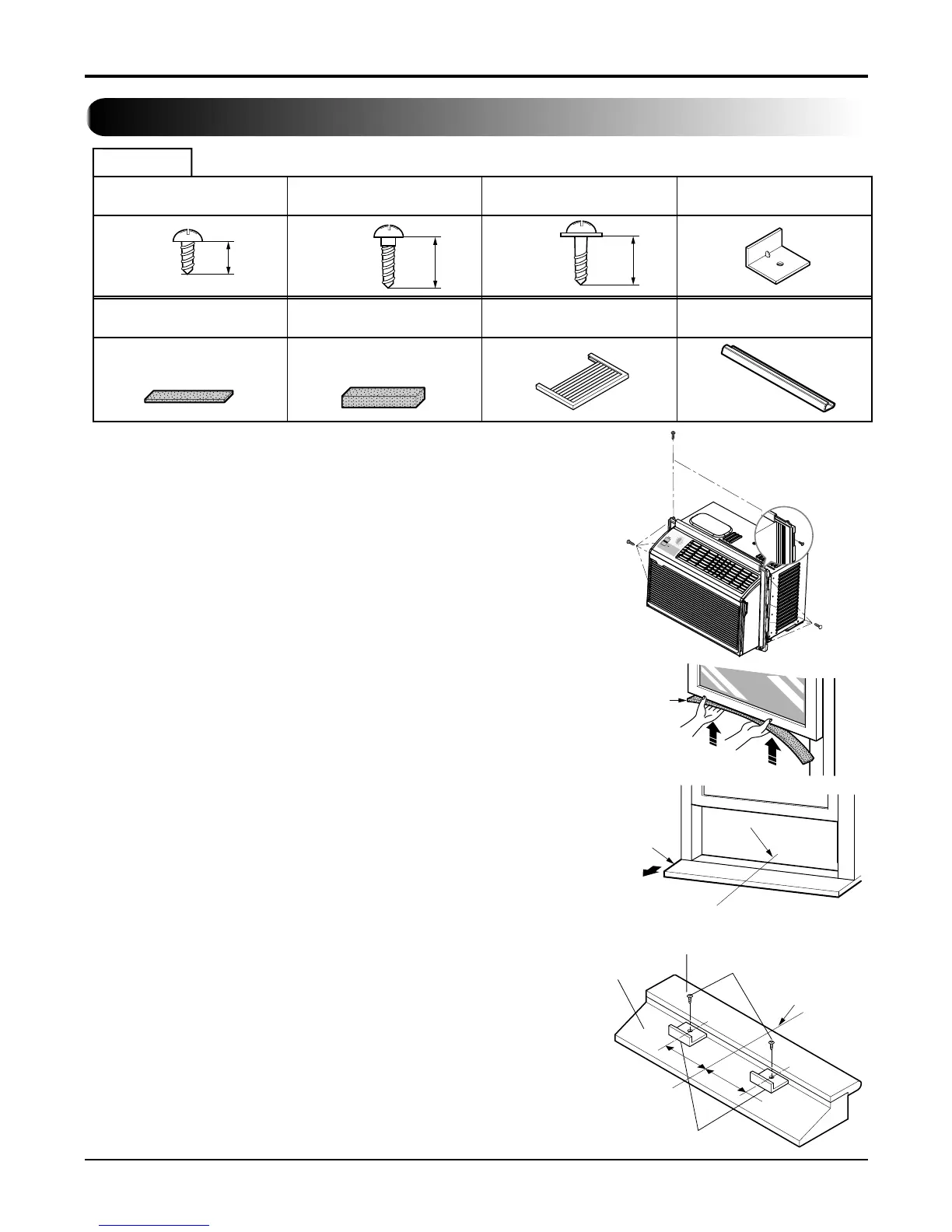

10 Room Air Conditioner
Installation
Installation Kits Contents(some Models)
Before Installation (Some Models Including
Installation Kit)
1. Insert the guide panels into the guides of the air conditioner.
Fasten the curtains to the unit with screws (TYPE A), as shown
Figure. 4.
2. Cut the adhesive-backed seal strip (TYPE E) to the window
width.
Remove the backing from the seal strip and attach the seal strip
to the underside of the bottom window. (Figure. 5
)
Start Installation (Some Models Including
Installation Kit)
1. Locating Unit in Window
Open the window and mark center line with pencil on the center
of the inner sill, as shown in Figure. 6.
2. Attach L Bracket
a. Install the L brackets behind the inner window sill, with the
short side of bracket as shown. Use the 2 screws (TYPE A)
provided.
b. The bracket helps to hold unit securely in place. Be sure to
place bracket edge flush against back of inner sill. See
Figure.7.
HARDWARE
TYPE F: 1EA
(SASH SEAL)
(Not adhesive backed)
TYPE E: 1EA
(SEAL STRIP)
(Adhesive backed)
TYPE G: 2EA
(GUIDE PANEL)
TYPE D: 3EA
(
L
BACKET)
TYPE A: 14EA
(SHORT SCREW)
mm01
TYPE B: 2EA
(WOOD SCREW)
m
m6
1
TYPE H: 1EA
(UPPER GUIDE)
m
m
6
1
TYPE C: 2EA
(WOOD SCREW)
ROOM SIDE
CENTER LINE
INNER SILL
SEAL STRIP
(TYPE E)
OUTSIDE
INSIDE
L
BRACKET
OUTER SILL
INNER SILL
TYPE A
7.5"
7.5"
CENTER LINE
Figure 5
Figure 6
Figure 7
Figure 4
TYPE A
TYPE A
TYPE A
To Next Page
