Zenith ZW5000 - Schematic Diagram; Wiring Diagram

Service Manual 19

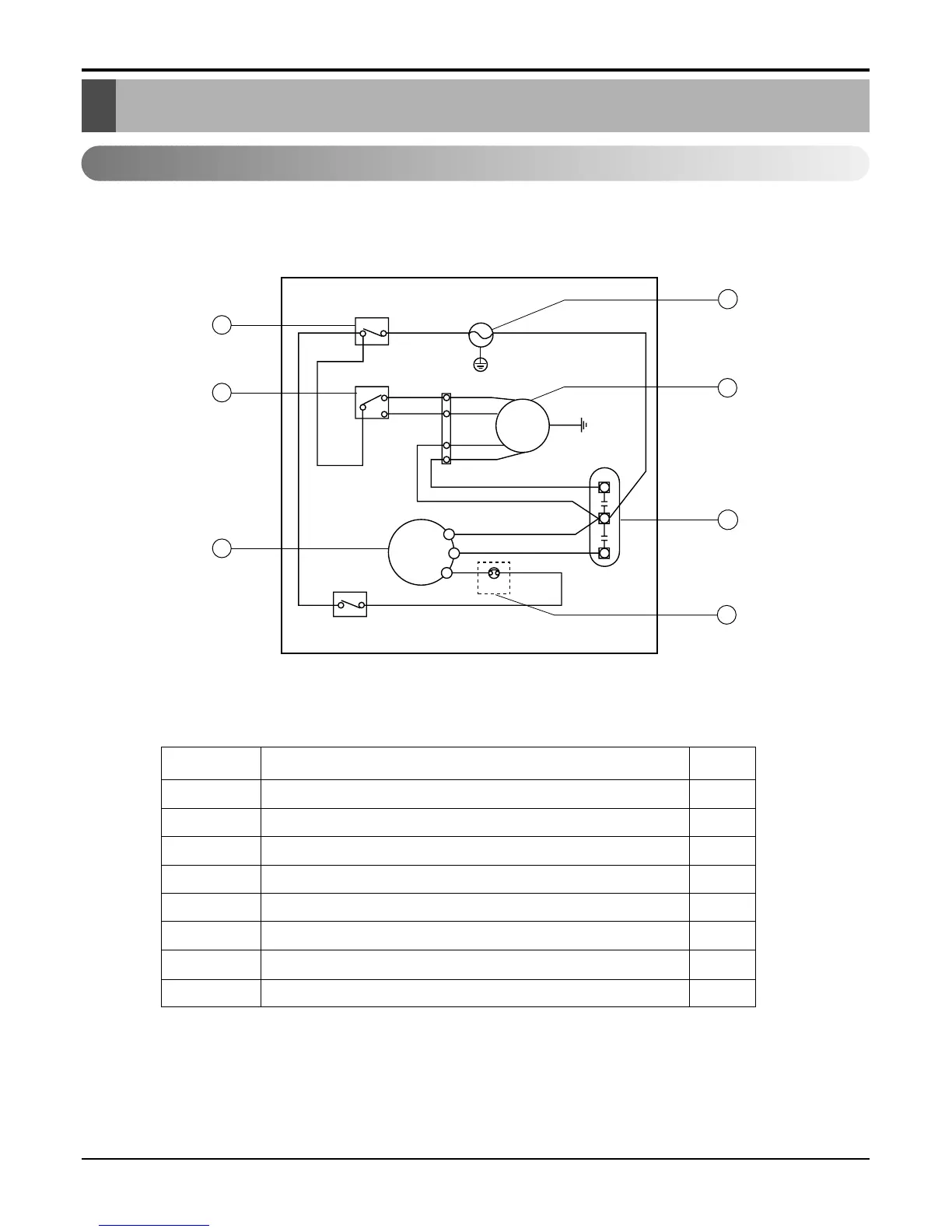

Schematic Diagram
Schematic Diagram
Wiring Diagram
5
1
2
6
7
3
4
POWER INPUT
WH(BL)
SWITCH(1)
SWITCH(2)
HI
BL
LO
BK
RD
BK
BK
GN/YL
(GL)
GN/YL
(GL)
RD
OR(BR)
OR(BR)
BK
RD
BL
YL
CAPACITOR
F
C
H
MOTOR
COMP
OLP
THERMOSTAR
YL
2
2
3
R
S
C
1
1
(Ribbed)
• MODEL:
HBLG5004, HBLG5004T4
DESCRIPTION & NAME
POWER CORD ASSY
FAN MOTOR
COMPRESSOR
ROCKER SWITCH-1
ROCKER SWITCH-2
THERMOSTAT
CAPACITOR
OVERLOAD PROTECTOR
Q'TY
1
1
1
1
1
1
1
1
REF. NO
1
2
3
4
5
6
7
8
