12 Room Air Conditioner
Operation
Feature
Insulation Resistance Test
About the Controls or the Air Conditioner
• DESIGNED FOR COOLING ONLY
• POWERFUL AND INCREDIBLE COOLING
• TOP-DOWN CHASSIS FOR THE SIMPLE INSTALLATION AND SERVICE
• BUILT-IN ADJUSTABLE THERMOSTAT
• WASHABLE ONE-TOUCH FILTER
• COMPACT SIZE
1. Unplug the power cord and connect a jumper between 2 pins (black and white).
2. The grounding conductor (green or green and yellow) is to be open.
3. Measure the resistance value with an ohm meter between the jumpered lead and each exposed metallic part
on the equipment at all positions [except Off] of the ROCKER SWITCH.
4. The value should be over 1 MΩ.

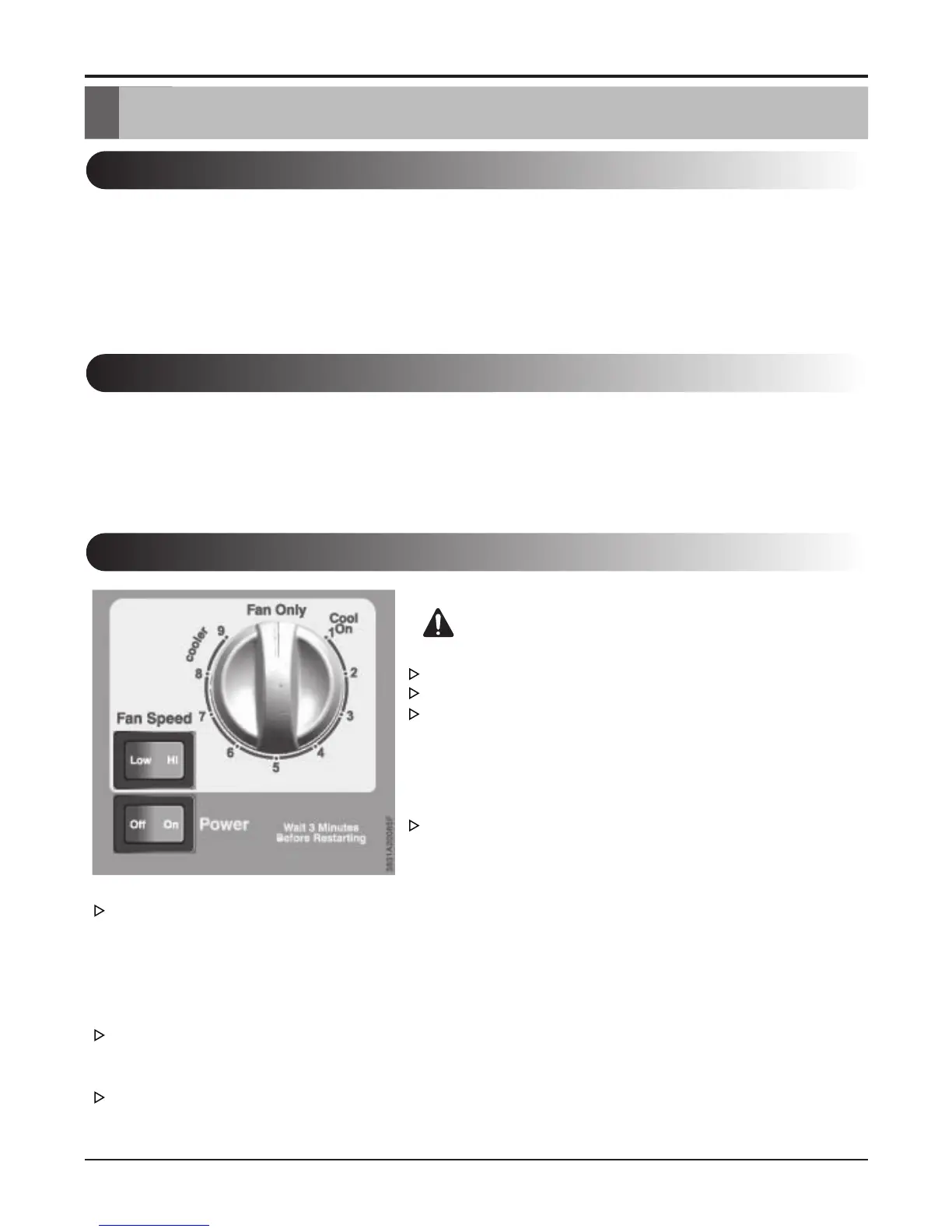

Operation
POWER
FAN SPEED "LOW "
FAN SPEED "HI"
-Turns air conditioner off.
L
ow speed fan operation with cooling or not.
High speed
fan operation with cooling or not.
Normal Fan
1. Turn the FAN speed mode switch to the "HI" or the "LOW" setting
2. Set the thermostat control to the temperature mark "Fan Only"
Normal cooling
1. Turn the FAN speed mode switch to the "HI" or the "LOW" setting
2. Set the thermostat control to the desire temperature (the mid-point is a good
sta
rting position).
If the room tempe
rature is not satisfactory after a reasonable time, adjust the
control to a
warmer setting, as appropriate.
Maximum cooling
1. Turn the FAN speed mode switch to the "HI" setting
2. Set the thermostat control to the cooler temperature mark.
Quieter operation
1. Turn the FAN speed mode switch to the "LOW" setting
2. Set the thermostat control as needed.
This automatically controls the temperature of indoor air.Turn the
knob so that arrow points to the cooler marks for more moderate
cooling.
CAUTION:If you turn off the air conditioner or switch from cooling
to the
fan,wait at least 3 minutes before setting to cooling again.
