BC3500DLM / BC3500DWM

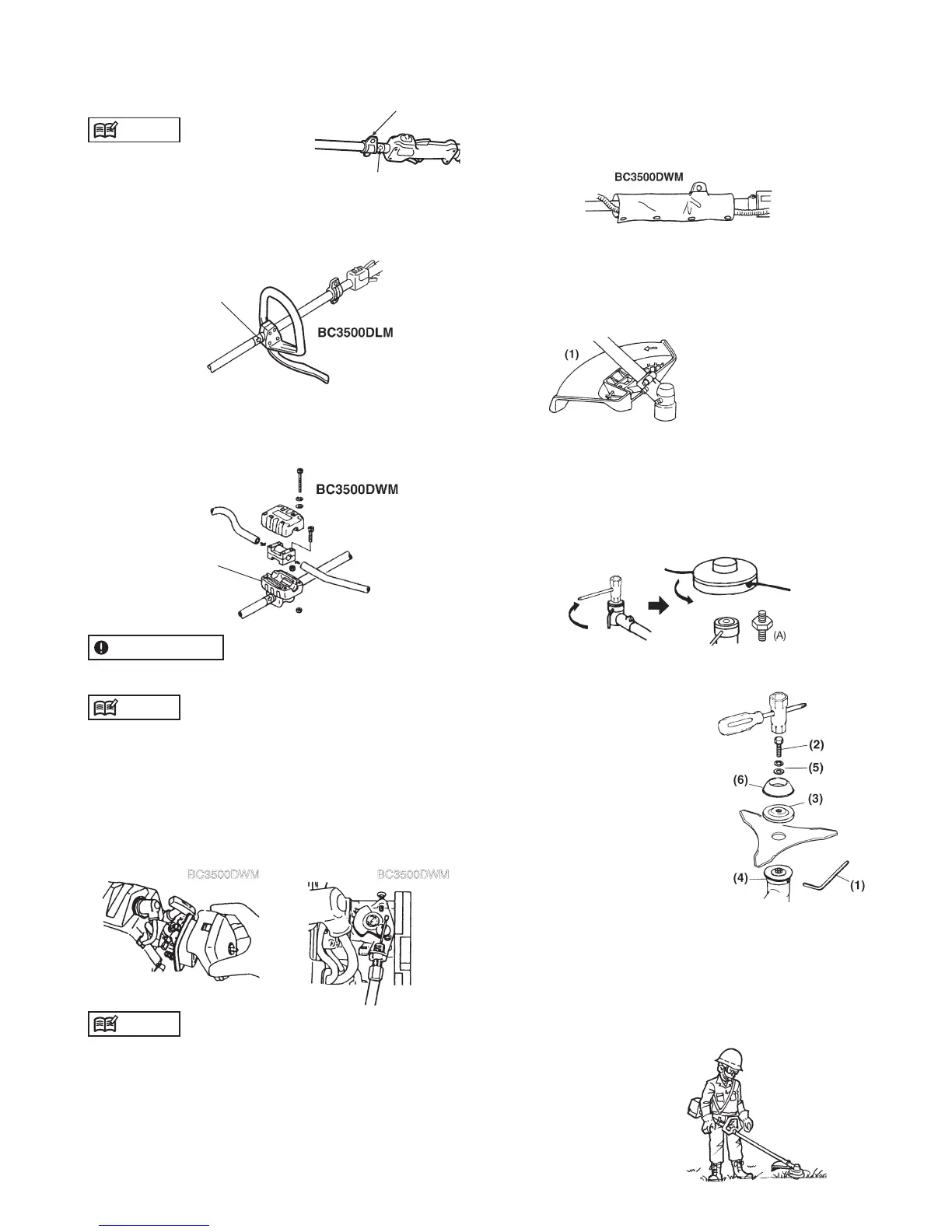

6. Set up
SUSPENSION POINT
NOTE
Be the SUSPENSION POINT in
the location of the arrow mark.
INSTALLING HANDLE
(BC3500DLM)
• Mountthehandletotheshafttubeandclampitata
location of the arrow mark.
arrow mark
1. Loosen the 4bolts on the upper cap and insert the
handles equally. Retighten the bolts.
2. Put the handle assembly into the bracket and put the
upper cap over it. Tighten the cap securely.
arrow mark
IMPORTANT
Tighten the screws gradually by turns.
NOTE
Be the BRACKET in the location of the arrow mark.
CONNECTING THROTTLE WIRE
(BC3500DWM)
1. Remove the air cleaner cover.
2. Connect the end of the throttle wire to the joint on the
top of the carburetor.
BC3500DWM BC3500DWM
NOTE
When installing the cleaner cover, make sure to put the
high-tension wire in it.
CONNECTING SWITCH WIRES
(BC3500DWM)
• Connecttheswitchwiresbetweentheengineand
the main unit. Pair the wires of the same color.
SUSPENSION POINT
arrow mark
HIP PAD
(BC3500DWM)
•Wrapthehippadaroundtheshafttubeasshownin
the figure, and fasten the hooks.
INSTALLING CUTTING ATTACHMENT
GUARD
• Attachthecuttingattachmentguardwiththebolts
combined to the cutting attachment.
(1) Cutting attachment
guard
INSTALLING TRIMMER HEAD
1. While locking the gear shaft by inserting the supplied
tool into the upper holder on the angle transmission,
loosen and remove the bolt (left-handed).
2. Fit the trimmer head assembly to angle transmission
by using output shaft (A). Hand tighten it securely.
BLADE (OPTION)
1. Put the angled bar (1) into the
side holes of the inner holder
and the angle transmission.
2. Remove the blade bolt (2,
Lefthanded) and the outer
holder (3) from the gear-
shaft.
3. Put the blade onto the inner
holder (4). Make the marked
side face the holder.
4. Put the outer holder onto the
gearshaft making the re-
cessed side face the blade.
5. Fasten the blade by the blade
bolt with the spring washer
(5) and the bolt cover (6).
BALANCE UNIT
1. Put on harness and attach unit to harness.
2. Slide clamp up or down until unit balances with head
aparting from the ground
when using it.
