2. Engine Assembling

The carburetor, muffler and air-funnel (air-cleaner) are not assembled at factory.

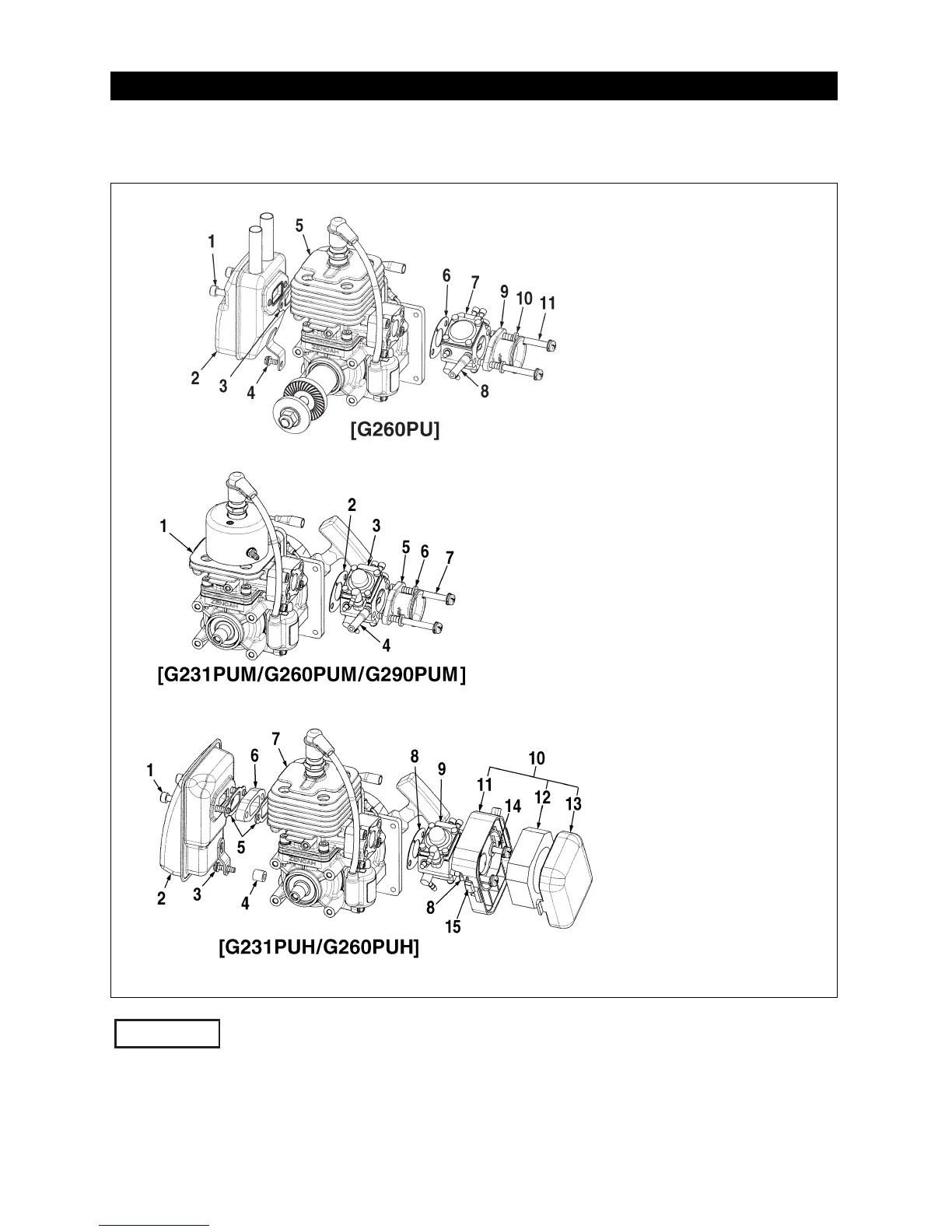

Make sure that the assembling for such parts are done according to the Fig.1.

1. Bolt (01252-30550)

2. Muffler (T2075-15110)

3. Gasket (1140-13141)

4. Screw (0263-30408)

5. Engine

6. Gasket (T2075-13150)

7. Carburetor (T2075-81000)

8. Tube (1000-03030)

9. Air-funnel (848ES08300)

10. Spacer (1142-83110)

11. Screw (0263-30555)

1. Bolt (01252-30560)

2. Muffler (T2710-15110)

3. Bolt (T1565-72211)

4. Spacer (1158-15420)

5. Gasket (1140-13141)

6. Spacer (1145-15412)

7. Engine

8. Gasket (T2075-13150)

9. Carburetor (T2077-81000)

10. Air Cleaner (848EP18300)

11. Air Cleaner Body

12. Filter

13. Air Cleaner Cover

14. Screw (0263-30555)

15. Lock Knob

1. Engine

2. Gasket (T2075-13150)

3. Carburetor (T2076-81000)

4. Tube (1000-03030)

5. Air-funnel (848ES08300)

6. Spacer (1142-83110)

7. Screw (0263-30555)

Make sure that gasket and carburetor are mounted as fig.1.

If carburetor is mounted upside down position, the engine does not start as

carburetor does not work correctly.

CAUTION

Fig.1
