Monsoon I Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions

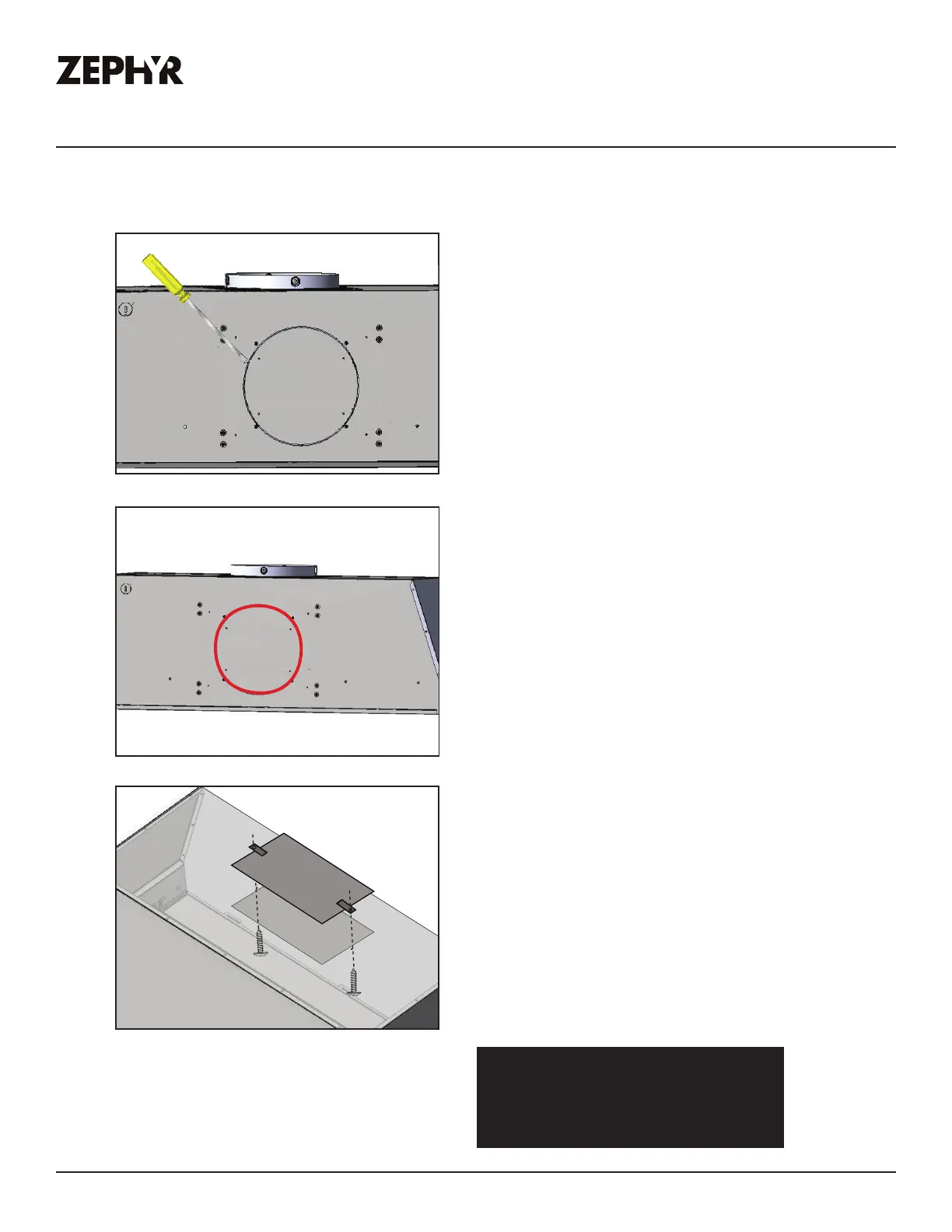

Horizontal Ducting Preparation
7. Using a flat head screwdriver,
remove 8” round knock-out
plates at the back of the liner.
9. Place top rectangular cover plate
over opening on top of the liner.
NOTE: Make sure the cover plate
tabs are on top of the cover plate
as shown. From inside the liner,
secure plate to top of liner with
(2) 3/16 x 3/8 screws.
8. Remove the round ducting knock-
out.
At this point, install the one piece liner
At this point, install the one piece liner
into the cabinet by following the steps
into the cabinet by following the steps
on Page 18, Step 4. After the liner
on Page 18, Step 4. After the liner
installation, continue to page 24.
installation, continue to page 24.
AK9228BS & AK9234BS Models Only
To Next Page
