Monsoon I Use, Care, and Installation Guide
MONSOON I
INSERT
CORE
Installation Instructions
Horizontal Ducting Preparation
Locking Tabs
Bottom Panel Screws
2
1

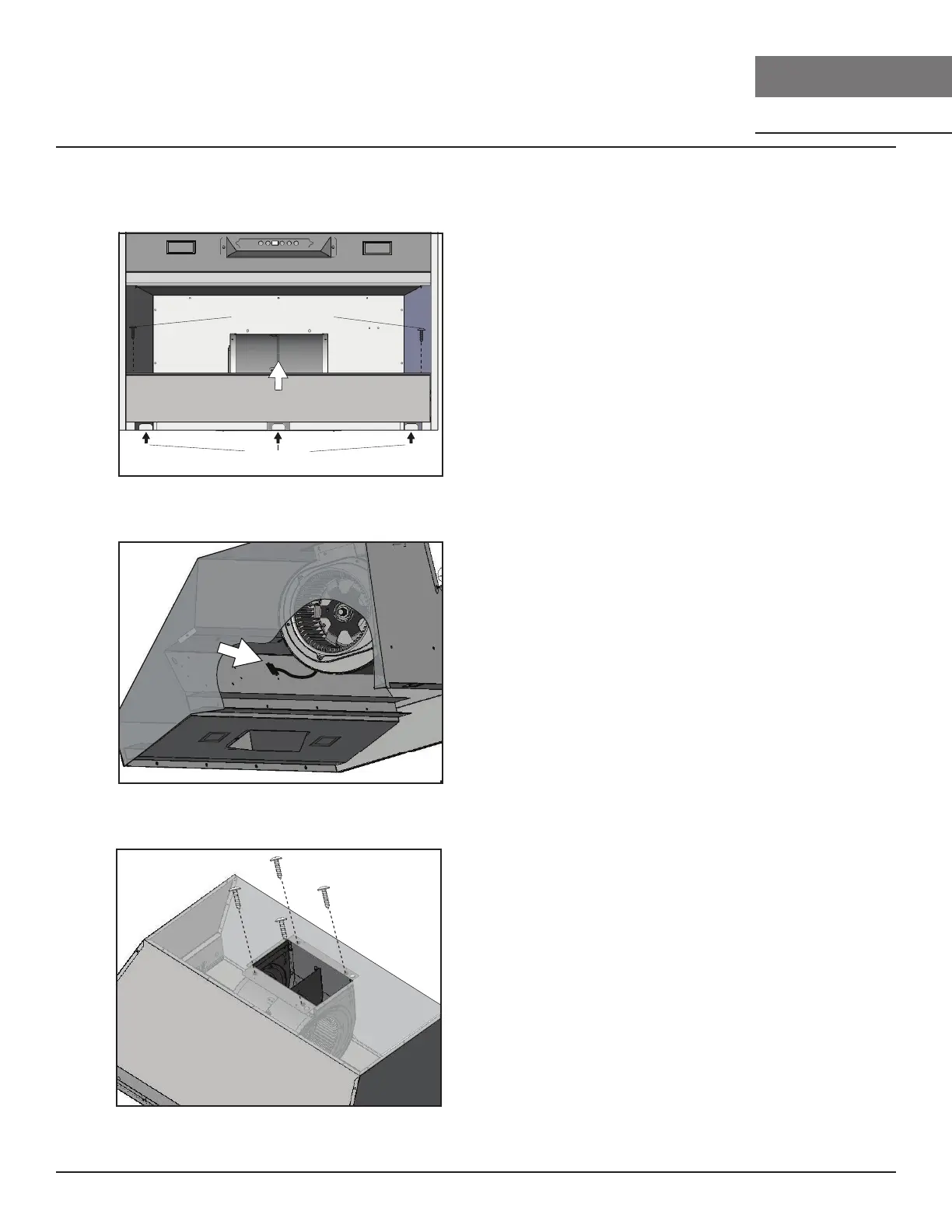

4. Remove bottom panel by: 1)
Removing (2) screws from left and
right sides of bottom panel. 2)
Pulling bottom panel toward front
of liner to release from locking
tabs.
6. Remove blower from liner by
removing the (4) 3/16” x 3/8”
screws from the top of the liner.
Set screws aside for later usage.
5. Disconnect blower molex plug.
AK9228BS & AK9234BS Models Only
To Next Page
