13
Vortex Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Hood Preparation & Installation
At least two installers are required due to the weight
and size of the hood.
CAUTION
1. Remove bae filter, all packing materials, and
protective film prior to installation. Use caution
during installation to prevent scratches or damage
to the stainless steel.
2. Prepare custom cabinet enclosure by following the
dimensions in FIG. B and the chart below.
3. If ducting vertically, continue to step 4. If ducting
horizontally, remove the motor by (8) screws, knock
out the rear duct 6” hole, orient the motor for
horizontal ducting, and reinstall motor and bracket,
FIG. C, page 14.
4. Install hood into cabinet. FIG D, page 14.
NOTE: Wood blocking may need to be added to
cabinet base if additional support is needed.
5. Secure front panel to cabinet. FIG E, page 14.
6. Finalize electrical and ductwork. Seal ductwork with
certified aluminum duct tape.
7. Switch power on and check for leaks around duct
tape. Test for proper operation.
8. Reinstall filter.

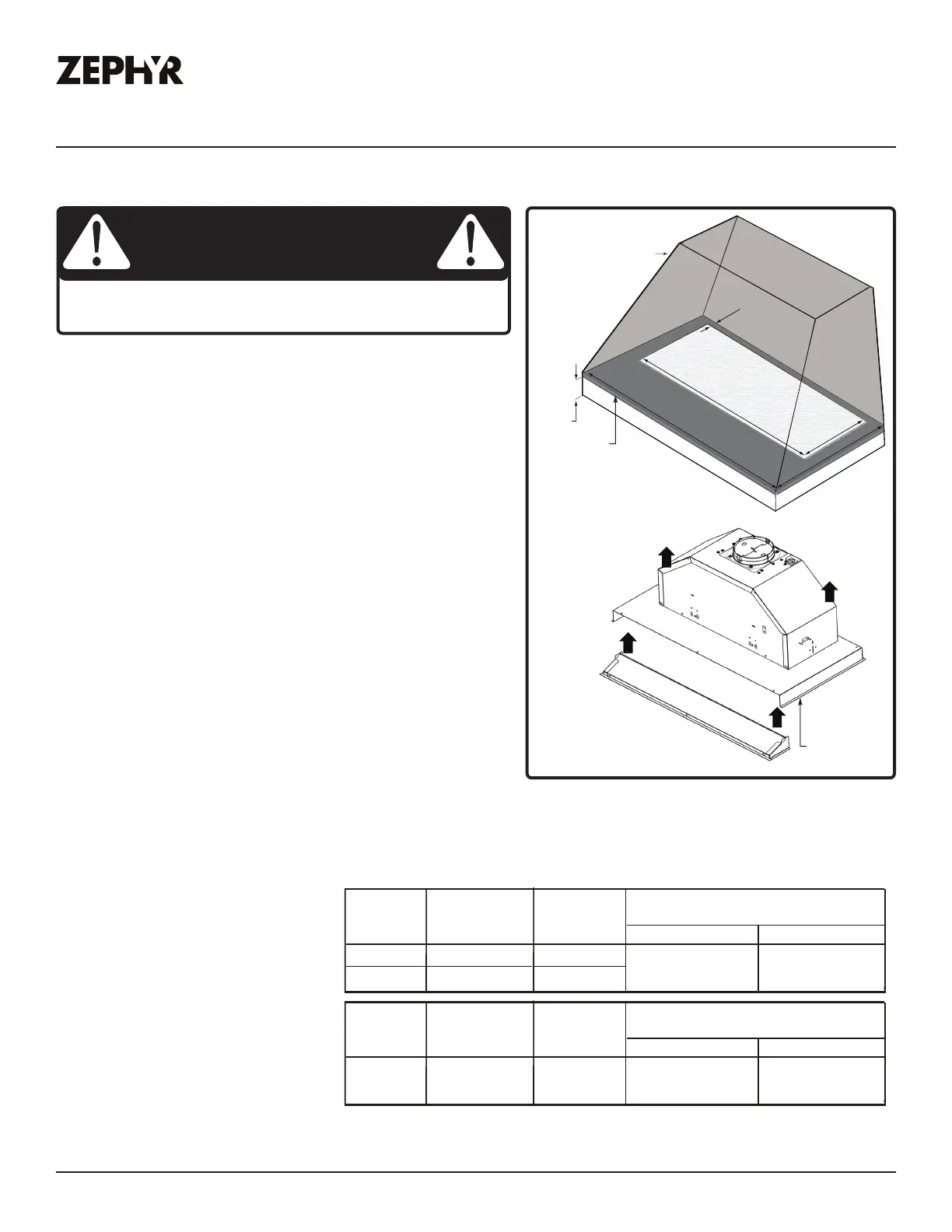

FIG. B
C
A
D
E
2-
1/
1
6
B
cut-out
Plywood Base
3/4''
Side Panel Thickness:
Recommended
3/8” Wide Flange
17 1/2” - 20 1/2 17 1/8” - 20 1/8
Without Backboard With Backboard**
Inside Depth*
Inside
Width*
Custom Hood
Exterior WidthModel
30 inches
36 inches
AK9028BS
AK9034BS
AK9028BS
AK9034BS
28 1/2
34
1/2
Without Backboard With Backboard**
Model
Cut-Out
Depth (D)
26-5/8
10-
1/2
Cut-Out
Width (C)
Rear Base
Depth
1-3/8”1
(E)
*Dimension does not include 3/8” wide flange around hood.
**Assumes backboard thickness of 3/8”
(A)
(B)

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zephyr Vortex AK9028BS and is the answer not in the manual?

Zephyr Vortex AK9028BS Specifications

General IconGeneral
Colorstainless steel
Hood Typeinsert
Venting Typeconvertible
Temperature Sensorno
Sones5 sones
Control Typeslide
Delay Startno
Interior Lightyes
Remote Controlno
Voltage120 volts
Weight and Dimensions IconWeight and Dimensions
Depth17 1/2 inches
Height19 1/10 inches
Width28 3/8 inches
Net Weight32.6 pounds
