Fixed Hoist Test Facility Operation and Maintenance Manual ZOM-12000-7 rev 0
Page 11 of 24
This manual contains proprietary information and is not to be copied or disclosed without written
permission from Zephyr International LLC. Copyright 2006-2008

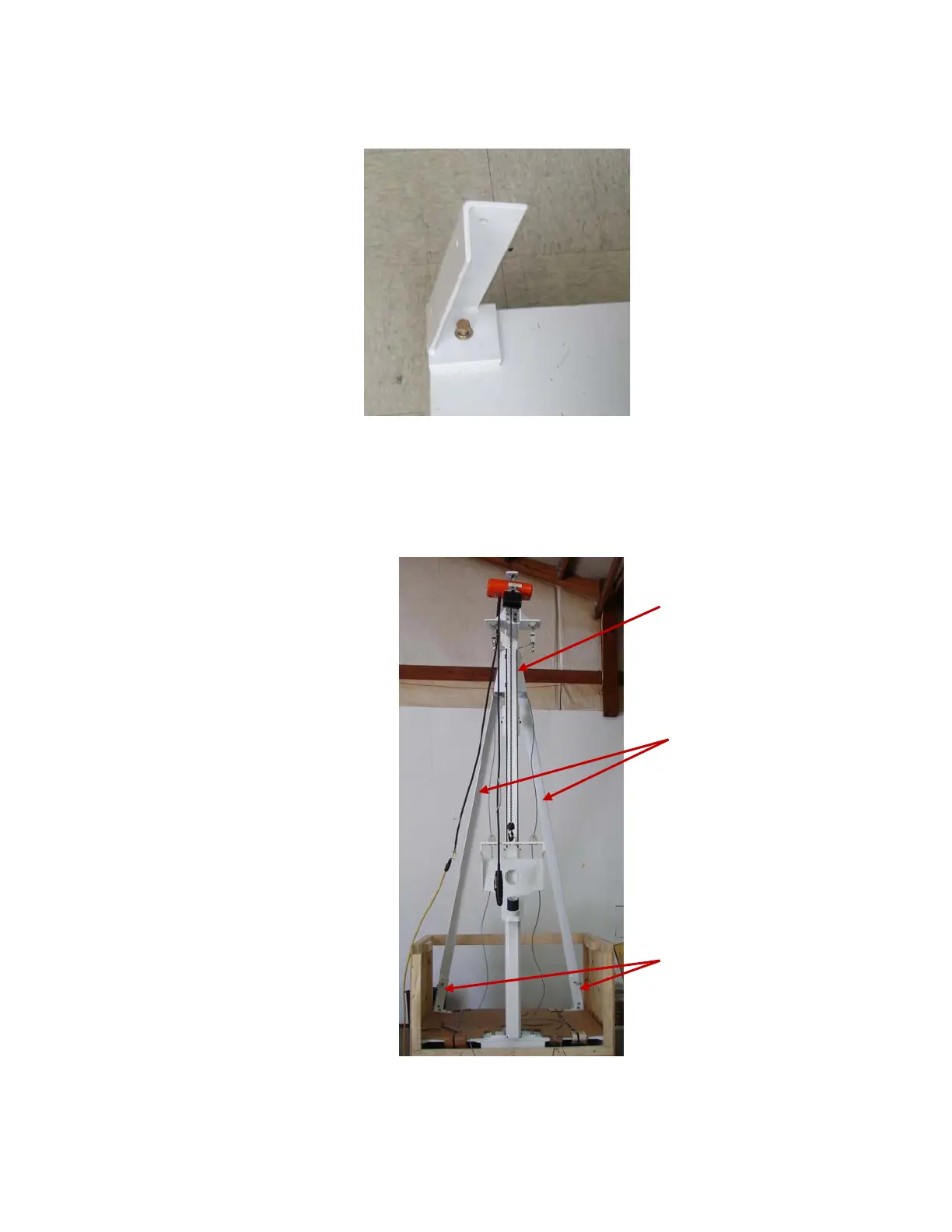

o Place the lower brace corner mount into position and loosely attach the
brackets with one bolt in each corner.
Identify the left and right diagonal braces and mount them between the lower and the
upper braces loosely.
Once all the holes have been lined up and the bolts inserted then tighten all the bolts
securely.
Left & Right
Diagonal Braces
Upper Brace Mount
Lower Brace Corner Mounts
To Next Page
