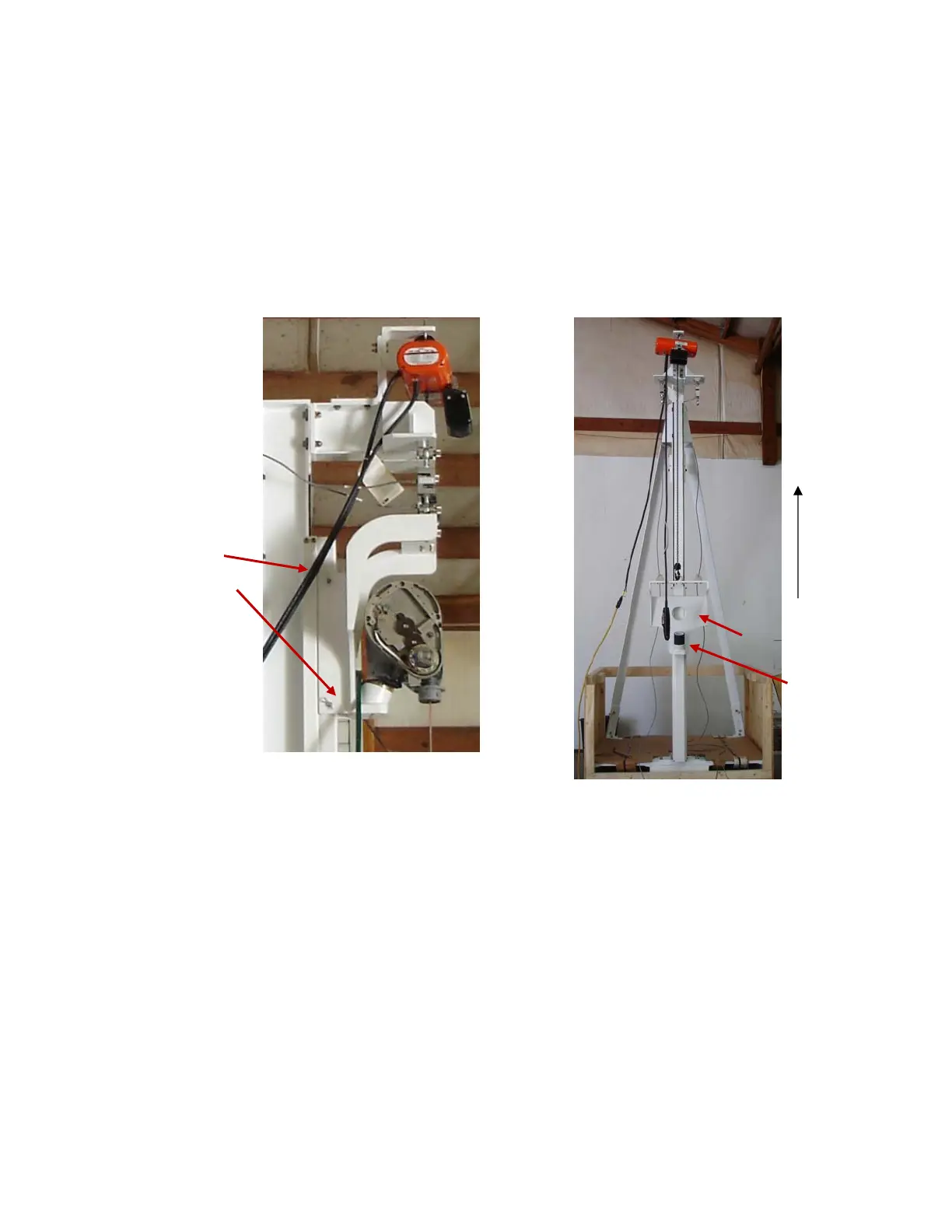

Slider Assembly,
Pins and hitch pins
o Attach an extension cord to the chain hoist and lower the hook to allow the
hanging hoist mount to be attached.
o Using the chain hoist control, lift the hanging hoist mount up so it can be
attached to the slider assembly with its two pins.
o Insert the hitch pin retainer pins into the slider assembly pins.
o Using the chain hoist raise the hanging hoist mount and slider upwards.
o Engage the lower tie rod ends of the load cell assemblies to the lower clevis
mounts of the hanging hoist mount with two clevis pins and hitch pins.
Hanging Hoist Mount
Post Mount
