16

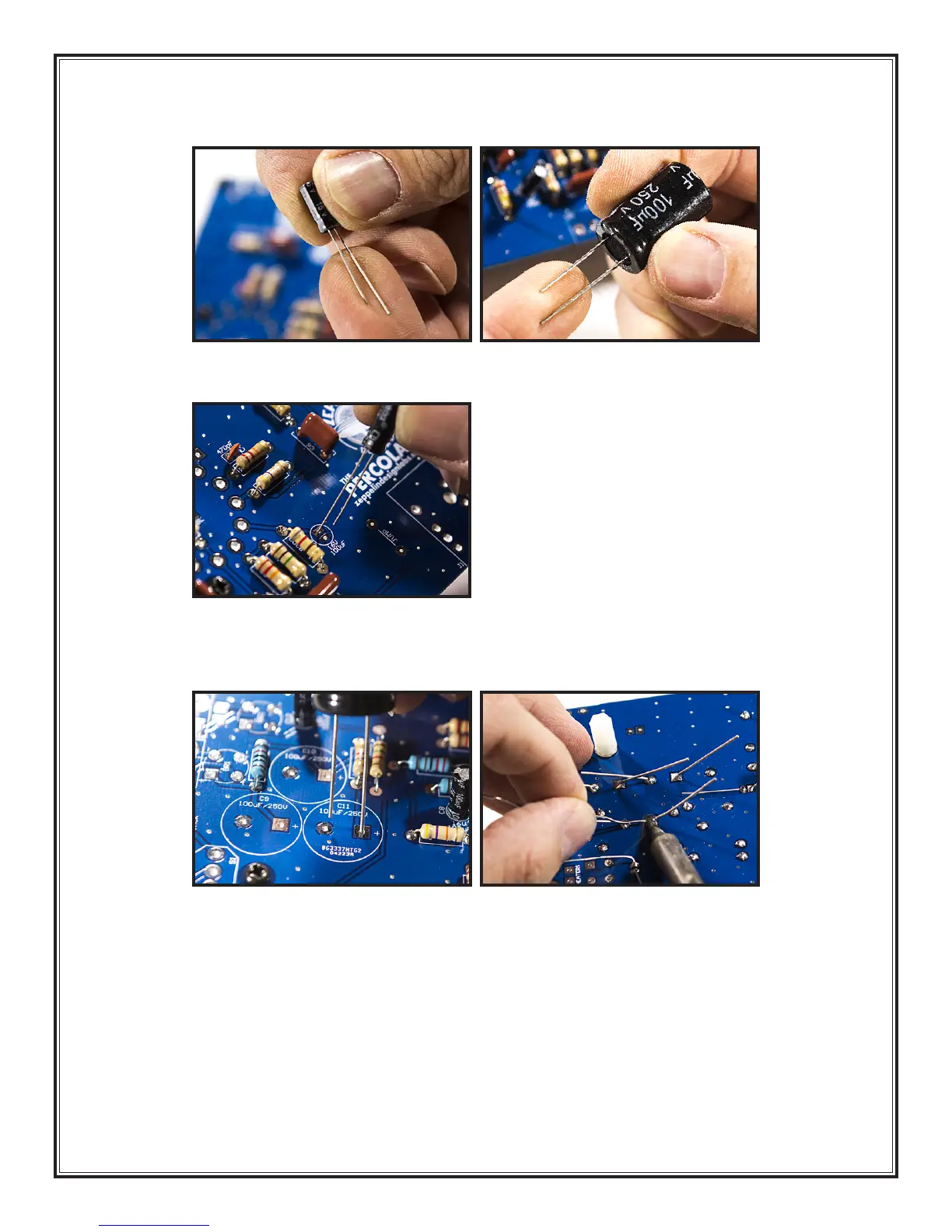

d. Install all of the smaller electrolytic caps (C2 ,C5 ,C8 ,C12). Solder and clip the leads.
16
e. Now install the three big electrolytic caps (C9 ,C10 ,C11).
17
Solder and clip the leads
18
, but
put one of these clipped leads aside for use in the next step.
WARNING: The big electrolytic caps (C9 ,C10 ,C11) are likely to explode if they are
installed backwards, which could result in personal injury. Install in STRICT CONFORMANCE
with these instructions!
f. Before moving on, double check the orientation of each of the electrolytic caps. Make sure the
stripe on each electrolytic cap is in the same direction as each cap in the picture.
19
5. Jumper wire: Use one of the leads that you just clipped off of the big electrolytic capacitors (C9,
C10, or C11) as this jumper. Use your needle nose pliers to bend the lead in the shape of a
staple.
20
Install the jumper in the holes and solder the leads.
21
14 15
16
17 18
19
20 21
