11. IEC Power Receptacle (Part # J3):
a. Strip about 1/4” (6mm) of insulation off the ends of the other 4cm hookup wire (Part #
CB10.3).
85

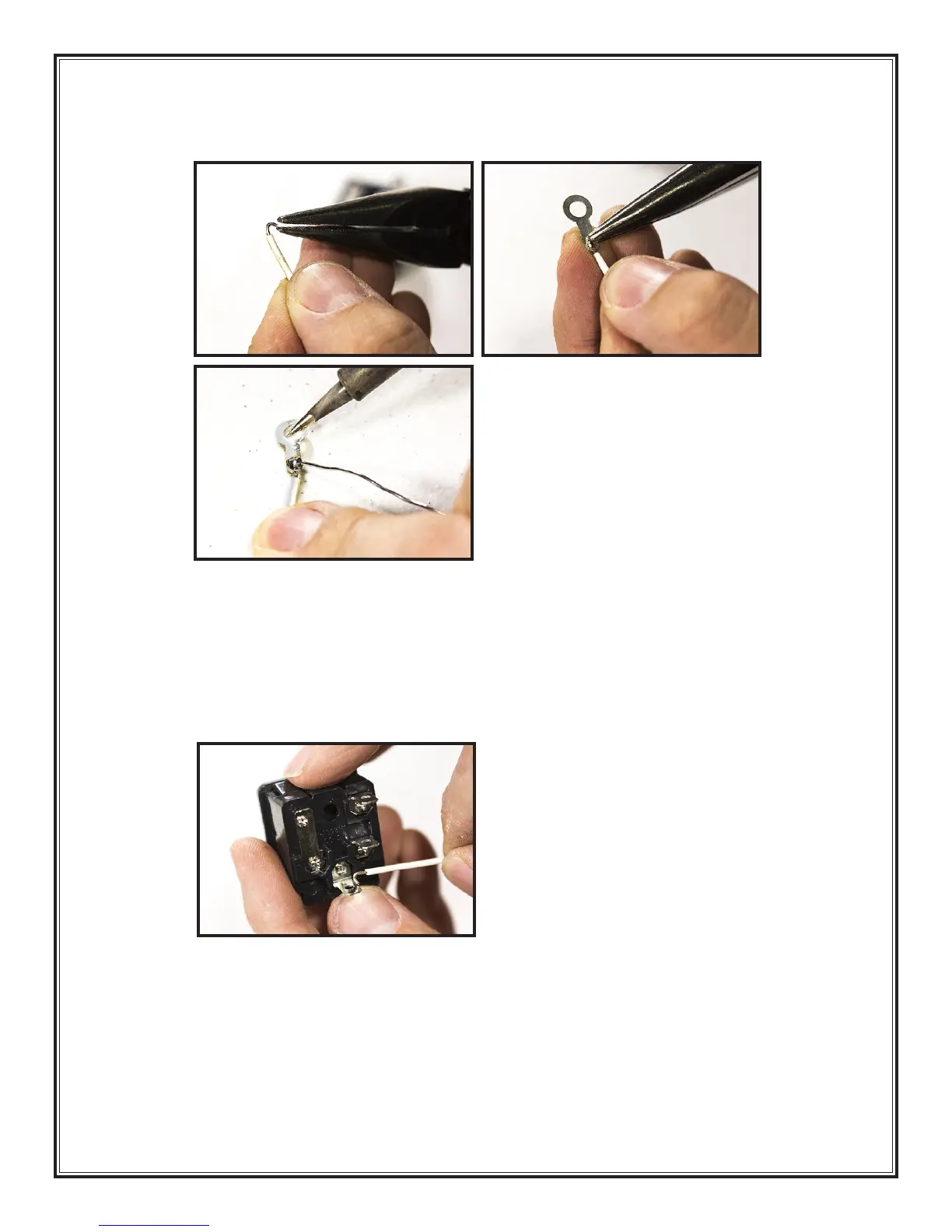

Attach the wire to the power receptacle lug as shown, with the wire pointing to
the left away from the power receptacle (study the picture carefully). Use the same hook and
crimp technique that you used in the previous step, but don’t solder it yet. MAKE SURE YOU
ATTACH THE WIRE TO THE CORRECT POWER RECEPTACLE LUG.
b. Now attach the other 4cm wire (the end opposite the ground lug) to the same power receptacle
lug . Attach it so the ground lug is pointing to the right, away from the power receptacle (study
the picture carefully).
