34

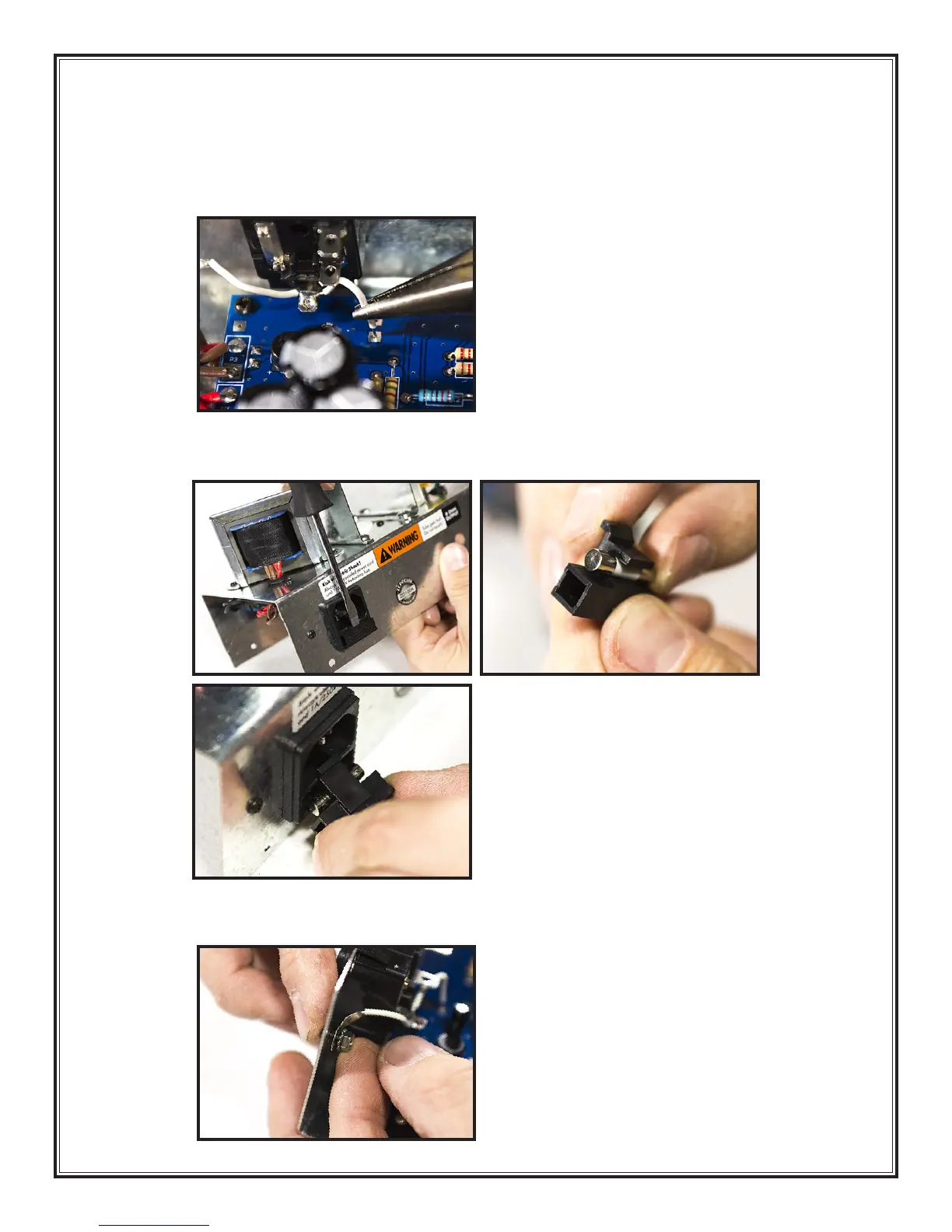

e. Place the wire coming from the right side of the power recepticle (the wire without the ground
lug on it) in one of the 3 square ground pads on the PCB next to the power recepticle. Solder
this wire in place on the component side of the board.
90
f. Use your flat screwdriver to pry the fuse holder from the power receptacle.
91
Pace the fuse
(Part # F1) in the holder
92
and slide it back into the power receptacle.
93
12. Grounding Wire Revisited: Use a M3x6 machine screw (Part # SC38) and one M3 Lock Nut, (Part
# NU10) to attach the grounding lug to the back of the chassis as shown.
94
Screw it down tight!
90
91 92
93
94
