d. With the baffle board resting between the three folds, find the line that is parallel and
closest to the remaining side of the baffle board.
263
Remove the baffle board and cut the
grill cloth on each of the folds crossing this new line.
264
ONCE AGAIN, DON’T OVER CUT.
Fold and crease along this line.
265
263 264
265

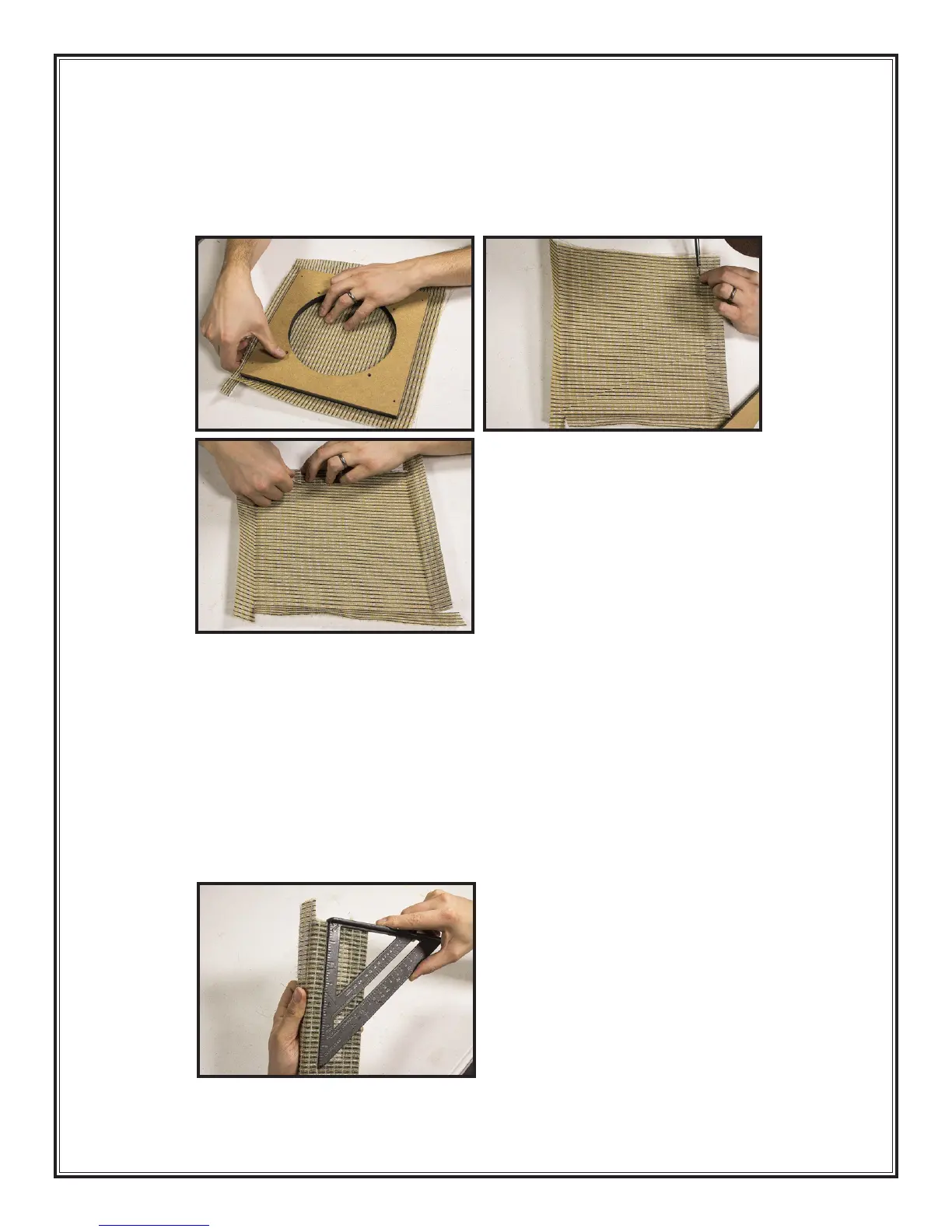

10. Make sure that the baffle board is rotated so that the black lines on the grill cloth will be vertical
when it is installed on the cabinet (notice the orientation of the baffle board mounting holes).
Alternatively, if you own a Percolator 2 Watt Tube Amplifier by Zeppelin Design Labs, orient the
cloth to match the pattern on the amp grill. While holding the baffle board (black side and t-nuts
down) onto the grill cloth, flip the assembly over and look at the front. The edges of the grill
cloth should wrap tightly around the baffle board, and all the lines on the cloth should be
parallel or perpendicular to the baffle board sides. Check the straightness of the lines (in both
directions) with your speed square and make sure the back of the grill cloth is flat against the
front of the baffle board. The process is illustrated with a grill cloth frame from the Percolator
amp head.
