Technical Specification
External Power Supply
In-line external power supply.
Mains voltage 90-253V, 47-63Hz (CEE22 inlet).
Power consumption < 20W.

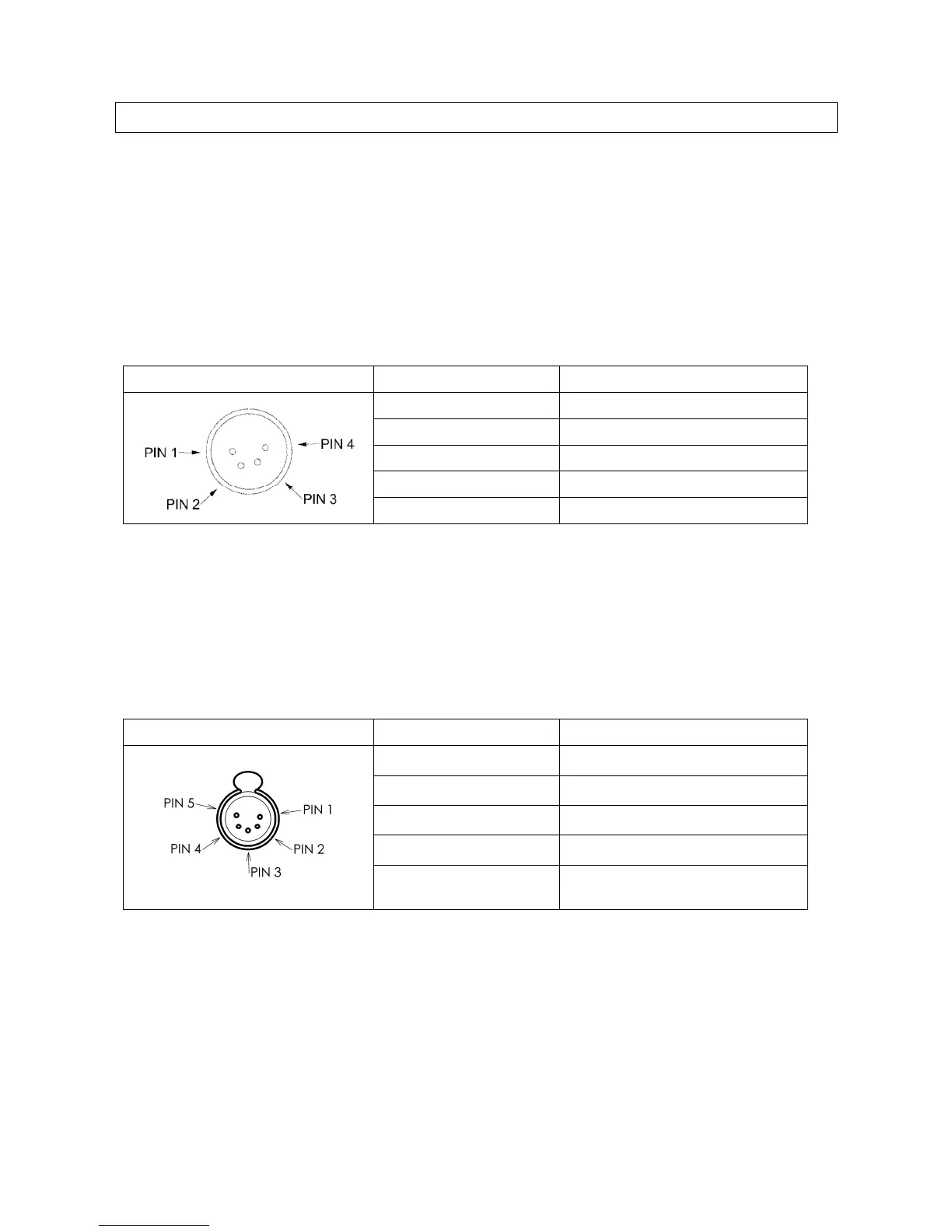

4 pin male XLR connector on desk:
Connector Pin Number Power
1 0V
2 +5V DC @200mA
3 +12V DC (not used by desk)
4 Not Connected
Shell GND
DMX Output
5 pin female XLR, unisolated with voltage protection.
Data on DMX channels 1-24 only.
DMX-RDM Hardware Ready.
Connector Pin Number DMX Output
1 Signal Ground (0V)
2 DMX Drive Complement (1-)
3 DMX Drive True (1+)
4 Not Connected
5 Not Connected
