Zero B UV GRANDE - Flow Schematic; Mounting the Unit on the Wall; How to Use

MOUNTING THE UNIT ON THE WALL
• Fix the mounting screws at the desired location
• Ensure that the screws are adequately grouted into the wall. Ensure that 15 mm
of the screws is out of the wall surface
• Fix the Zero B UV Grande on screws and start the inlet water and
electrical connection
• The tank may take approximately 2-3 minutes to get filled up

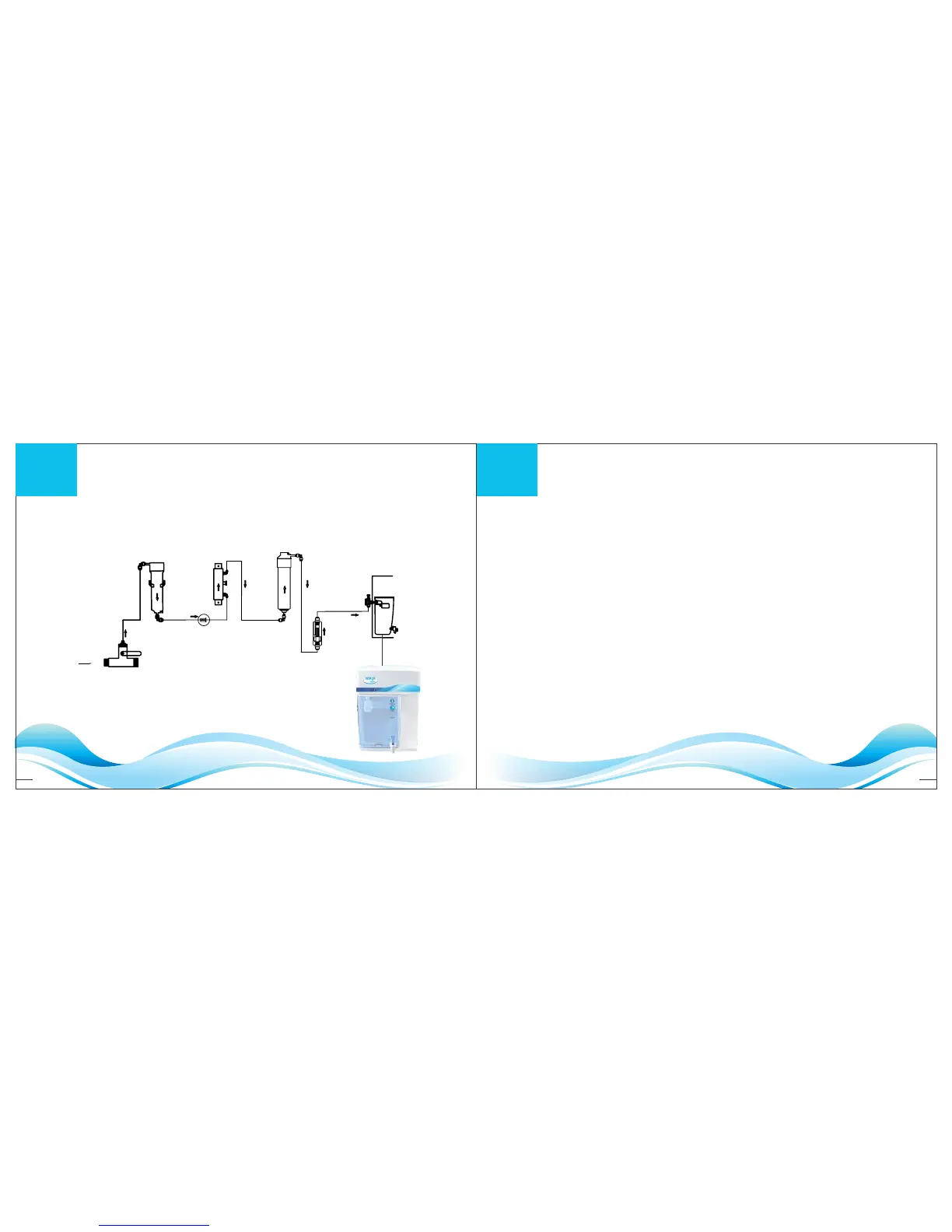

FLOW SCHEMATIC
13 14
PP SPUN WITH FILTER
BAG
CARBON CARTRIDGE
WITH ESS
RAW WATER
CP TAP
UV
FR
TANK
HOW TO USE ?
• Start the water connection (Open the tap)
• Switch on the mains power. A BLUE colored LED will glow indicating power on condition
• After few seconds, the WHITE colored LED will glow indicating the process of purification is on UV lamp/
ESS is activated
• The green LED will get activated indicating UV pass status. The purified water will get collected in the
detachable 4 litres tank.
• Dispense the product water using the dispensing tap
• Do not switch off the power and the water.
