RVZC30 (and BB/T/TBB/WA), RVZP30 (and BB/T/TBB/WA), RVC24
14
0407
DRAIN LINE
The drain is located at the center of the case in the floor pan.
The drain can be reached by removing the center coil covers
and then removing a fan motor. The 1” PVC drain outlet is
located at the center front of the case behind the kick plate.
Install the tee to the outlet pipe and a drain trap to the tee. Plug
the open end of the tee using the clean-out plug supplied with

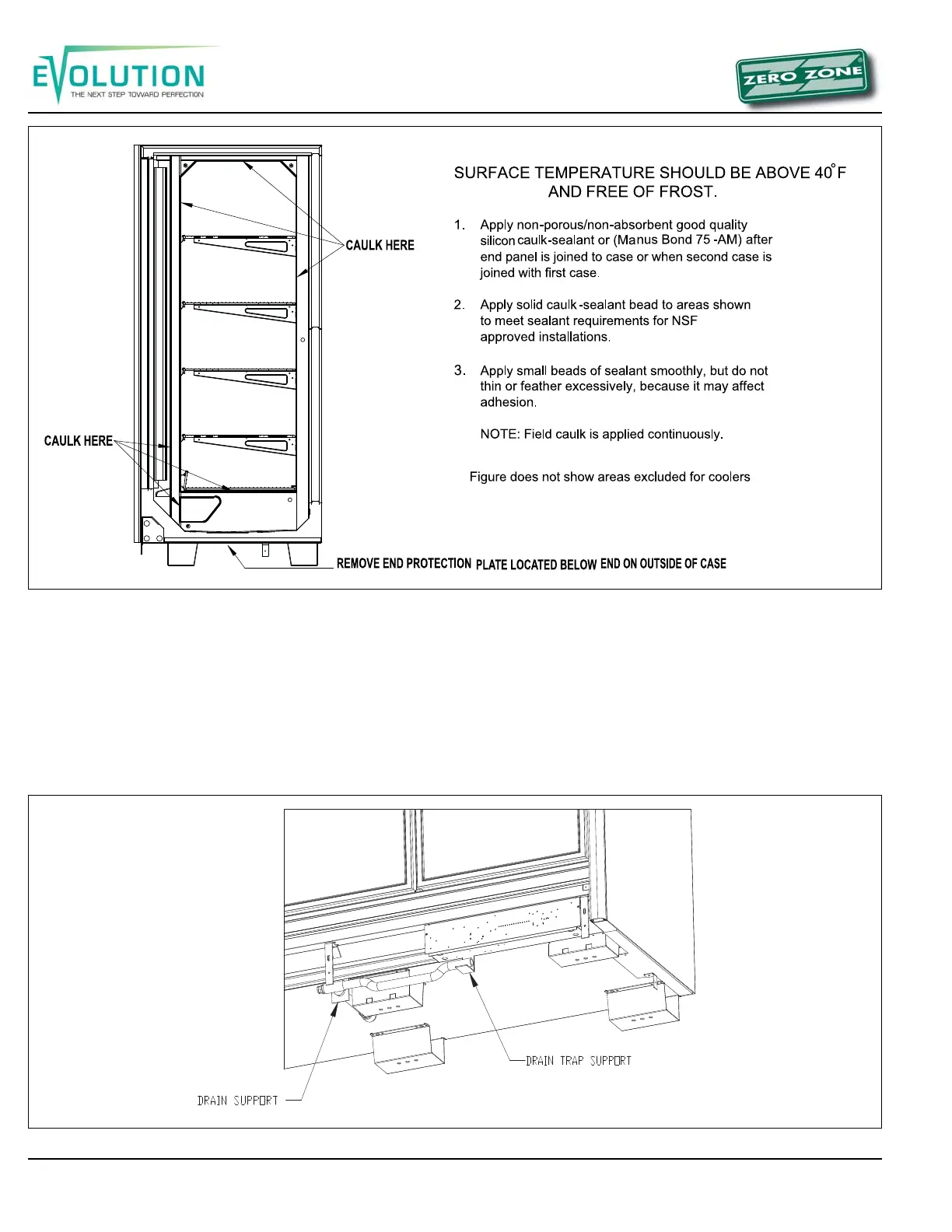

Figure 11: Required sealing for NSF approved installations
the drain trap kit. The drain line must be pitched away from the
case. The tee, drain trap and plug are supplied with the case.
The factory installs a drain support at the front of the case on
all 30" door cases. We supply a trap support that is field
mounted to the case (Figure 12). The drain trap must be
level. The drain trap should be primed with water after installa-
tion.
Figure 12: Trap Support
