119
ELECTRIC INSTALLATION
F306

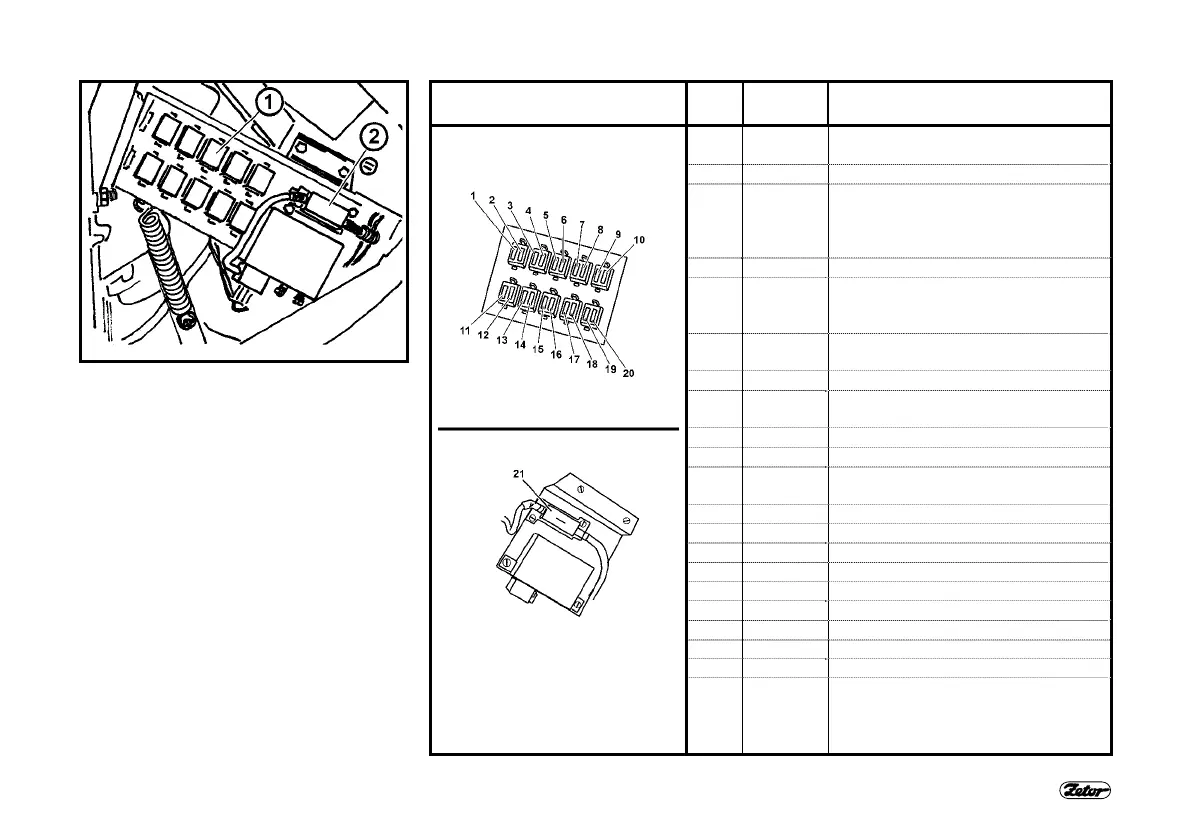

FUSE BOX
It is accessible after removal of the left
cover of the steering bracket.
The blade-type fuses (1) shall be re-
placed for new ones having the same
rating. In case of repeated blowing seek
an authorised repair shop.
Rating of the strip-type fuse (2) is 80 A.
Layout of fuses in the fuse
box
Pos. Fuse
rating
Protected system
1 15A Interrupter of warning lights
Stop lights
2 15A Horn, beacon
3 15A Control of front driving axle, control of
differential lock, dashboard power
supply, control of rear VH, control of
multiplier
4 15A High beams with indicator
5 15A Left marker lights, dashboard illu-
mina- tion, registration plate illumina-
tion
6 15A Right marker lights, rear working
headlight with indicator
7 15A Right low beams, fog light + indicator
8 7,5A Left low beams, indicator of lights in
the mask/on the roof of the tractor
9 15A Working lights in the front mask
10 3A Front VH Zuidberg
11 15A Front and rear wipers, washer, radio
“15“
12 20A Heating fan, radio “30“
13 15A Recirculation, cigarette lighter
14 7,5A Air-conditioning (compressor clutch)
15 15A Not used
16 15A Not used
17 15A Driver’s seat compressor
18 20A 3-pin socket
19 15A Front working headlamps on the roof
20 15A Rear working headlamps on the roof
F307
21 80A Heating plug
