INTRODUCTION
9
EN 3201.758.001a 2016-02
1.3 GENERAL INFORMATION
1.3.1 MANUFACTURER'S ADRESS AND CONTACT
All gearboxes supplied by ZF Padova S.r.l.. are accompanied by the relative operating manual.
Further copies of this manual or of other technical documentation can be obtained from:
ZF Padova S.r.l.
Via Penghe 48,
35010 Caselle di Selvazzano PD
Tel. +39 - 049 8299485
Fax +39 - 049 8299560
1.3.2 GEARBOX DATA

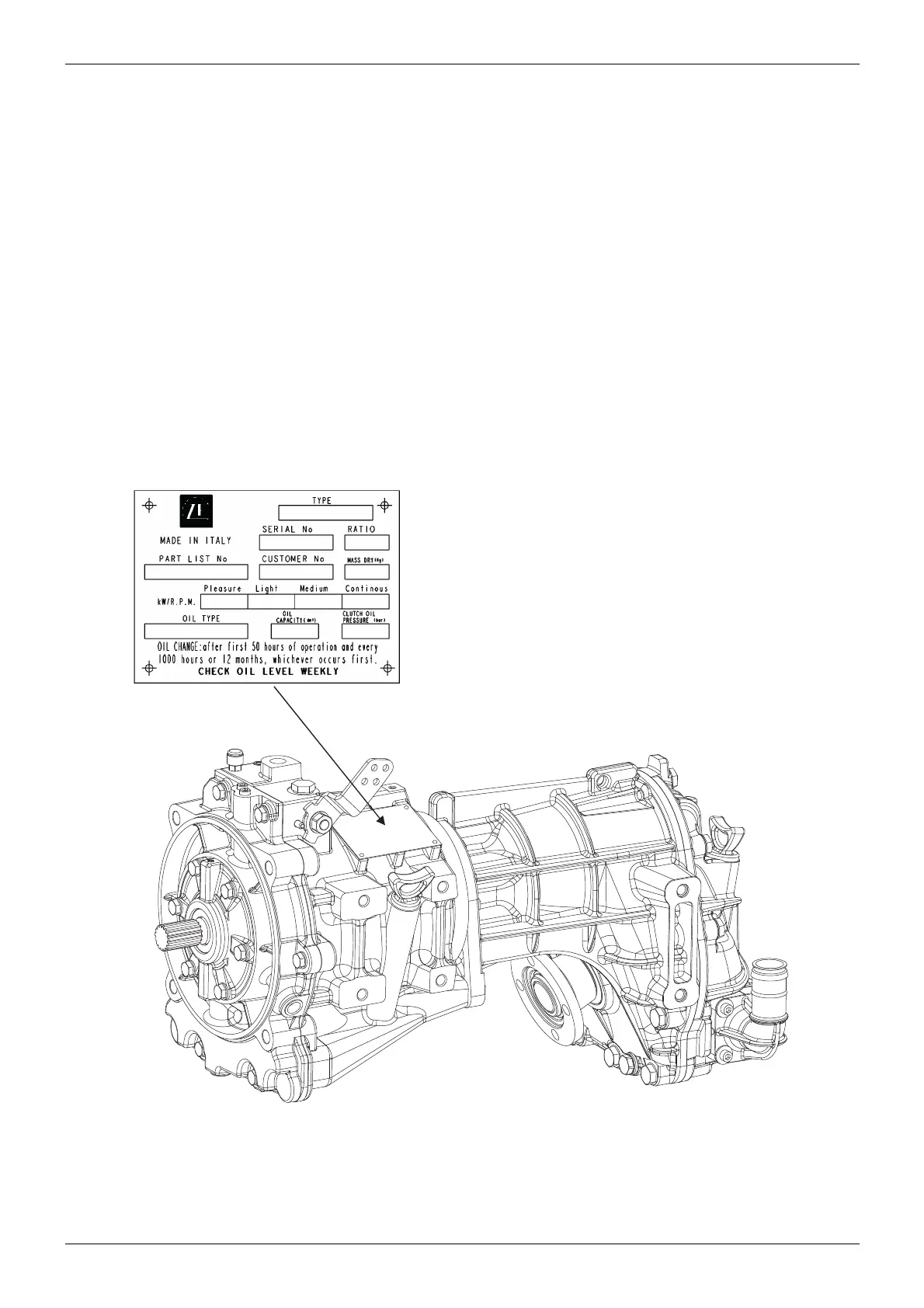

IDENTIFICATION PLATE
The data of the gearbox will be found on the identification data plate:
the plate is located on top of the casing as shown.
This type of gearbox have been designed for high speed crafts such as example leisure boats and sport boats
It must be stored in a dry and temperate environment with its packs.
If the packing is removed, it's must be provided to the painting with anti-rust (if not present) of all outer surfaces gear-
box.
The gearbox is delivered without oil.
