11. SPARE PARTS LIST ZF 63 A - ZF 63 - ZF 80 A - ZF 80-1 A
39
Repair Manual and Spare Parts List
Section 11 : Spare parts list
ZF 63 A - ZF 63 - ZF 80 A - ZF 80-1 A
Preface
The spare parts list is only valid for the type and ver-
sions of transmission, as shown below.
You will find the transmission type and version on your
transmission name plate.
If the type and version indicated differs from that
printed in this Manual, the relative Spare Parts List
should be ordered from ZF HURTH MARINE.
The indicated dimensions and standards are as such
not enough for ordering parts.
When ordering parts, please state:
.
Transmission type
.
Serial number
.
Item no.
.
Part name
.
Identification no.
.
quantity of parts required.
The spare parts list is referring to the following versions:
ZF 63 A versions 21
(1.22 R)
;22
(1.56 R)
;24
(2.04 R)
;25
(2.52 R)
;30
(2.70 R)
;
versions 001
(1.22 R)
; 002
(1.56 R)
; 003
(2.04 R)
; 004
(2.52 R)
; 012
(2.52 R uprated)
; 005
(2.70 R)
;
versions 015
(1.22 R)
; 016
(1.56 R)
; 017
(2.04 R)
; 018
(2.52 R)
; 035
(2.52 R)
; 020
(2.52 R uprated)
;
021
(2.70 R)
; 034
(2.70 R)
;
ZF 63 versions 01
(1.51 R)
;02
(1.93 R)
;03
(2.48 R)
;04
(2.78 R)
;
versions 009
(1.25 R)
; 001
(1.51 R)
; 002
(1.93 R)
; 003
(2.48 R)
; 004
(2.78 R)
;
versions 010
(1.25 R)
; 011
(1.51 R)
; 013
(1.93 R)
; 014
(2.48 R)
; 015
(2.78 R)
;
ZF 80 A versions 15
(1.20 R)
;16
(1.41 R)
;17
(1.57 R)
;18
(1.96 R)
;19
(2.50 R)
;20
(2.85 R)
;
versions 001
(1.20 R)
; 002
(1.41 R)
; 003
(1.57 R)
; 004
(1.96 R)
; 005
(2.50 R)
; 006
(2.85 R)
;
ZF 80-1 A versions 009
(1.21 R)
; 010
(1.41 R)
; 007
(1.57 R)
; 008
(1.96 R)
; 011
(2.50 R)
; 012
(2.85 R)
;

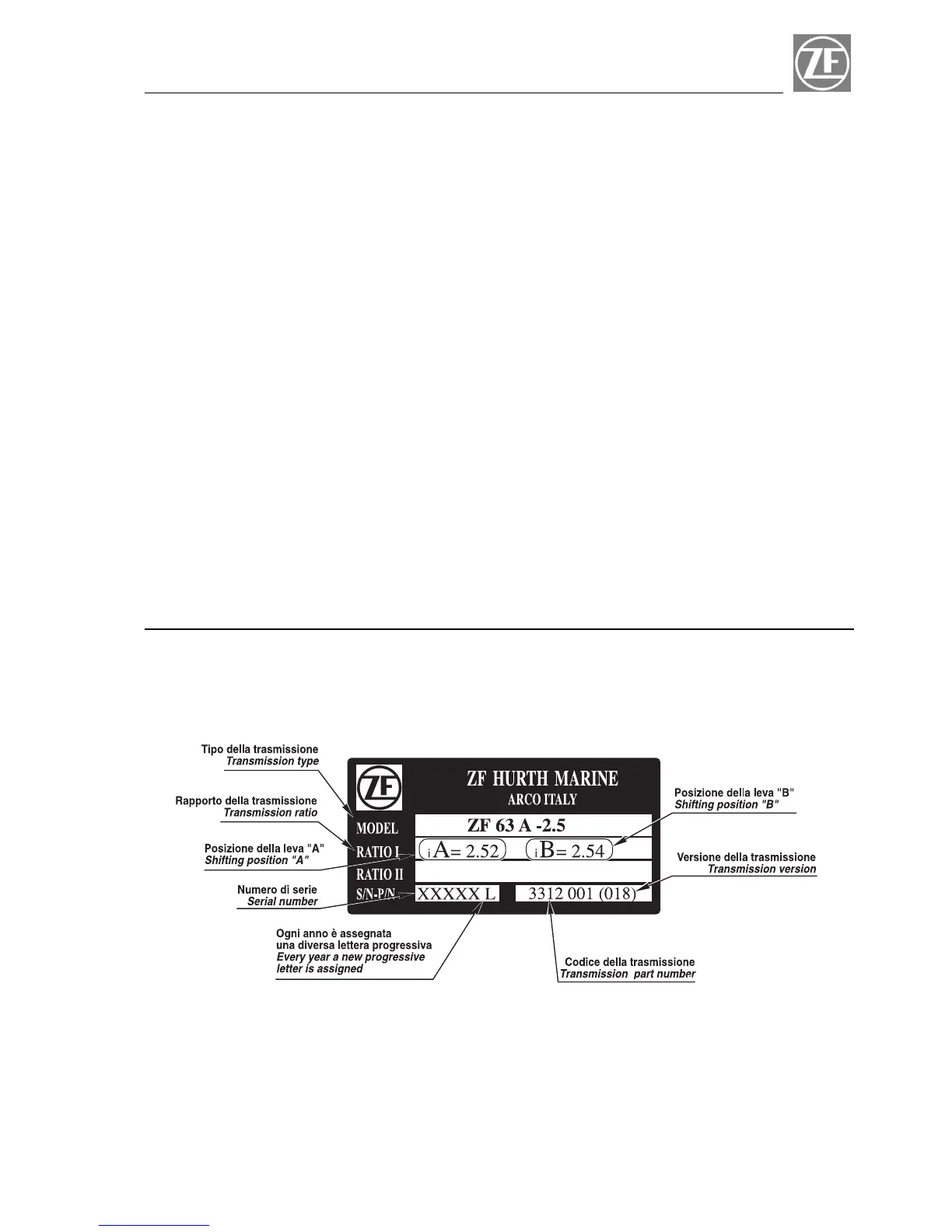

Name plate
The name plate is mounted to the transmission
