ZF 80-1 A new version User Manual

1. MAJOR COMPONENTS

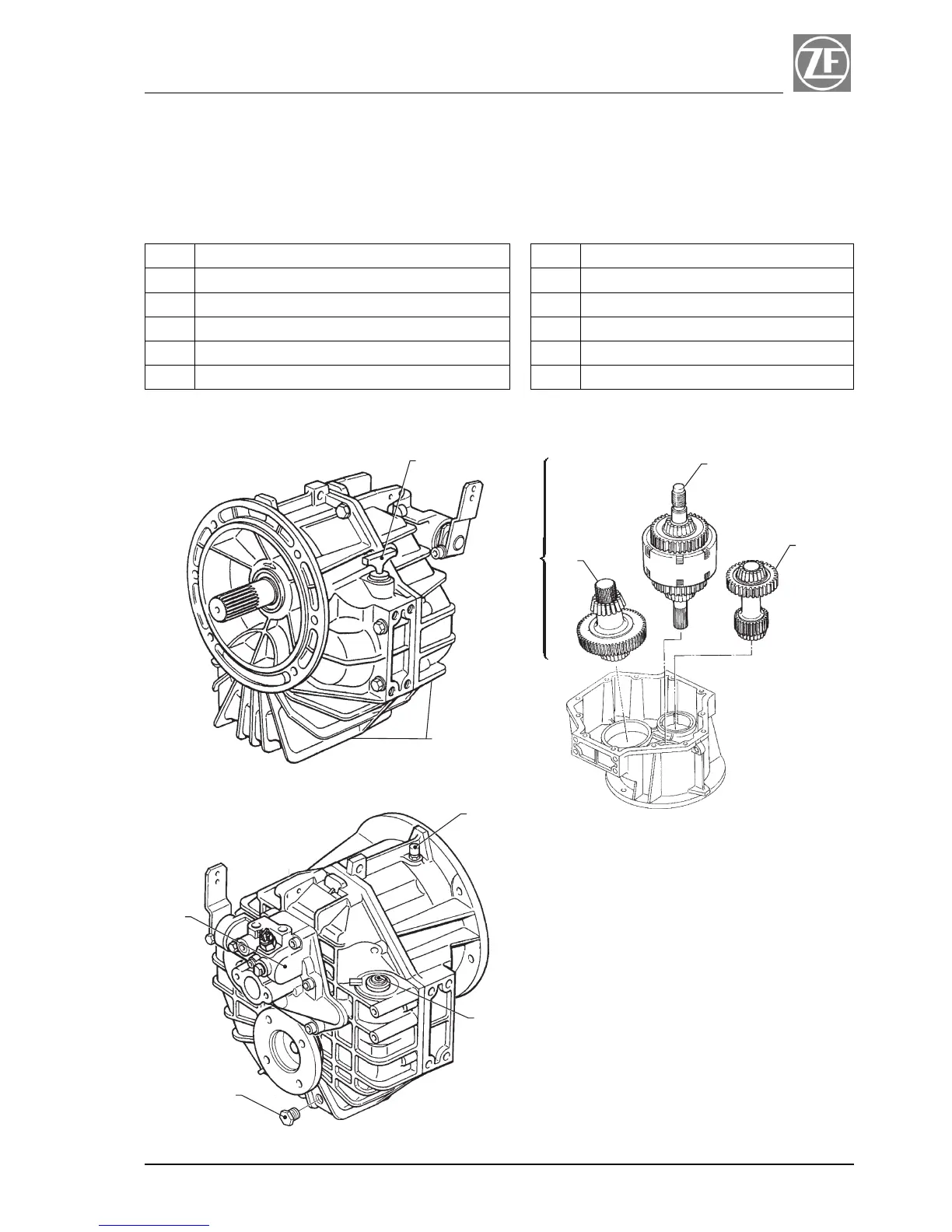

1.1 TRANSMISSION SET-UP
The main components of the ZF Marine Transmissions are:
ITEM
DESCRIPTION
ITEM
DESCRIPTION
1
Two-piece aluminum die cast
2
Gears
1.1
Oil filter
2.1
Input shaft with reversing clutch pack assembly
1.2
Oil dipstick
2.2
Intermediate shaft
1.3
Breather valve
2.3
Output shaft
1.4
Oil drain plug (ZF 80A, ZF 80-1A, ZF 85A)
3
Control block
5
Repair Manual and Spare Parts List Section 1
1
1.2
1.3
1.1
1.4
3
2.1
2.3
2.2
2
