ZF GK30 - TRANSMISSION ATTACHMENT IN VEHICLE; Vehicle Mounting Construction Requirements

Maintenance and Installation Instructions Edition 11.07.2006 21 of 30
The following chains are currently approved by ZF for GK40 etc.:
(see Fig. 16, Page 21)
Mounting dimensions (in mm)
Single roller chain D E F
10B-1 5/8“ x 3/8“
Ø335.16 DIN 8187-E-10B-1 DIN 8181-E-210B
12B-1 ¾“ x 7/16“
Ø337.07 DIN 8187-E-12B-1 DIN 8181-E-212B

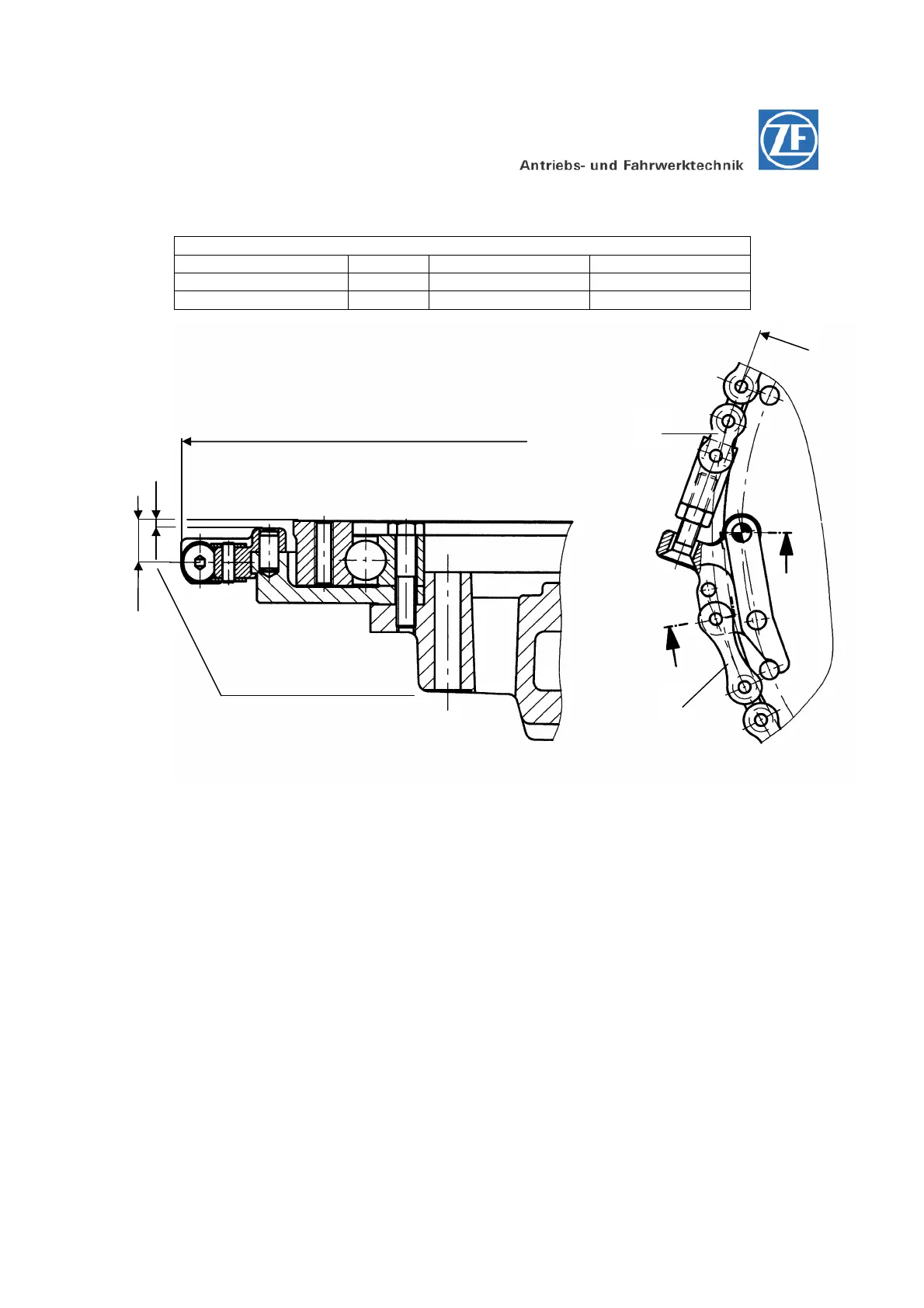

Figure 16
E
F
D
3,3
18,2
Ø 383
Center Chain track
