ZIEHL-ABEGG ECblue User Manual

4 Mounting
Proceed as follows:

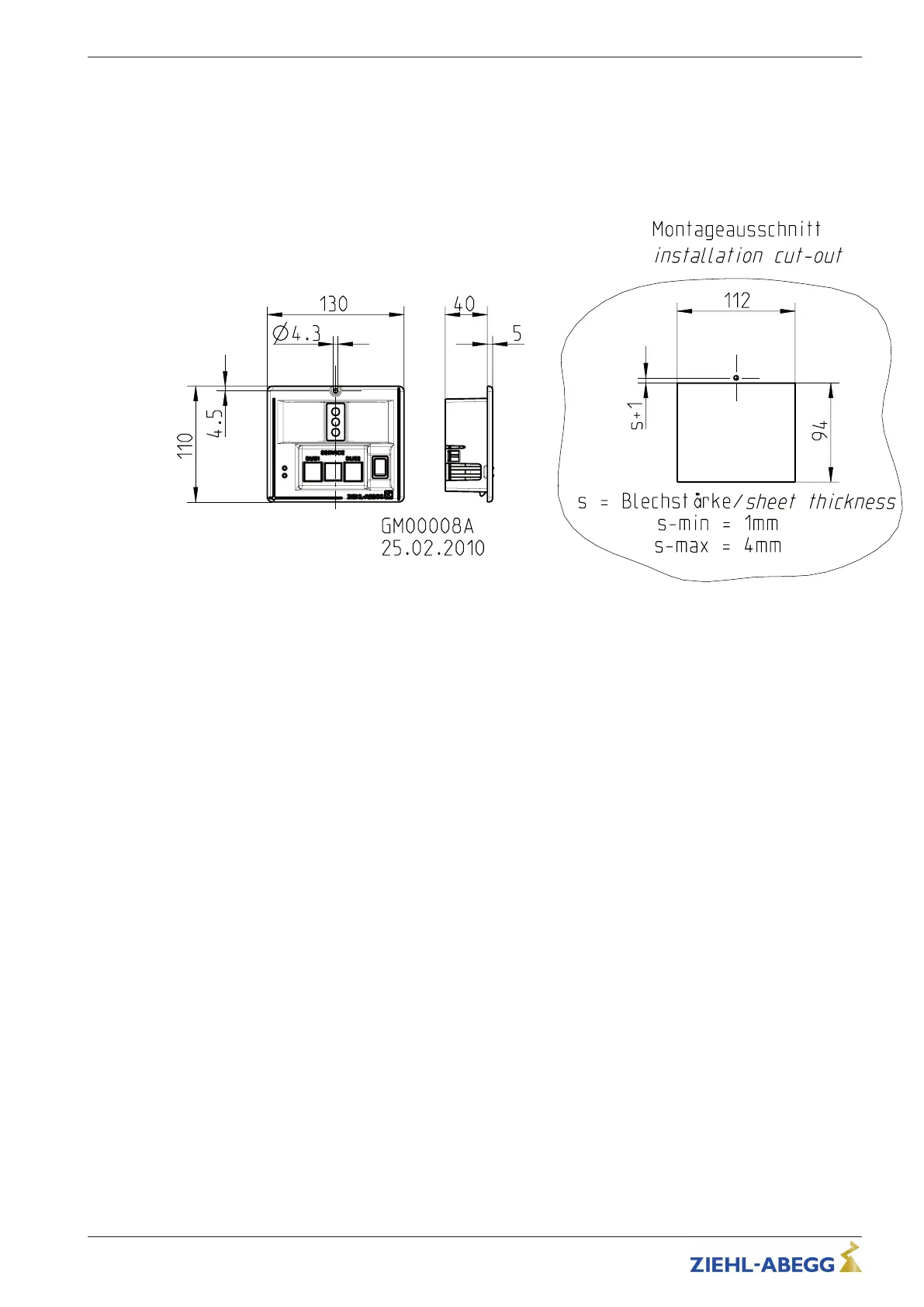

" Create the installation cut-out and fastening hole as shown in the drawing.
" Insert the device into the installation cut-out from the front and secure with a screw.
Dimensions [mm]
Operating Instructions Connection box ECblue (LON) Mounting
L-BAL-E268-GB 1630 Index 003 Part.-No.
3/10
