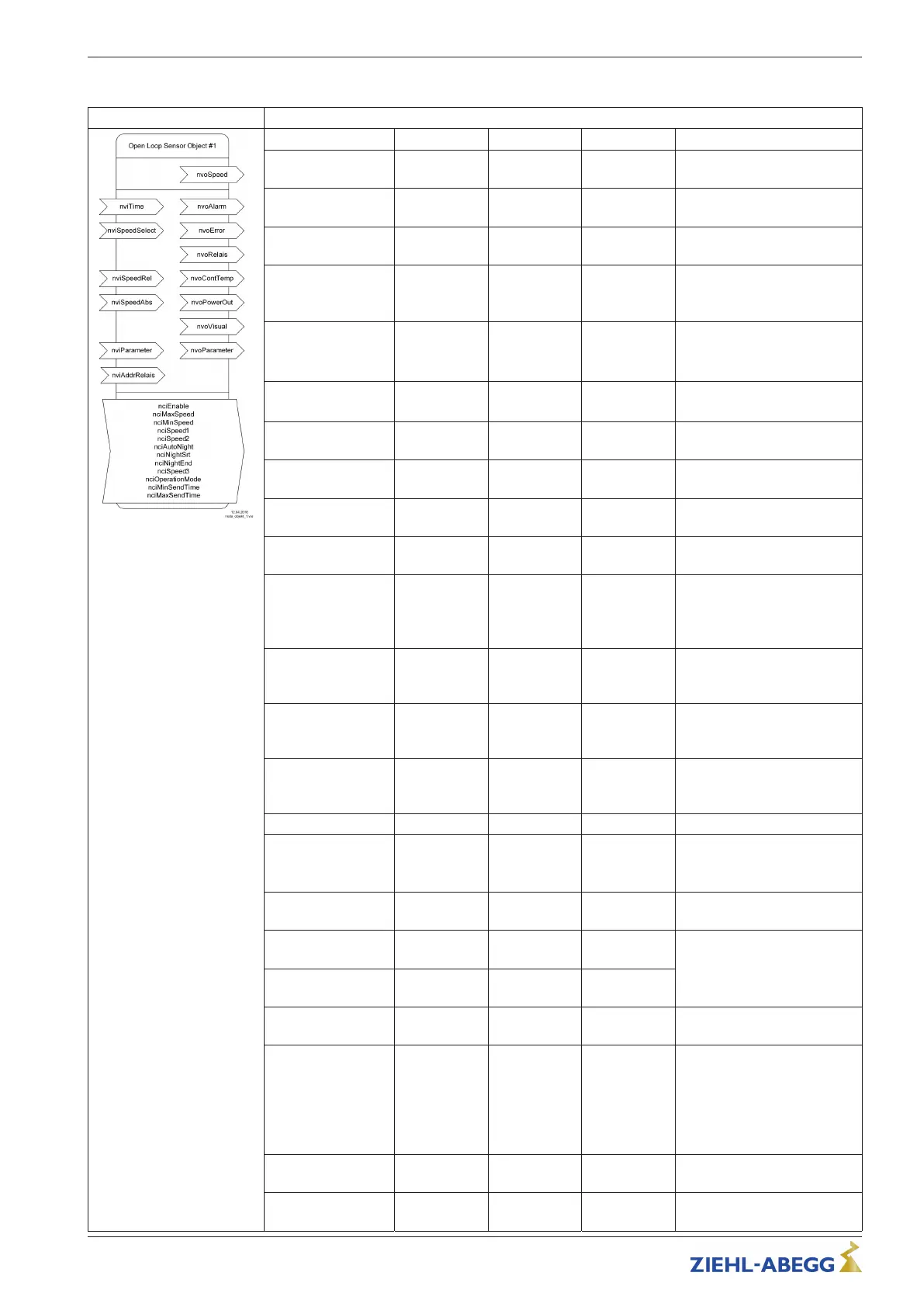

Objekt Type #1 Open Loop Sensor
Inputs/outputs Type Value range Default Description
nvoSpeed SNVT_rpm
(102)
0...65.534,
0xFFFF
X Measured absolute speed
nvoAlarm SNVT_a-
larm_2 (164)
X Option
nvoError* uint (1 Byte) 128 – 255, 0
invalid
X 128 no fault > 128 fault code
table
nvoRelais SNVT_switch
(95)
.value 0...200,
255
.state 0,1
X
X
Fault output. In case of fault
.state = 1 and .value x 2 =
Fault code
nviSpeedSelect SNVT_lev_-
disc (22)
0..2 0 ST_OFF (0): nciSpeed1
ST_LOW (1): nciSpeed2
ST_MED (2): nciSpeed3
nciEnable SNVT_lev_-
disc (22)
ST_ON,
ST_OFF
ST_OFF Fan blocked
ST_ON Fan enabled
nciMaxSpeed SNVT_rpm
(102)
0...65.534,
0xFFFF
1100 Maximal Speed
nciMinSpeed SNVT_rpm
(102)
0...65.534,
0xFFFF
0 Minimal Speed
nciSpeed1 SNVT_lev_-
cont (55)
.value 0..200,
255
0 Operating point 1 (day)
nciSpeed2 SNVT_lev_-
cont (55)
.value 0..200,
255
0 Operating point 2 (night)
nciAutoNight SNVT_lev_-
disc (22)
ST_ON,
ST_OFF
ST_OFF Internal interval
timer blocked
ST_ON Internal interval timer
operational
nviTime SNVT_ti-
me_stamp
(84)
System time
nciNightSrt SNVT_ti-
me_stamp
(84)
Night operation start time
nciNightEnd SNVT_ti-
me_stamp
(84)
Night operation end time
nvoContTemp** uint (1 Byte) 0..255 X Option
nvoPowerOut SNVT_switch
(95)
.value 0...200,
255
.state 0,1
X Power requirement (in %)
nvoVisual*** struct_visual Summary of important nvo for
faster queries
nvoParaResp*** SNVT_preset
(94)
To allow easier / extended
configuration with ZIEHL-
ABEGG software and installa-
tion devices
viParaReq*** SNVT_preset
(94)
nciSpeed3 SNVT_lev_-
cont (55)
.value 0..200,
255
0 Operating point 3 (holiday)
nciOperationMode SNVT_lev_-
disc (22)
0..2 0 ST_OFF (0): Static operation
with nciSpeedx
ST_LOW (1): Dynamic opera-
tion with nviSpeedRel
ST_MED (2): Dynamic opera-
tion with nviSpeedAbs
nviSpeedRel SNVT_lev_-
cont (55)
.value 0..200,
255
nciSpeed1 Dynamic rotational speed
specification, relative
nviSpeedAbs SNVT_rpm
(102)
0...65.534,
0xFFFF
nciSpeed1
abs.
Dynamic rotational speed
specification, absolute
Operating Instructions Connection box ECblue (LON) Electrical installation
