4 Mounting
•
Before installation remove the device from the packing and check for any possible
shipping damage!
•
Assemble the device on a clean and stable base. Do not distort during assembly! Use
the appropriate mounting devices for proper installation of the unit!
•
Use the templates printed on the device packing to mark the fastening bore holes.
•
The pressure measuring depends on position, therefore the mounting must be made
vertical and as possible on a vibration-free place (cable inlet and pressure connec-
tions down).
•
The pressure line´s connection should be with plastic-hose (in building), inside diam-
eter 4 / 5 mm. For a firm hold of the hose, its inside diameter must be 1 mm smaller
than the outside diameter of the hose nozzle (step spigot 5 / 6 mm).
•
Remove the connection cover for mounting and electrical connection. Close the lid
again carefully before start-up (tightening torque of the lid screws 1.1 Nm).

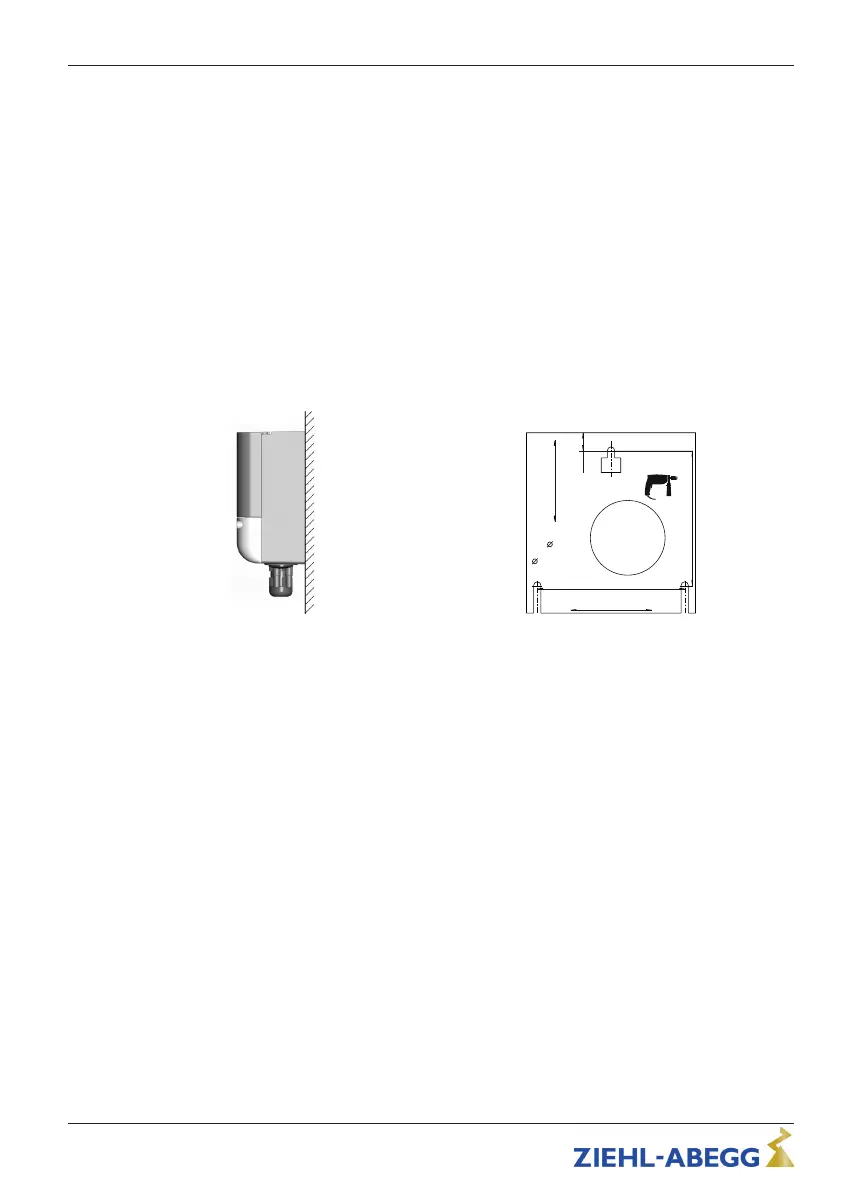

Vertical mounting
Drilling template on packing
Operating Instructions MPG-..V Mounting
L-BAL-E248-GB 1931 Index 003 Part.-No. 00163446
