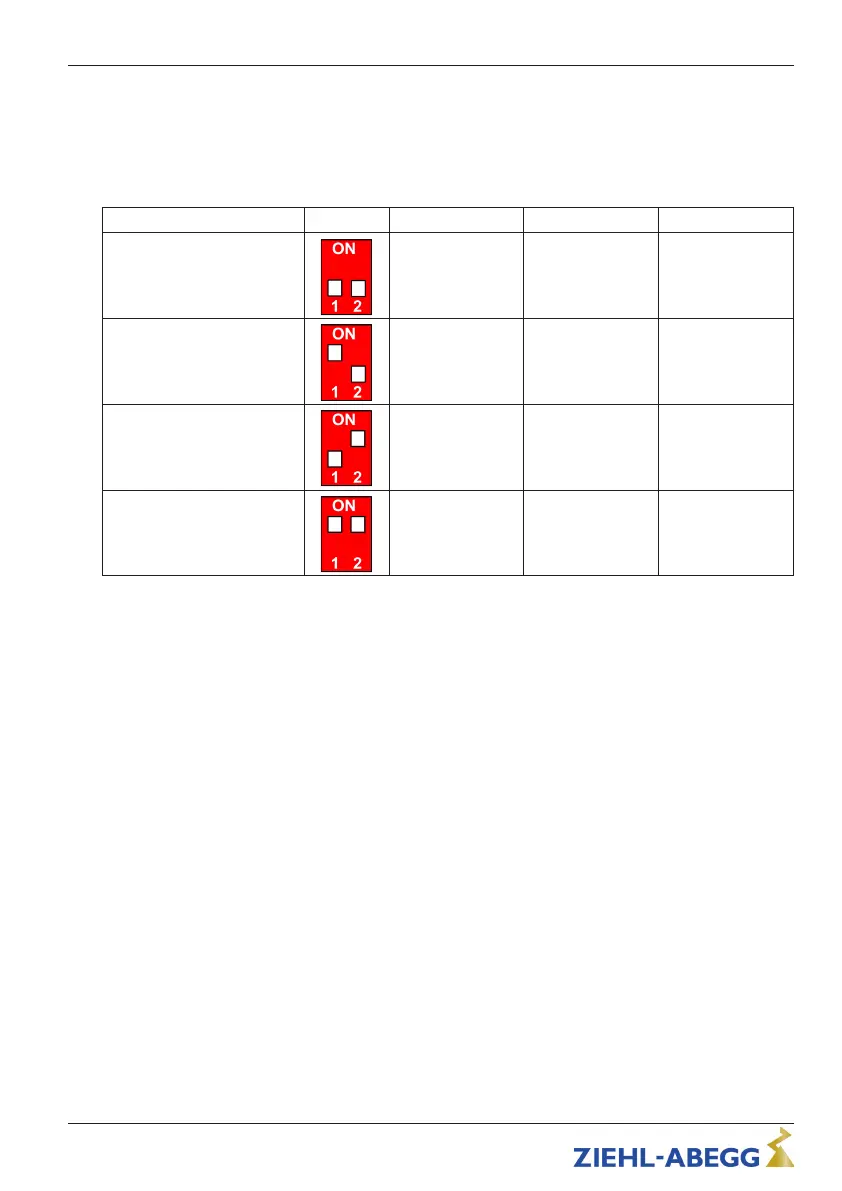

6 Select measuring range
The DIP switches of “S2” are set to the respective highest measuring range at the
factory, i.e. both DIP switches are down (1 + 2 = “OFF”).
As small as possible a measuring range must be chosen for maximum accuracy at
maximum resolution of the output signal (se Technical data / accuracy).
Type S2 MPG-200V MPG-1000V MPG-6000V
Measuring range 1
0...200 Pa
(0...0.8 in.wg)
0...1000 Pa
(0...4.0 in.wg)
0...6000 Pa
(0...24.0 in.wg)
Measuring range 2
0...150 Pa
(0...0.6 in.wg)
0...500 Pa
(0...2.0 in.wg)
0...4000 Pa
(0...16.0 in.wg)
Measuring range 3
0...100 Pa
(0...0.4 in.wg)
0...300 Pa
(0...1.2 in.wg)
0...3000 Pa
(0...12.0 in.wg)
Measuring range 4
0...50 Pa
(0...0.2 in.wg)
0...200 Pa
(0...0.8 in.wg)
0...2000 Pa
(0...8.0 in.wg)
7 Zero point calibration
If the sensor sends an output signal > 0 V in the pressureless state, a zero point
calibration is possible with the button “S1”.
This may be necessary, for example, in case of heavy thermal fluctuations in the sensor
environment or non-vertical mounting.
Procedure
1. Pull off the pressurised hoses.
2. Connect voltage supply (U
S
and GND).
3. Keep button S1 pressed for 3 seconds and then release it.
✓ The LED V1 lights permanently for 3 seconds until zero point calibration is completed
then it flashes again every 2 seconds.
✓ Measure the output signal, nominal = 0 V. Re-connect the pressurised hoses.
Operating Instructions MPG-..V Select measuring range
L-BAL-E248-GB 1931 Index 003 Part.-No. 00163446
7/12
