1. Tighten the centre hole nut.
2. Tighten the hose clamps and make sure that both clamps are set at the
same height. This is important.
3. Tighten the upper bracket screws.
4. Tighten the lower bracket screws.
5. Tighten the screws next to the hose clamps.
Check that the distance between the drive wheel and the tyre is still 2-3 mm,
the clamping screw should not yet be tightened. If the mudguard is touching
the tyre, adjust as shown in image 6.

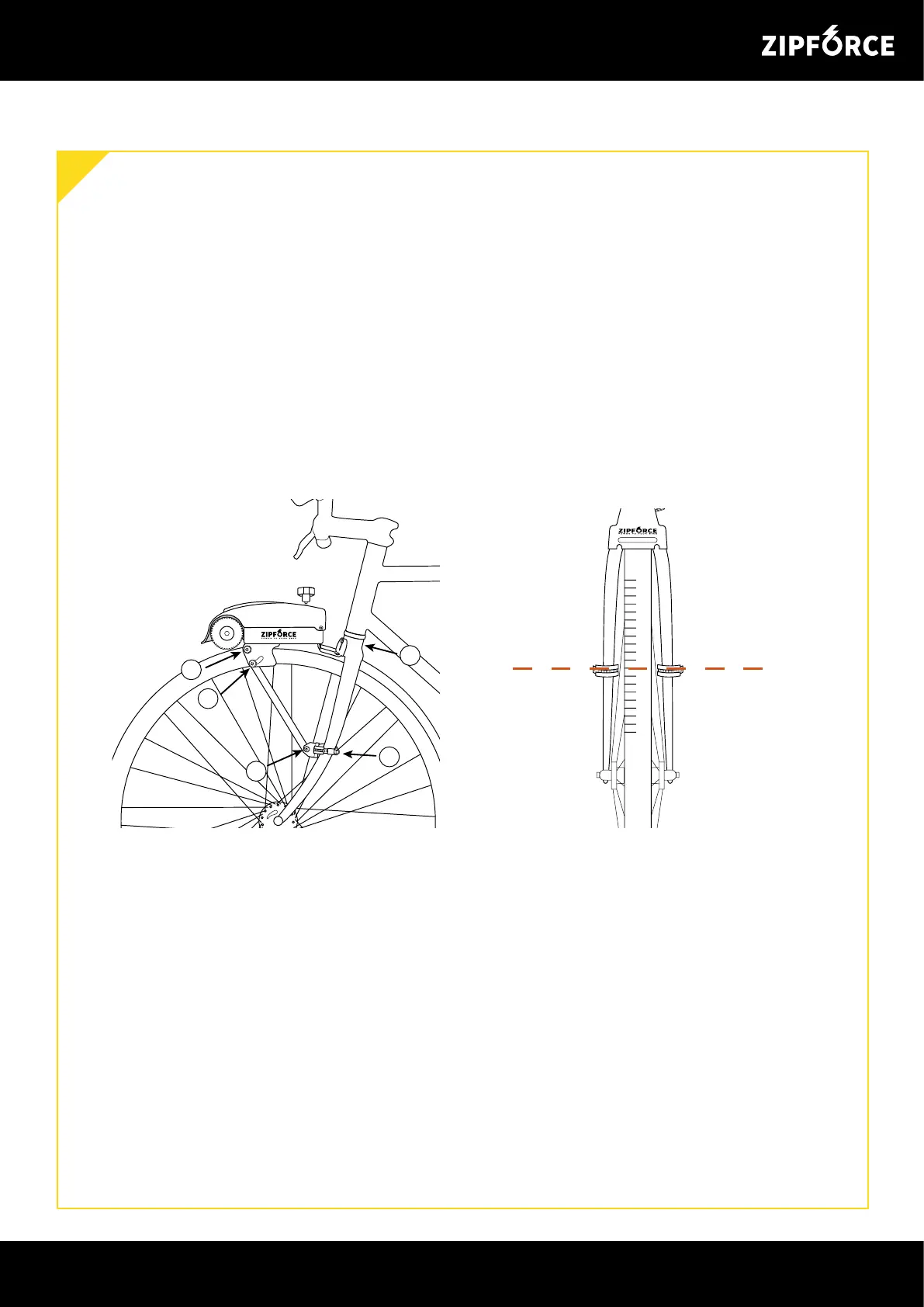

TIGHTEN BRACKET SCREWS AND HOSE CLAMPS
1.
2.
3.
4.
5.
It is important that both
hose clamps are set at
the same height.
