ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with
the product.
Prepare sufficient space for the assembly operation. It is advisable to assemble the product with
another person because of the weight of some elements.

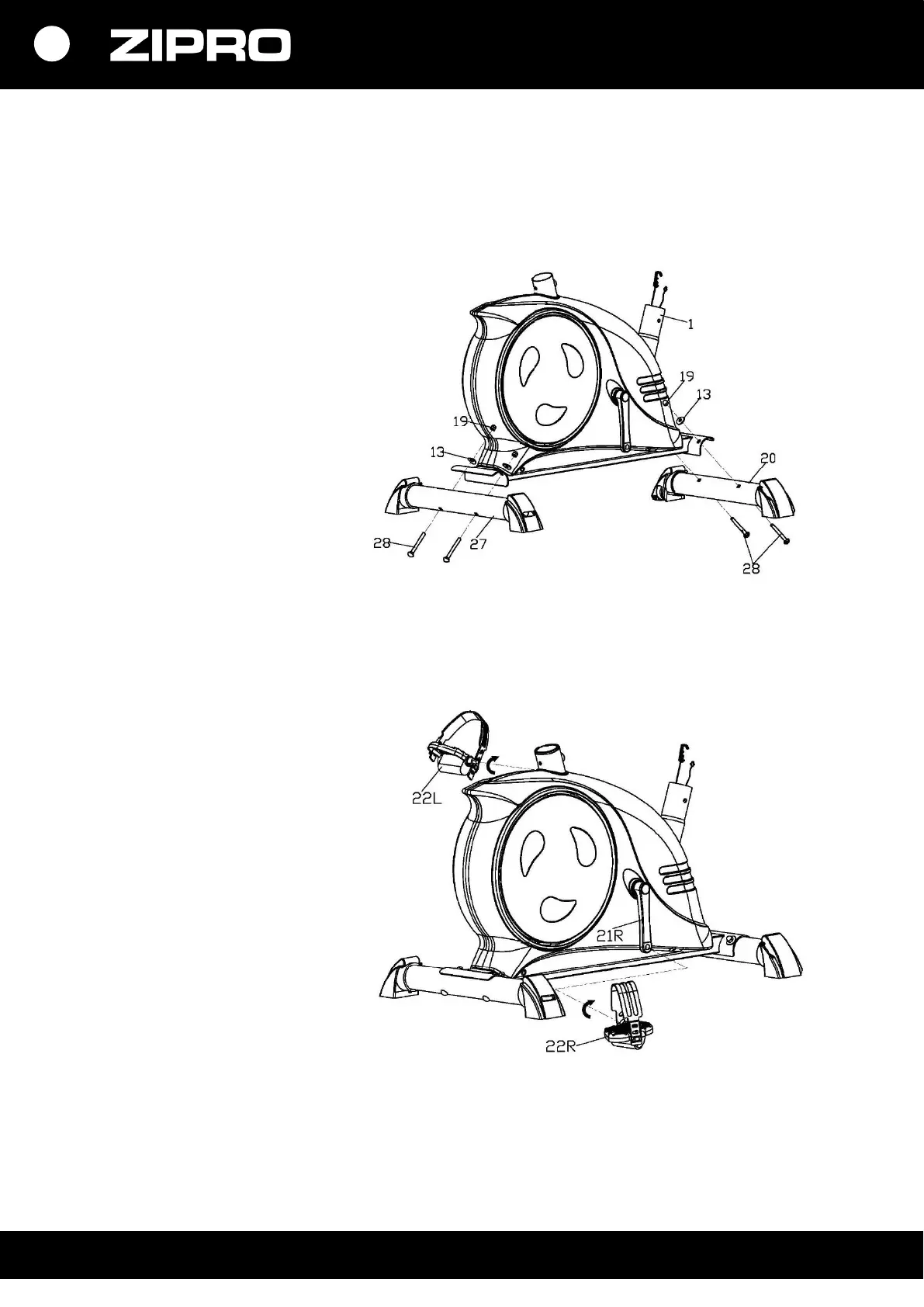

1. Install the front and rear base
Fix the front (20) and rear base
(27) to the main frame (1) using
bolts (28), curved washers (13),
and nuts (19).
ATTENTION! Remove any plastic
or cardboard safety inserts before
assembly.
2. Install the right and left pedal
Screw the right and left pedal
(22L/R) to the crank (21L/R). Screw
the right pedal bolt (22R) on
clockwise and the left pedal (22L)
bolt counterclockwise.
Note: The right pedal is marked ‘R’
and the left pedal is marked ‘L’.
