6.2.3 Rear
The gas inlet and outlet, the analog output, the RS232-interface and the
power switch are located on the rear panel. The line cord is permanently
fixed with the device. It cannot be disconnected.

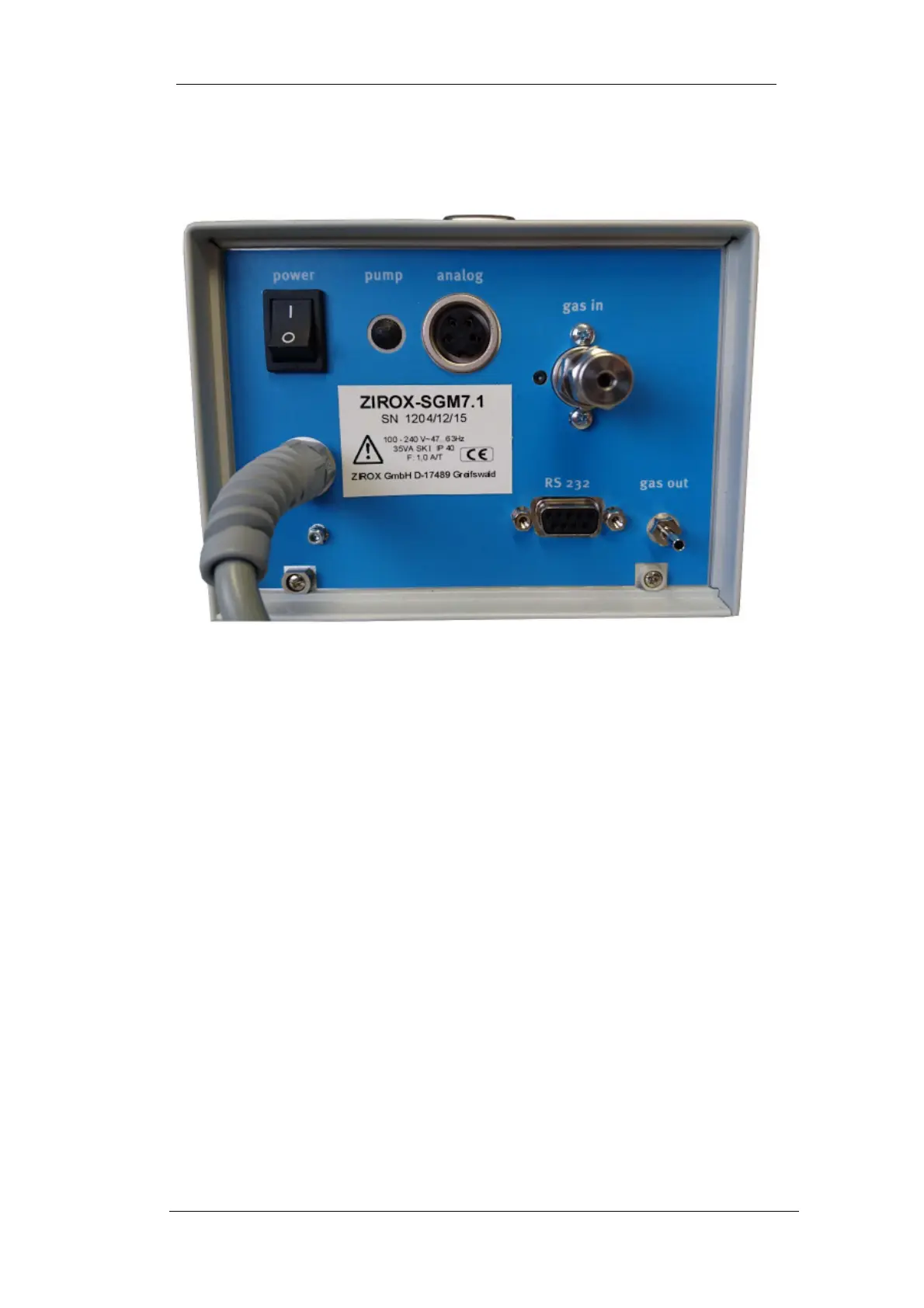

Fig. 5: Rear of the SGM7
