Lock Connection
12V DC
GND
Sensor
Sensor
12V DC
GND
GND
12V DC
Sensor
Sensor
GND
12V DC
FR107
FR107

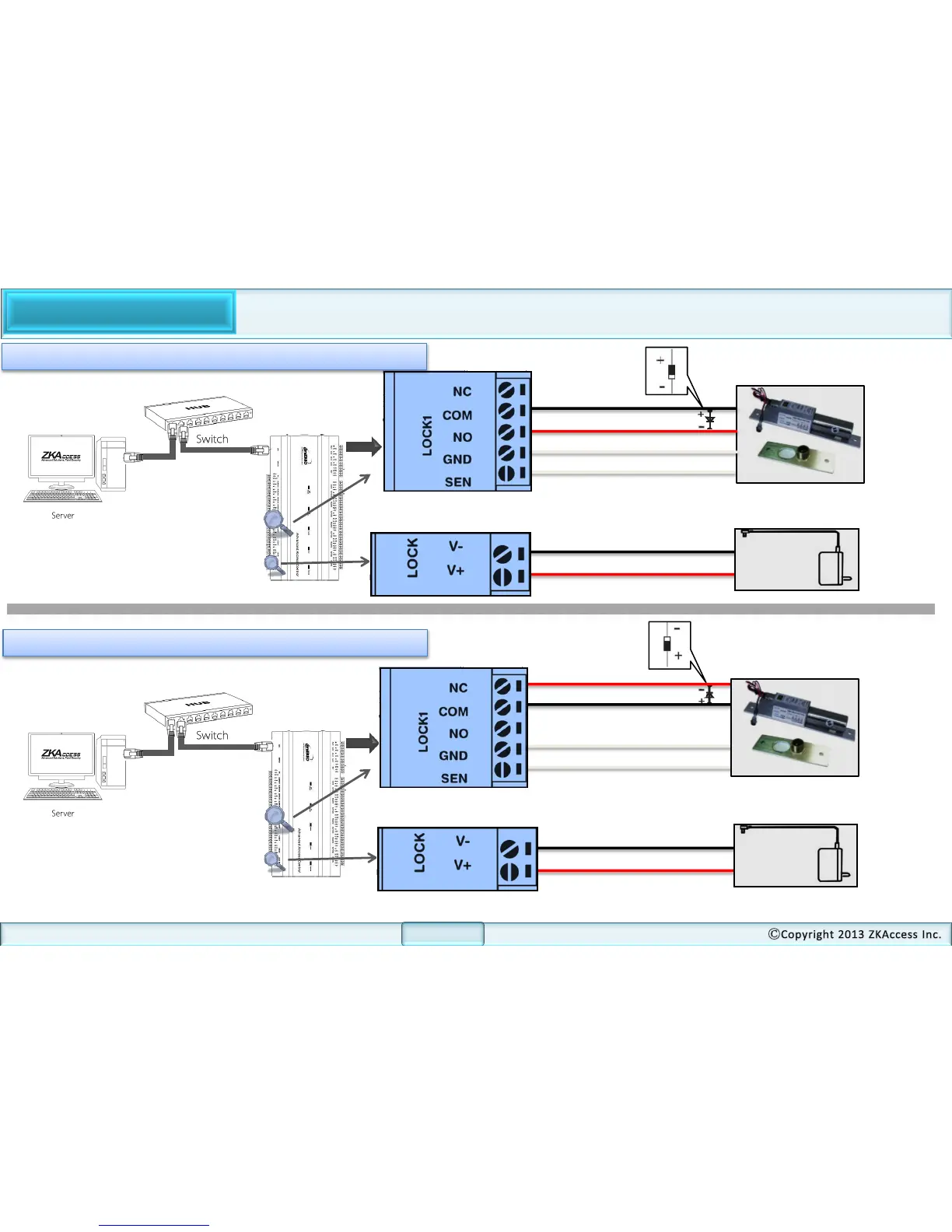

For Normally Open -Lock powered from panel power supply
For Normally Closed -Lock powered from panel power supply
