ZKaccess Inbio460 User Manual

6

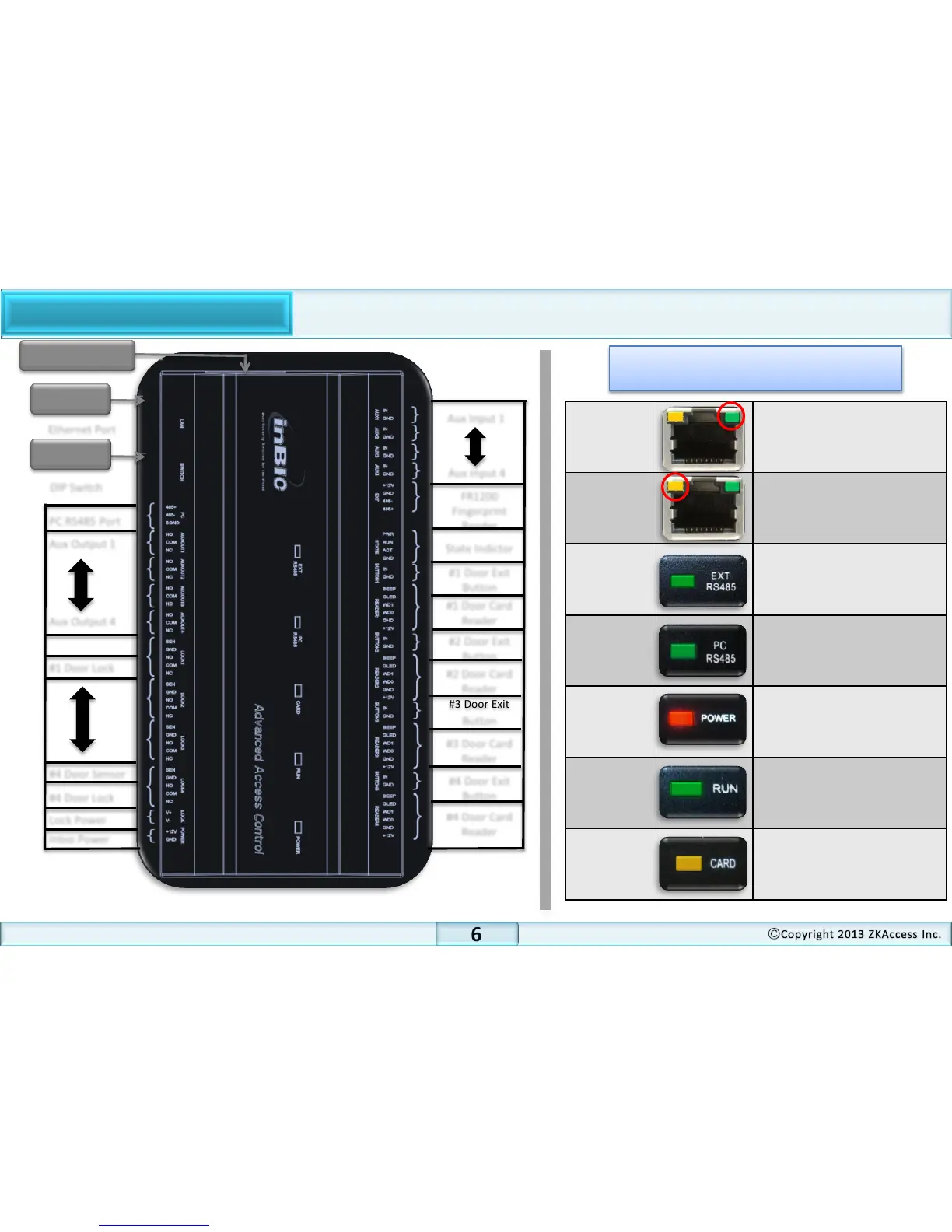

Product PIN Diagram
#4 Door Card
Reader
#4 Door Exit
Button
#3 Door Card
Reader
#3 Door Exit
Button
#2 Door Exit
Button
#2 Door Card
Reader
#1 Door Card
Reader
#1 Door Exit
Button
State Indictor
FR1200
Fingerprint
Reader
Aux Input 4
Aux Input 1
SD Card Slot
LINK LED
ACT LED
Ethernet Port
DIP Switch
PC RS485 Port
Aux Output 1
Aux Output 4
#1 Door Lock
#4 Door Sensor
Lock Power
Inbio Power
LED indicators
LINK
(Green)
LED solid green indicates
TCP/IP communication is
normal
ACT
(Yellow)
Flashing LED indicates data
communication is in progress
EXT RS485
(Yellow &
Green)
Flashing LED indicates data
communication in progress
PC RS485
(Yellow &
Green)
Flashing LED indicates data
communication is in progress
POWER
(Red)
Flashing LED indicates the
panel is powered on.
RUN
(Green)
Flashing LED indicates that
panel is in normal working
mode
CARD
(Yellow)
Flashing LED indicates that
the card is read by the panel.
#1 Door Sensor
#4 Door Lock

ZKaccess Inbio460 Specifications

General

Brand	ZKaccess
Model	Inbio460
Category	Control Panel
Language	English
