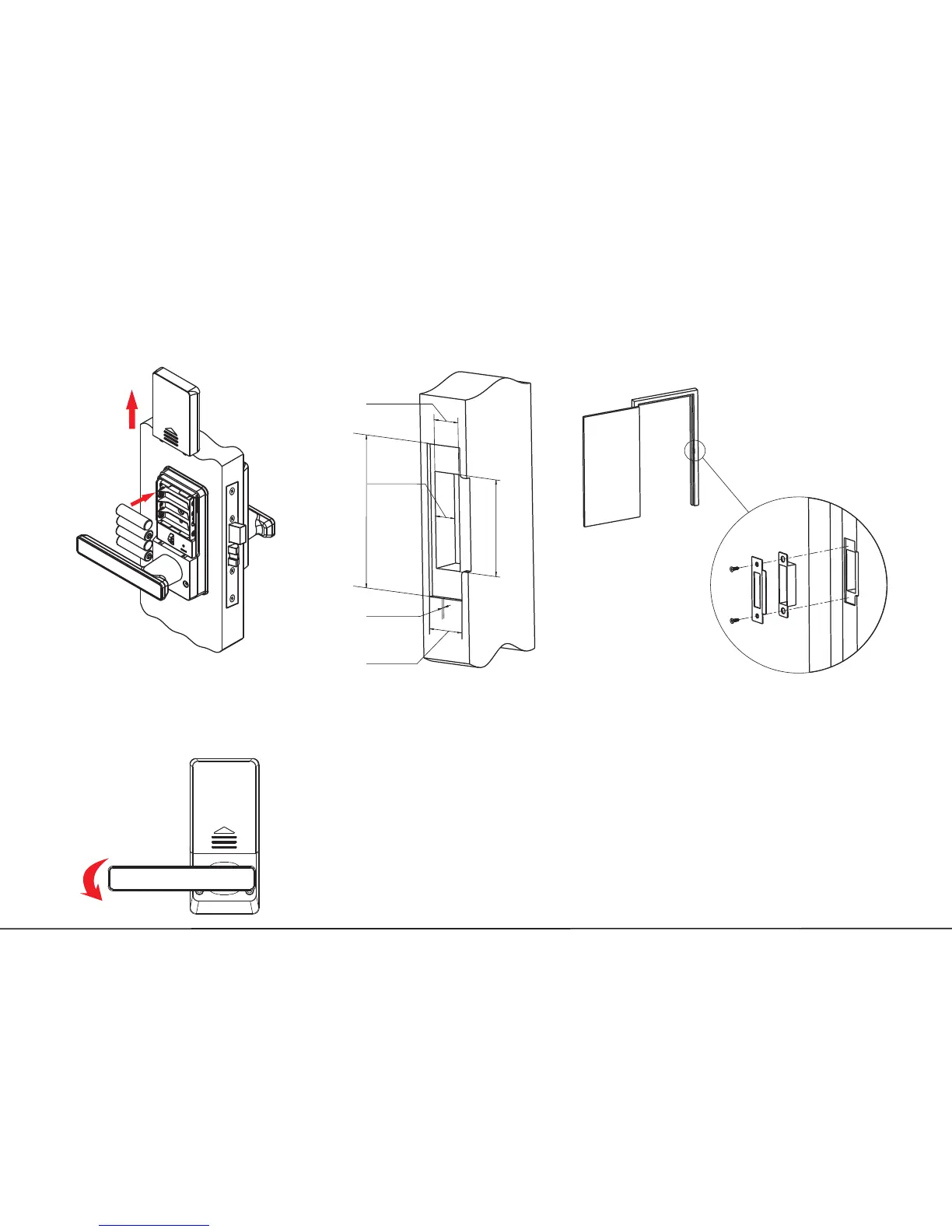

6. Insert batteries.
E
G
F
7. Mark and drill holes for the strike.
8. Test the lock by rotating the back handle and using the mechanical
key (A).
Note : When the door is l ocked and the clutch is idle, the front handle
can be turned, but the door will remain locked.
9
[43/8"]
24 mm
[15/16"]
111 mm
22 mm
[55/64"]
29 mm
[19/64"]
3mm
[1/8"]
[43/8"]
72 mm
