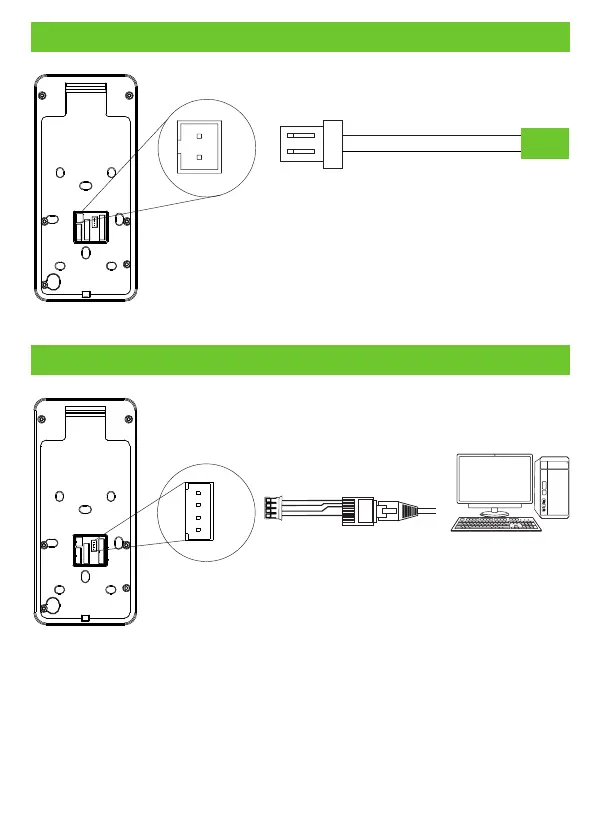

Power Connection
Ethernet Connection
12V
GN
D
12V DC
GND
Recommended power supply
1) 12V ± 10%, at least 3000mA.
2) To share the power with other devices, use a power supply
with higher current ratings.
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK].
Note: In LAN, IP addresses of the server (PC) and the device must be in the
same network segment when connecting to ZKBioAccess software.
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
8
7
6
RJ 45
5
4
3
2
1
RX
T
X
+
TX-
RX
-
ZKBioAccess
5
