8. Connected with Power

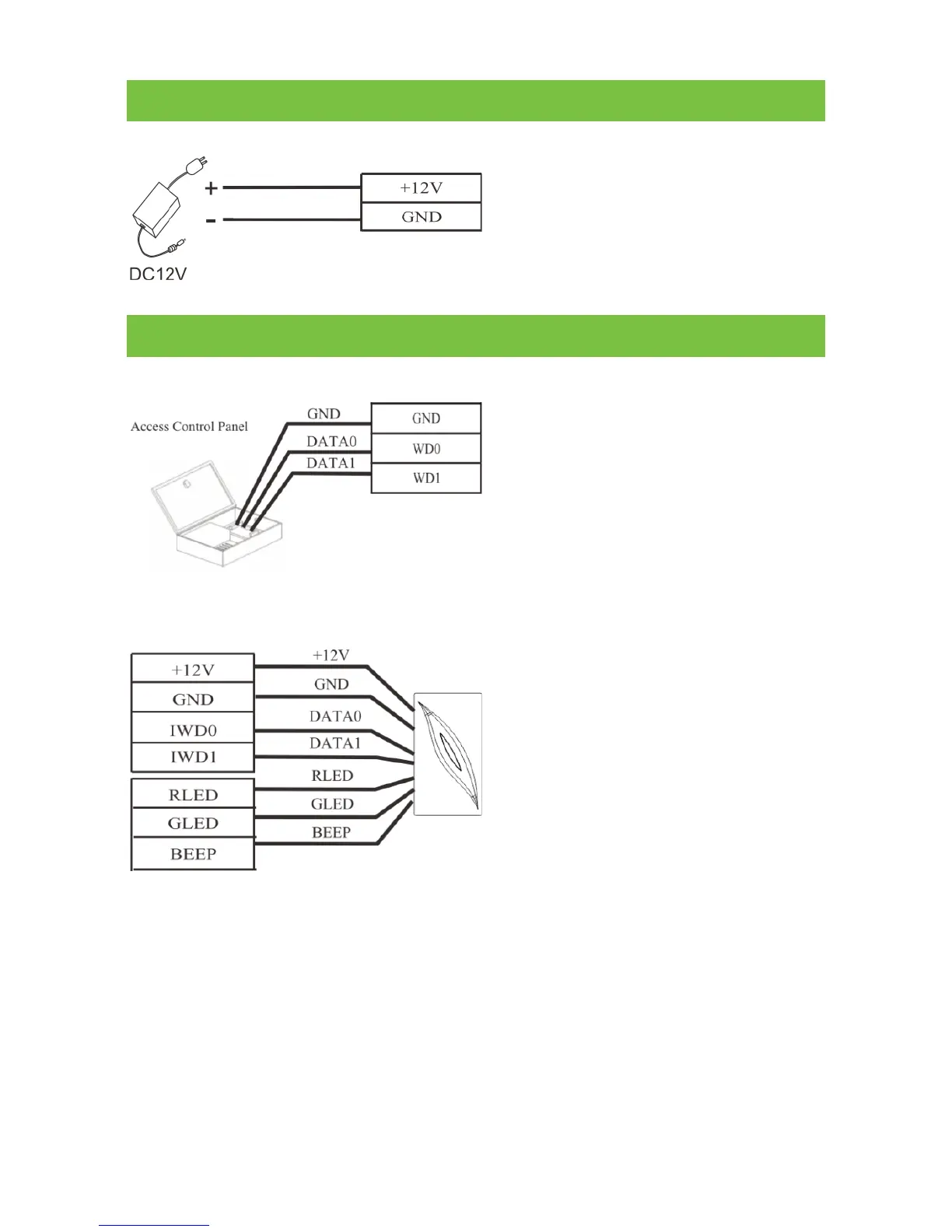

9. Wiegand Output & Input
1) Wiegand Output
2) Wi
egand Inpu
t
No
te:
(1)
P
lease keep the distance between the device and Access Control or Card
Reader less than 90 meters (Please use Wiegand signal extender in long
distance or interference environment).
(2)
T
o keep the stability of Wiegand signal, connect the device and the Access
Control or Card Reader in same ‘GND’ in any case.
Input DC12V, ≤110mA (≤80mA
standby)
Positive is connected with +12V,
negative is connected with GND
(do not reverse the polarities).
The device supports standard
Wiegand 26/34 output, as a
reader device it has a very
good compatibility.
The device has the function of
Wiegand signal input. It
supports to connect with an
independent card reader.
They are installed each side of
the door, to control the lock
and access together.
