(1) The system supports NO LOCK and NC LOCK. The NO LOCK (normally open
by power on) is connected with NO terminal, and the NC LOCK is connected
with NC terminal.
(2)
T
o prevent the generation of self-inductance EMF which would affect the
system, when the electrical lock is linked to the Access Control System, it is
required to connect one FR107 diode (equipped in the package, do not reverse
the polarities) in parallel in order to release the self-inductance EMF.

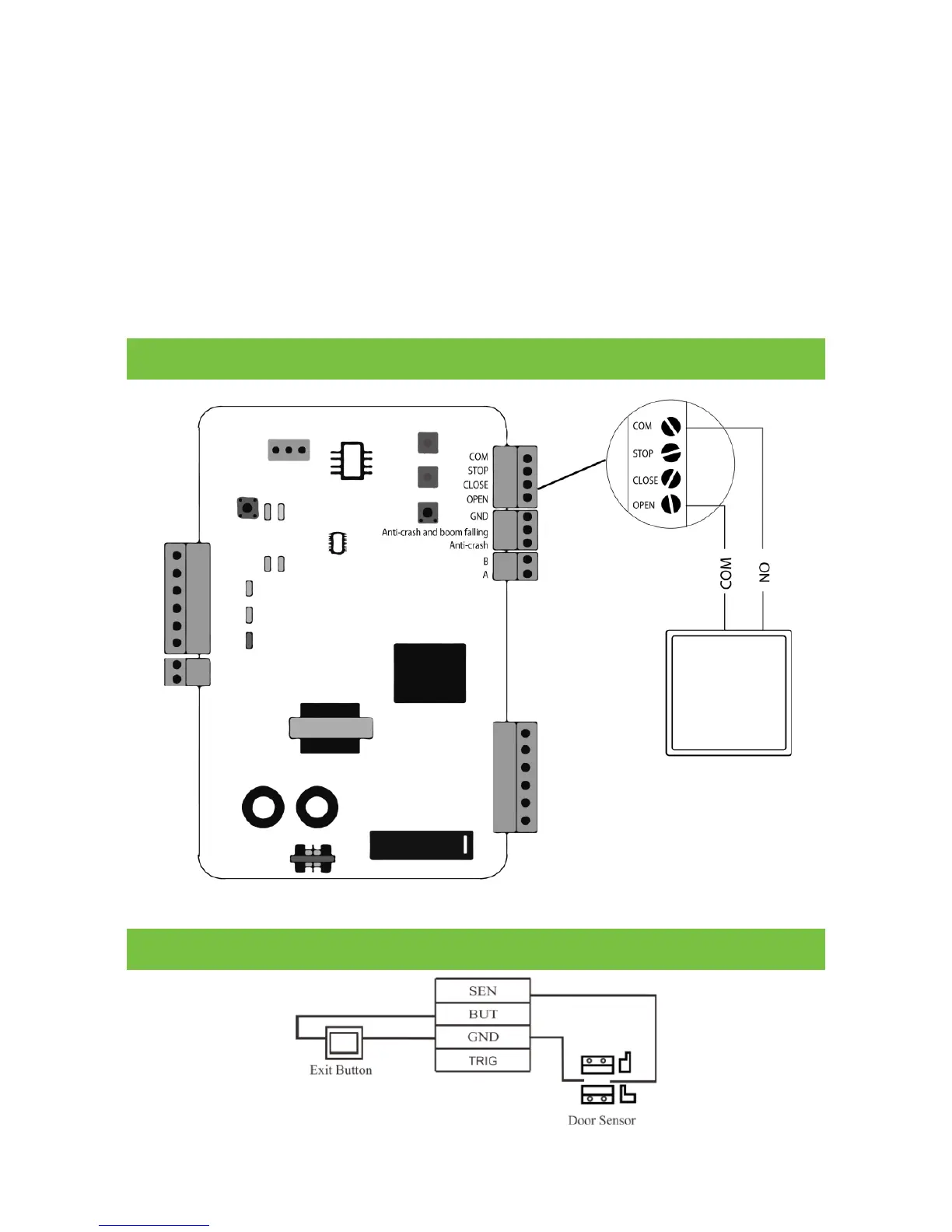

6. Barrier Connection
7. Connected with other parts
