Industrial high performance CAN interface card
USBCAN-4E-U User Manual
1.2 Product Appearance

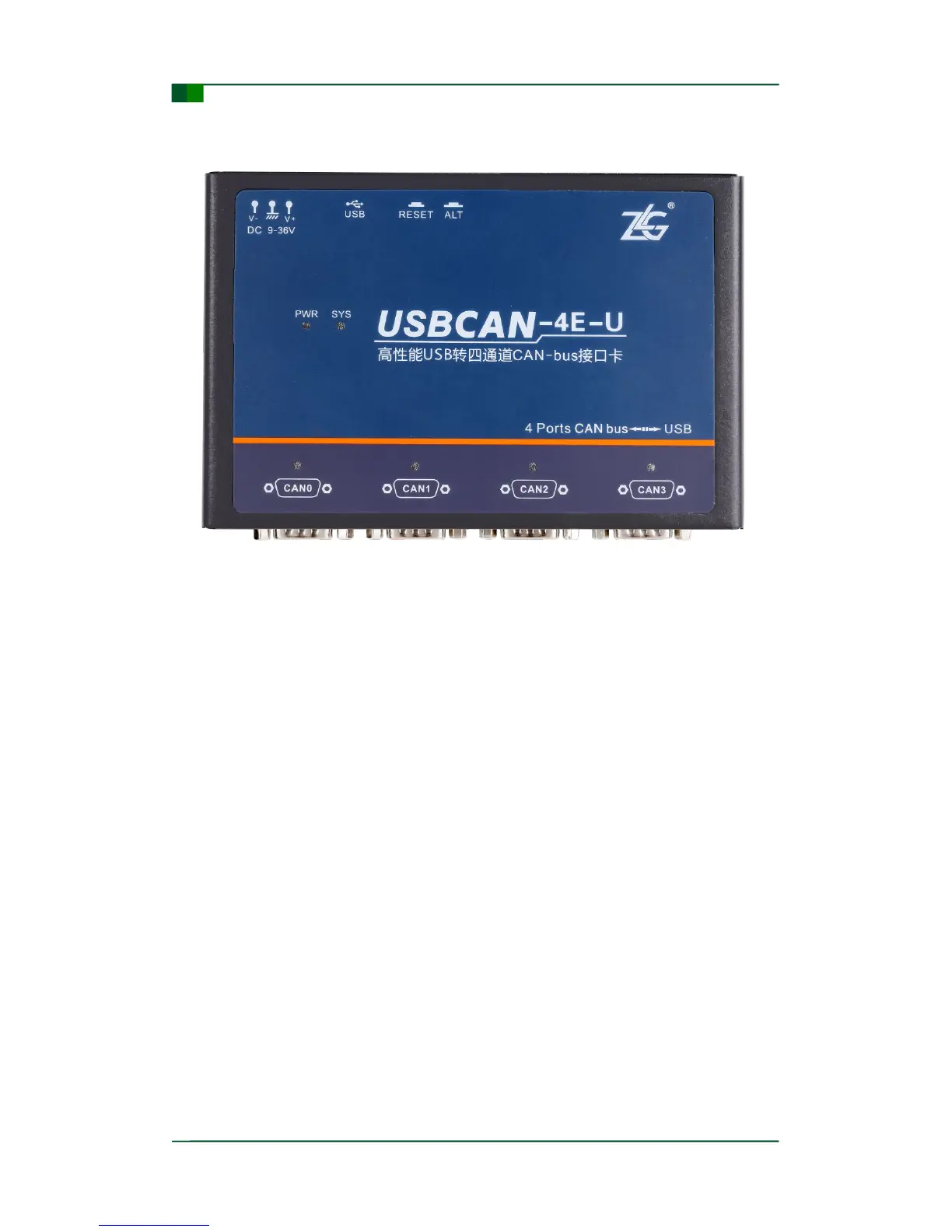

Figure 1- 1: USBCAN-4E-U
1.3 Specifications
 PC interface is compliance with USB2.0 full speed specification.
 It supports CAN2.0A and CAN2.0B protocols and conforms to ISO/DIS11898
specification.
 It is integrated with 1-4 channels CAN-bus interface.

Programmable CAN-bus communication Baud rate in the range of 5Kbps ～ 1
Mbps.
 The power supply can be provided via the USB Bus or external power supply
(DC+9V~+36V，200mA).
 The CAN-bus interface is provided with electrical isolation; and the isolation
voltage is 3500VDC.
 Maximum receiving data frame traffic: 5000 fps (extended frame).
 It supports Win2000, WinXP and other Windows operating systems.
 It supports ZLGCANtest test software.
 It is small and supports plug and play.

Size：(Length)mm * (Width)mm * (Height)30mm.
